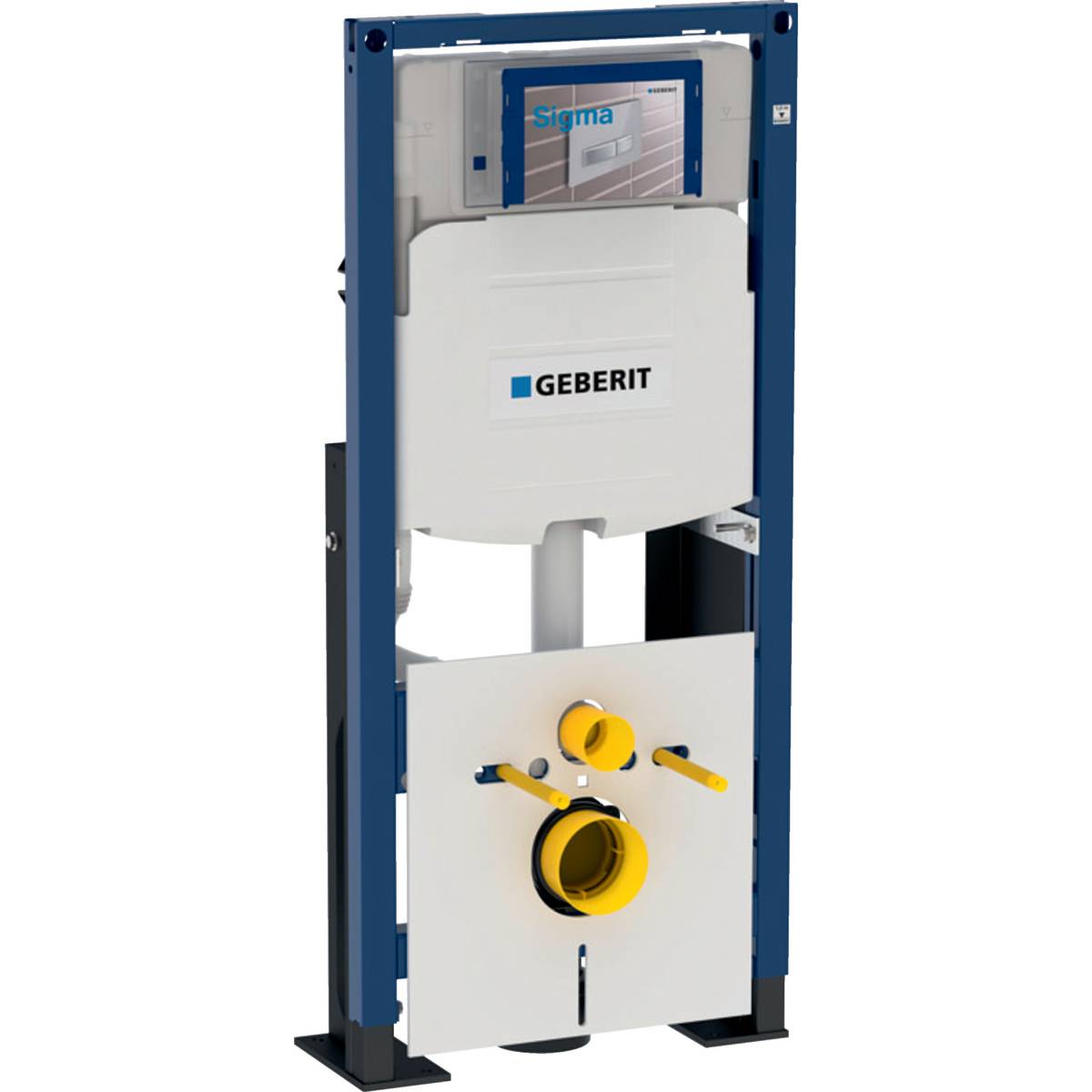

Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, freestanding, reinforced

Verified by manufacturer 10 months ago

Geberit Sales Ltd

Element for wall hung WC frame with Sigma concealed cistern.

Jump to:
+44 (0)1926 516800 www.geberit.co.uk

Application

Suitable:

  • For drywall construction.
  • For freestanding installation on concrete floors.
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
  • For wall-hung WCs with large projection up to 70 cm.
  • For floor constructions 0–18 cm.

Description

Element for wall hung WC frame with Sigma concealed cistern.


Features and benefits:

  • Self-supporting frame, powder-coated.
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
  • Leg supports protected against corrosion.
  • Feet adjustable 0–18 cm.
  • Non-slip leg supports.
  • With large foot plates, reinforced, for raised power supply in floors.
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm.
  • Concealed cistern with front actuation.
  • Concealed cistern, fully insulated against condensation.
  • Immediate post flush possible with factory setting.
  • Tool-free installation and maintenance work on concealed cistern.
  • Water supply connection on the rear or top centre.
  • Protection cover box for service opening protects against moisture and dirt.
  • Protection box for service opening can be cut to length.
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets.
  • With fastening option for electrical connection.
  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame.
  • Please note that this frame can only be used on a concrete floor. It is fastened directly to the concrete floor (and also not on the floor structure above the concrete floor) with heavy-duty anchors. The force is then added to the building construction meaning there is no need for the support of the wall construction.


Scope of delivery:

  • Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel.
  • Protection box for service opening.
  • Connection set for WC, ø 90 mm.
  • Two protection plugs.
  • Connection bend 90° made of PE-HD, ø 90 mm.
  • Adaptor socket made of PE-HD, ø 90 / 110 mm.
  • Two protection plugs.
  • Two threaded rods M12.
  • Fastening material.
  • Six heavy-duty dowels M8.
  • Sound insulation set.

General information

Finish

Powder-coated

Shape

Rectangle

Size

Height x width x thickness.

1120 x 500 x 120 mm

Uniclass

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/66 Pre-plumbed frame system

N13/500 Pre-plumbed frame system

Specification data - Pre-plumbed installation frames

Form

Support frames with cistern.

Size

Height x width x thickness.

1120 x 500 x 120 mm.

Accessories

Not required.

Geberit Duofix set of wall anchors for single and system installation.

Geberit Duofix fastening set for stud clearance 50–57.5 cm.

Geberit concealed outlet for drywall and solid wall construction.

Geberit set of support brackets for WC ceramic appliances with small contact surfaces.

Geberit Duofix set of wall anchors for single installation.

Geberit Duofix set of wall anchors for single installation, corner construction.

Fire protection set for Geberit Duofix element for wall-hung WC.

Reinforcing sheet for drywall construction, for Geberit Duofix frame for wall-hung WC, width 50 cm.

Flush volume

5.8L and 3L (factory setting).

  • Flush volume small, adjustment range (2–4L).
  • Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5L.

PressureRange

0.1-10 bar (flow pressure).

MaximumOperatingTemperature

+25°C.
