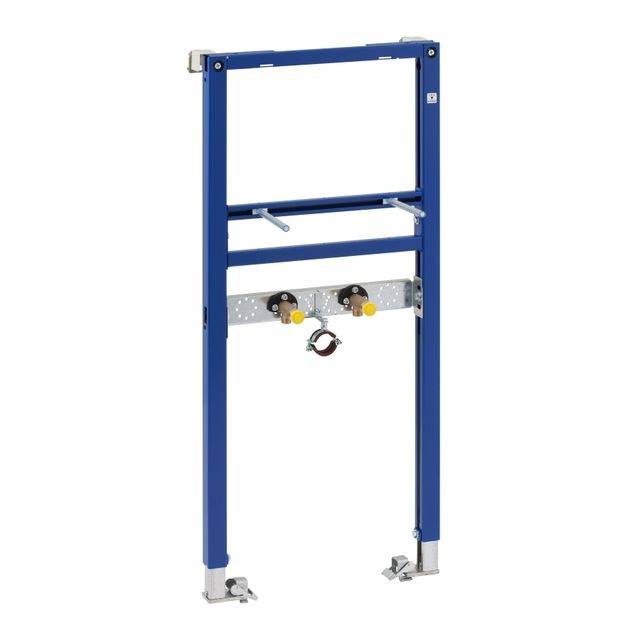

Duofix Basin Frames
Verified by manufacturer over a year ago
A range of frames for wash basins.
Application
- For installation of a wall-hung washbasin with bolt fixings set at between 50 and 380 mm centres (with accessories 111.868.00.1 fastening distance can extend from 380–580 mm).
- For a screed of 0–200 mm.
Description
Application:
- For installation of a wall-hung washbasin with bolt fixings set at between 50 and 380 mm centres (with accessories 111.868.00.1 fastening distance can extend from 380–580 mm).
- For a screed of 0–200 mm.
Characteristics:
- Frame with 9 mm diameter holes for fastening in wood frame construction.
- Washbasin fastening distance: 50–380 mm.
- Galvanized leg supports, steplessly adjustable: 0–200 mm.
- Self-supporting.
- Frame with 'C' profile 40/ 40 mm.
- Powder-coated frame, ultramarine blue.
General information
Uniclass | |
CAWS | N13/500 Pre-plumbed frame system |
Specification data - Pre-plumbed installation frames
Product Reference | 111.493.00.1Guidance for specification option: Frame for washbasin H112–130, for wall mounted tap. 111.494.00.1Guidance for specification option: Frame for washbasin H98/82. 111.495.00.1Guidance for specification option: Frame for washbasin H112. |
