DUG Domestic Services Disposal Sink - G22041N
Verified by manufacturer over a year ago

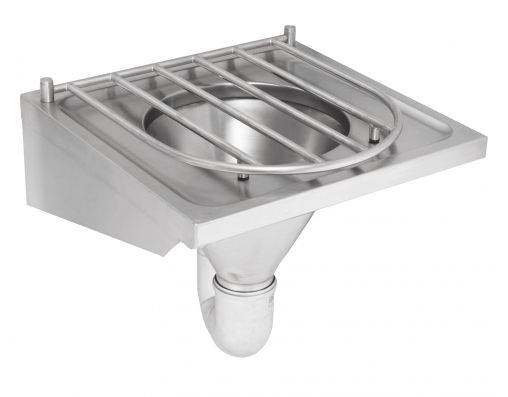

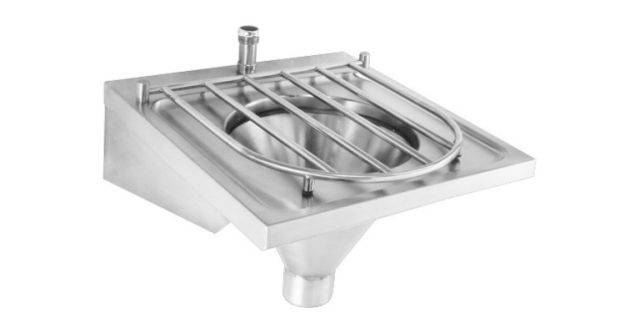

Dug domestic services disposal sink with back inlet - wall hung.
Application
Hospital sluice sink wall hung domestic pattern disposal units designed for duct mounting.
Description
Dug domestic services disposal sink with back inlet - wall hung.
Features and Benefits:
- The sluice hopper incorporates a 110 mm diameter outlet, which can accommodate a 'P' or 'S' trap.
- Suitable for plastic cisterns with stainless steel down-pipes for duct mounting.
- Cisterns have a nine litre capacity and are fitted with a 13 mm HP brass valve, plastic float and CP metal flushing lever handle.
- Cisterns should only be fed from a tank water supply and the flush volume is 9 litres.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Length | 600 mm |
Width | 600 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/386 Disposal units |
Product range |
Specification data - Janitorial sinks
Form | Wall hung unit. |
Finish and material | Satin finished, Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Options | Cantilever wall bracket.Guidance for specification option: Sold separately. Front leg support.Guidance for specification option: Sold separately. |
Product Reference | (G22041N) 207.0000.075 Guidance for specification option: Domestic services disposal unit DUG for duct mounted cisterns. (G22043N) 207.0000.076 Guidance for specification option: Domestic services disposal unit DUG for surface mounted cisterns. |
Sustainability data
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
