Duex Sports Mesh Fence/ Rebound/ SAPCA/ Sport and Play

Verified by manufacturer 1 month ago

1230 mm high

IAE Variant:

Double wire fence mesh.

Jump to:
+44 (0)1782 339320 Website

Application

Suitable for:

  • Running tracks.
  • Schools, colleges and universities.
  • Amenity areas.
  • Commercial businesses and industrial units.
  • New house buildings.
  • Retail outlets.
  • Theme parks.

Description

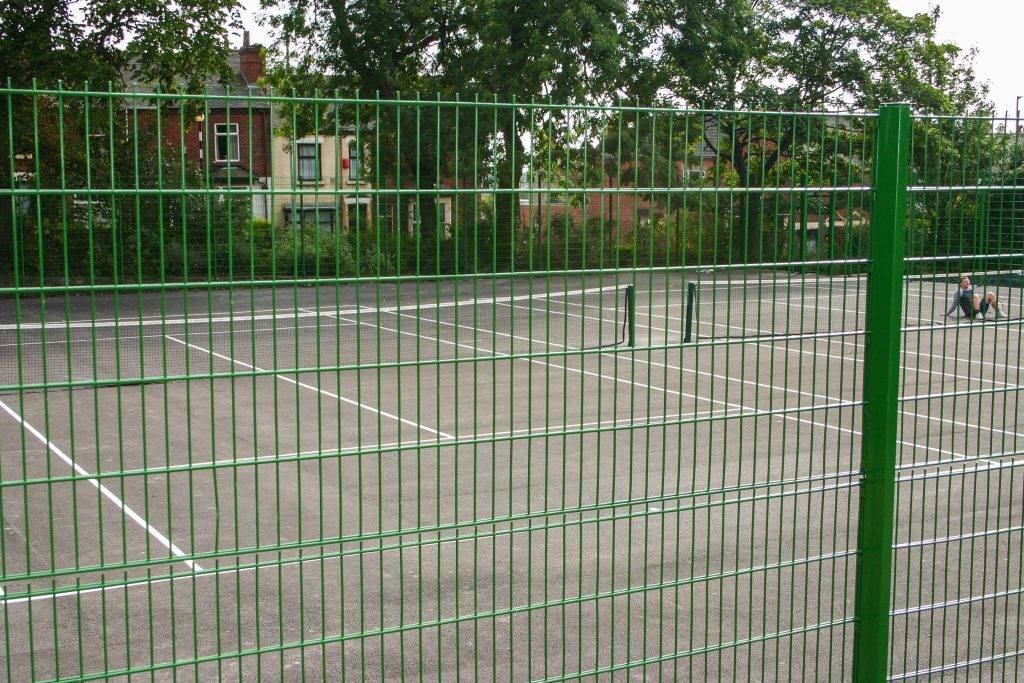

Duex® double wire mesh is traditionally used in a sports environment, but its rigid construction makes it effective for perimeter protection and demarcation for a number of other applications.


The strength within the panels is achieved by sandwiching a 6 mm vertical wire between rows of twin 8 mm horizontal wires spaced at 200 mm intervals. This mesh configuration ensures that the panels offer a high resistance to vandalism.


Duex® panels are supported by strong 60 x 60 mm steel box section posts, which can supplied with steel fixing clips and M8 security screws, or a strip clamp depending upon the application.


Features and benefits:

  • Galvanized and polyester powder-coated to BS 1722 and available in a choice of colours.
  • Security fixings included.
  • Medium level security.
  • Rigid double wire design.
  • Suitable for many applications.
  • Laser cut and robotically welded using modern folding and bending machines.

General information

Color

Green

Black

Other

Guidance for specification option:

RAL colours.

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Width

2506 mm

Height

1230 mm

1830 mm

2030 mm

2430 mm

3030 mm

Warranty description

Ten year

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/28 Open mesh steel panel security fencing

Q40/30 Proprietary fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/430 Proprietary fencing

Q40/126 Open mesh steel panel security fencing

Q40/125 Open mesh steel panel general purpose fencing

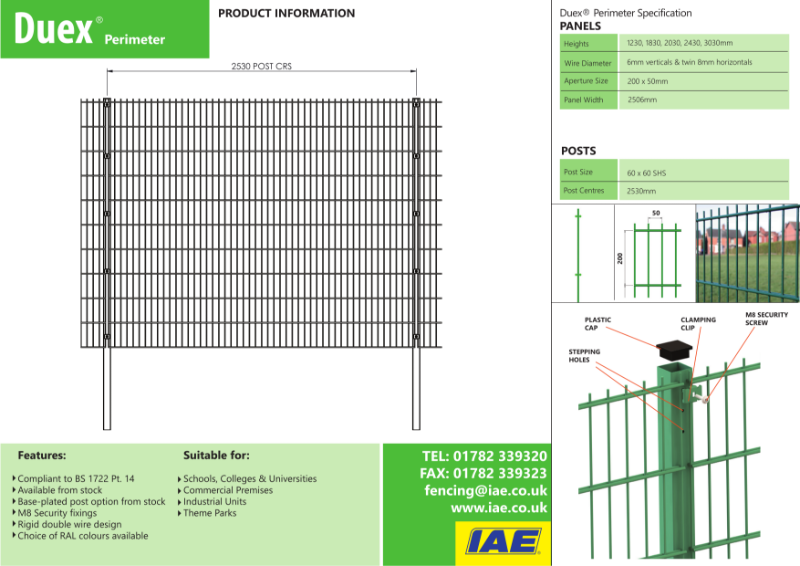

Specification data - Metal mesh panel fencing systems

Standard

To BS 1722-14.

Category

2.

Posts

60 x 60 mm steel box section.

Panels

Steel double wire mesh panels.

Site applied finishes

Galvanized and polyester powder-coated.

Guidance for specification option:

Polyester powder-coated to a choice of RAL colours. Contact manufacturer for details.

Manufacturer guidance

To BS 1722.

System accessories

Plastics post tops.

Clamping clip.

M8 security screw.

Stepping holes.

Gate.

Guidance for specification option:

Available to suit.

Base-plated post.

Guidance for specification option:

From stock.

Not required.

WireDiameter

6 mm (vertical); 8 mm (twin horizontal).

Aperture size

200 x 50 mm.

Post centres

2530 mm.

Dimensions

1230 x 2506 mm.

Manufacturer guidance

H x W.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/unit

Self declared

Recyclability

100
