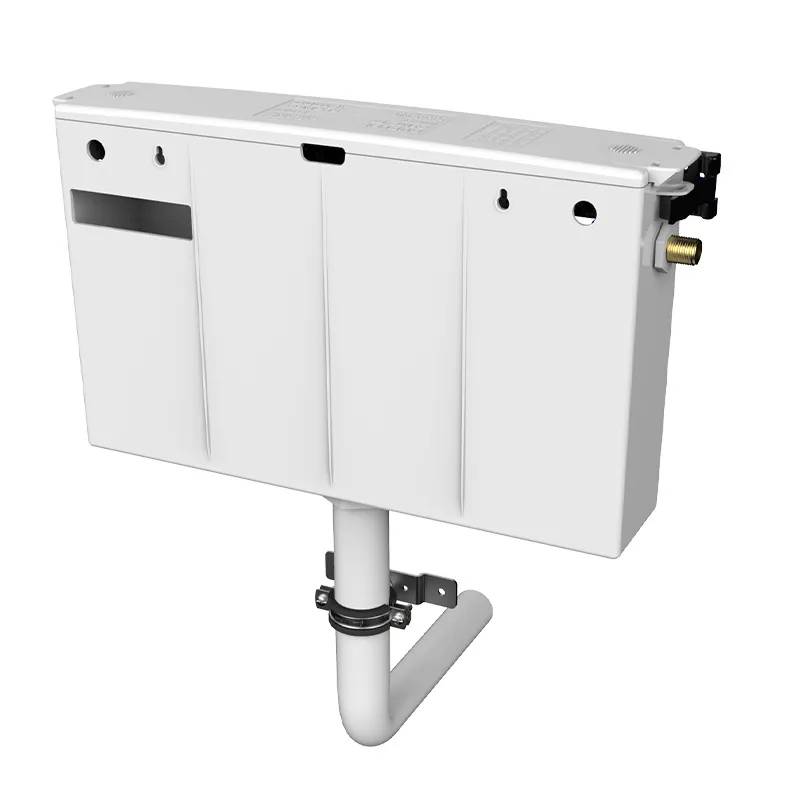

Dudley OSMO® T1 - WC cistern
Verified by manufacturer 3 months ago
377203 - Brass tail
377203 - Brass tail
WRAS
Certificate type
A pneumatic, dual flush concealed cistern.
Application
For domestic and commercial applications, designed for use with WC furniture and IPS panelling, including prefabricated bathroom PODS.
Description
A top access concealed reversible cistern with AXIS Technology™ creating multiple inlet and outlet options as standard for pod applications. Designed to be mounted on GRP, timber and steel framed pods.
Features and benefits:
- Easy top access with reversible SnapLock lid™.
- Factory assembled.
- Fluid category 5 cistern.
- Flush Pipe Stability System (FPSS™) with SureLock™ Bracket.
- Multiple flushing volumes: 6/4 – 5/3 – 4/2.6 L (alternative volumes upon request).
- Pneumatic push button/ plate can be installed up to 250 mm away from the cistern.
- WRAS Approved Dudley Hydroflo 7s Delay Fill Brass Tail Inlet Valve (Side or Bottom Inlet).
- WRAS Approved Dudley Niagara pneumatic flush valve.
- WRAS Approved Dudley Victoria cable flush valve.
General information
Color | White |
Finish | Gloss |
Material | High density polystyrene |
Shape | Rectangle |
Width | 550 mm Guidance for specification option: Depth: 110 mm. |
Height | 315 mm |
Warranty description | Five year Guidance for specification option: Lever operated. Three year Guidance for specification option: Pushbutton operated. |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC cisterns
Approval | Water Regulations Advisory Scheme (WRAS)-approved.Guidance for specification option: Dudley Hydroflo 7s Delay Fill Brass Tail Inlet Valve (Side or Bottom Inlet), Dudley Niagara pneumatic flush valve and Dudley Victoria cable flush valve. |
Standard | To BS EN 997. |
Form | Concealed. |
Operation | Push-button. |
Materials | |
Finish and colour | White. |
Capacity | 6/4 L dual flush.5/3 L dual flush.4/2.6 L dual flush. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Overflow | Internal overflow. |
Outlet | Bottom outlet.Guidance for specification option: 2" Centre outlet. |
Integral accessories | Brass tail connection. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
