Duct System: Solid Laminate Ducting
Verified by manufacturer 3 months ago
Duct panelling system with timber framework.
Application

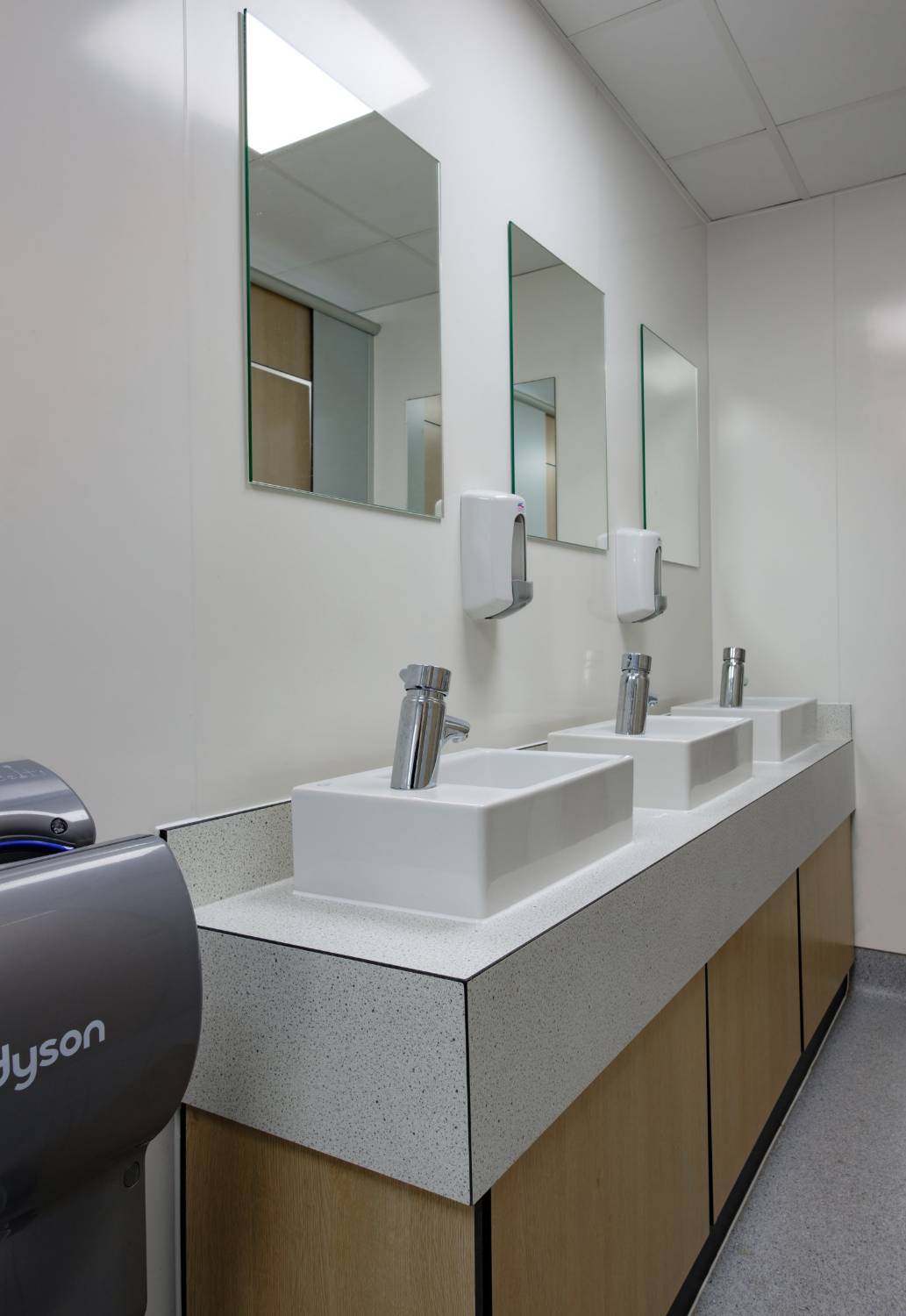

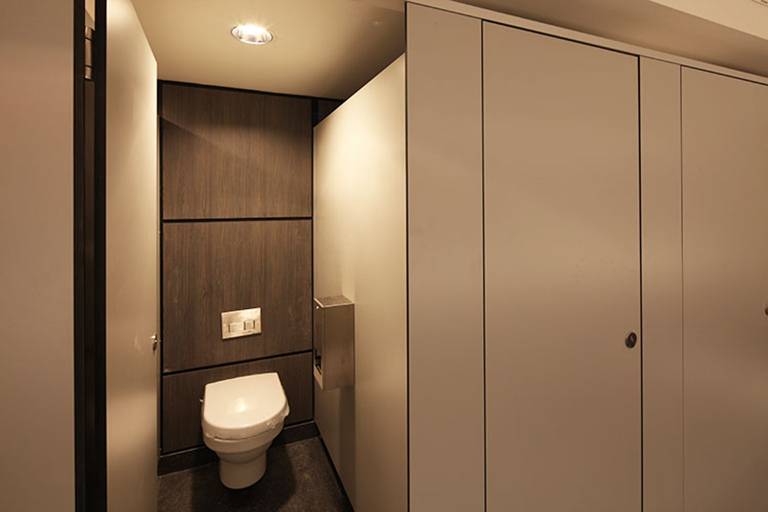

Suitable for public washrooms.
Description
Features and benefits:
- Panel manufactured from 12/ 13 mm solid grade laminate (SGL).
- Machine finished either with bevelled or crescent edge.
General information
Color | Manufacturer guidanceTo be confirmed from WW standard range. |
Finish | Manufacturer guidanceVarious options available. |
Material | Solid grade laminate (SGL) Manufacturer guidance12/ 13 mm SGL (Solid Grade Laminate also known as ‘Compact Laminate’), the edges are machine finished either with bevelled or crescent edges. |
Warranty description | One year Manufacturer guidanceFrom practical completion. |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only |
Specification data - Duct and wall panel lining systems
Panels | Depends on specification of sanitaryware. |
Fasteners | Supplied complete with corresponding flashgap laminate and Hafele push on/ lift off brackets. |
Supporting frame | |
Duct panels | Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header. |
Wall panels | Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header. |
Flash gap panels | 1 mm HPL flashgap bonded to framework. |
Edge treatment | Machine finished, bevelled edge. Machine finished, crescent edge. Manufacturer guidanceExposed edges machined to a smooth finish. |
Colour | Manufacturer guidanceTo be confirmed from WW standard range. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
