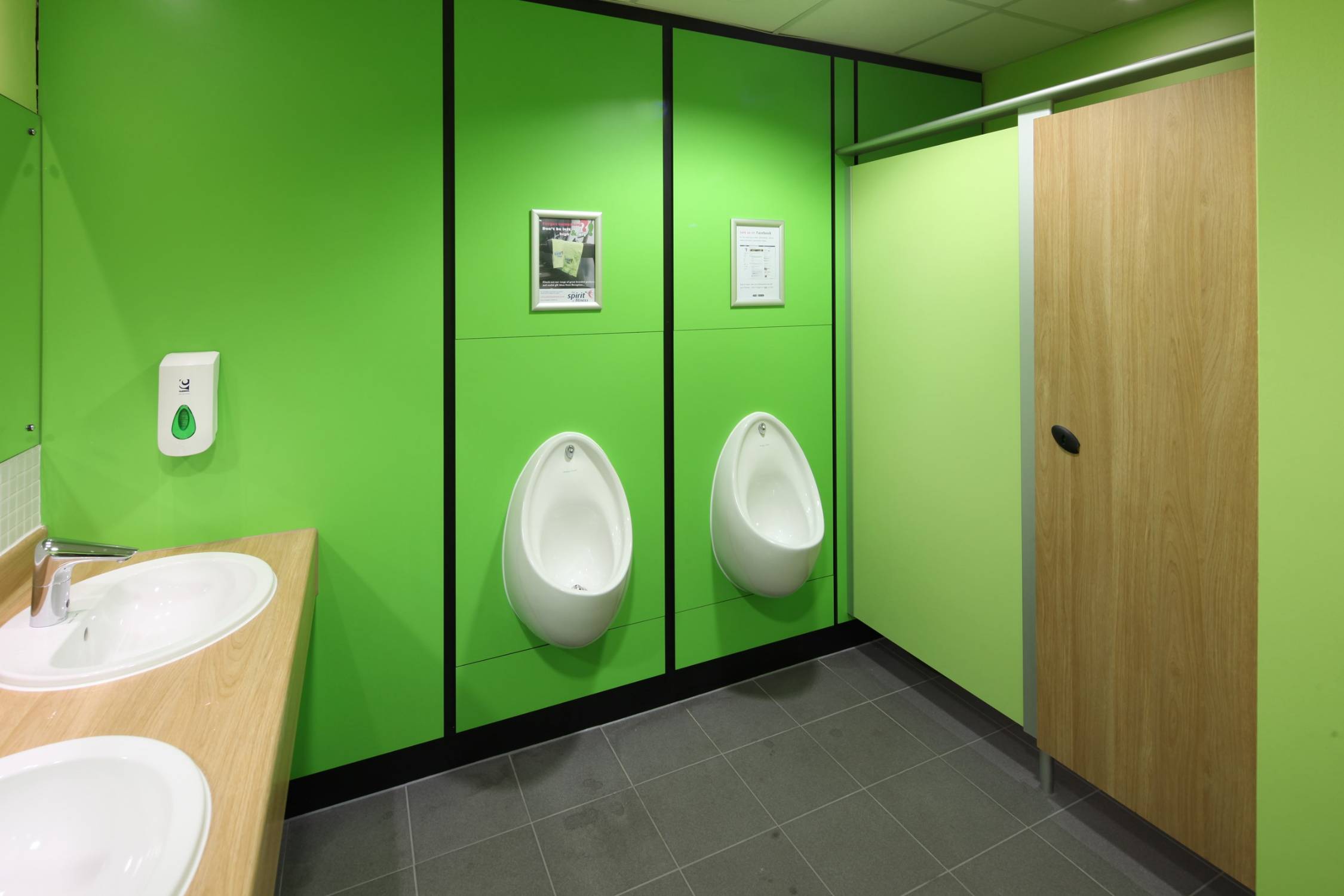

Duct System: Melamine Faced Ducting
Verified by manufacturer 4 months ago
Duct panelling system with timber framework.
Application
Suitable for public washrooms.
Description
Features and benefits:
- Manufactured from 18/ 19 mm MFC (melamine faced chipboard).
- Edges are lipped in either a matching HPL or a 2 mm PVC edge.
General information
Color | Manufacturer guidanceTo be confirmed from WW standard range. |
Finish | Manufacturer guidanceVarious options available. |
Material | Melamine Manufacturer guidance18/ 19 mm MFC (melamine faced particleboard), the edges are then lipped in either a matching HPL or alternatively a 2 mm PVC edge |
Warranty description | One year Guidance for specification option: From practical completion. |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only |
Specification data - Duct and wall panel lining systems
Classification data | |
Panels | Depends on specification of sanitaryware. |
Fasteners | Supplied complete with corresponding flashgap laminate and Hafele push on/ lift off brackets. |
Supporting frame | |
Duct panels | Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header. |
Wall panels | Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header. |
Flash gap panels | 1 mm HPL flashgap bonded to framework. |
Edge treatment | Lipped with corresponding PVC. Guidance for specification option: HPL3 and MFC3. Lipped with matching laminate. Guidance for specification option: HPL3 and MFC3. Manufacturer guidanceEdges lipped with matching laminate or corresponding PVC. |
Colour | Manufacturer guidanceTo be confirmed from WW standard range. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
