Duct Panelling - Integrated Panelling System

Panel and frame system arrives pre-assembled and is 50% quicker to install than a timber frame.

Fast and simple installation - PDQ Panel & Frame dramatically reduces time one site and is twice as quick to install compared to a traditional built or other IPS panel toilet and washroom systems. With pre- fabricated holes and slots in pre-determined positions, you can rest assured knowing that all the system fixing components are in the right position every time.

Melamine faced chipboard (MFC) and solid grade laminate (SGL) flash gaps come in selection of standard widths to help with quick installation, reducing the cutting needed on-site.

Perfect panel alignment - Our Dowel Dock system allows panels to be hung quickly and easily, speeding up installations and ensuring panels are always aligned to minimise dirt traps. Additionally our Cross Brace Brackets ensures the whole system retains its shape.

Ease of maintenance - Panel access for maintenance is made easy and safe, with optional top hinged access panels that lock at a 90° angle. For when extra security is needed choose our anti vandal star lock option.

Exceptional value for money - Our revolutionary PDQ Panel & Frame system arrives pre-assembled and is 50% quicker to install than a timber frame, cutting labour time and cost in half.

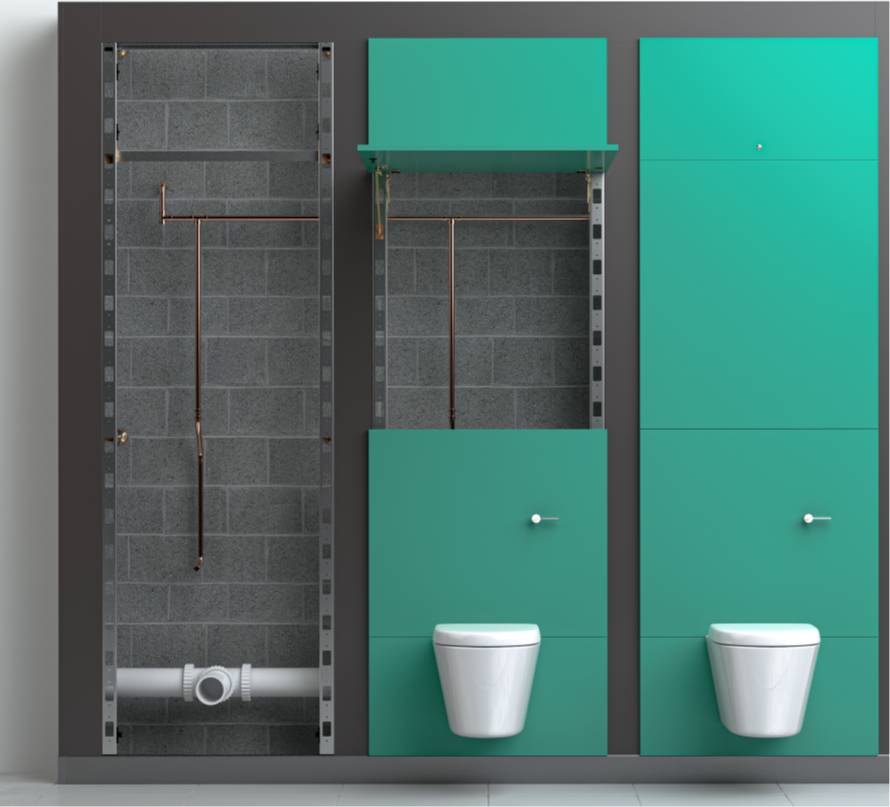

PDQ Panel splits for all needs - With panel splits to suit WCs, urinals and WHBs and a slim line system profile designed to offer maximum available room space, our PDQ Panel & Frame range will create the perfect finish to your washroom project. The galvanised metal frame system is suitable for clinical installations, concealing services and plumbing in multiple applications.

Our panelling is flexible and easy to install. Panels are available in a variety of material options including melamine faced chipboard, high pressure laminate, solid grade laminate , ColourCoat or for that extra luxurious finish, real wood veneer.

Features and benefits:

• Metal framed system arrives on site pre-assembled
• Cross Brace and Bracket system ensures rigidity
• Dowel Dock System designed for perfect panel alignment
• Aluminium Headrail and Base rail provides stability and is easy and quick to install
• Panels arrive labelled and pre-hung for ease
• Twice as quick to install as a traditional IPS system cutting labour time & cost in half
• Various panel splits to suit WCs, urinals and WHBs
• Galvanised metal frame system suitable for clinical installations
• Panel Slider Brackets allow hinged panels to rise and fall.
• Conceals services and plumbing in multiple applications
• MFC and SGL Flash Gaps come in selection of standard widths to allow for quick installation and reduced cutting on-site.
• Available in five material options in over 30 laminate colours.
• Hinged access panel, locking at 90° angle allowing easy maintenance access.
• Anti-vandal lock for when extra security is needed.
