DucoTop 60 SR AK
Compare variants

Application

Suitable for use with aluminium, PVC or timber windows.

Description

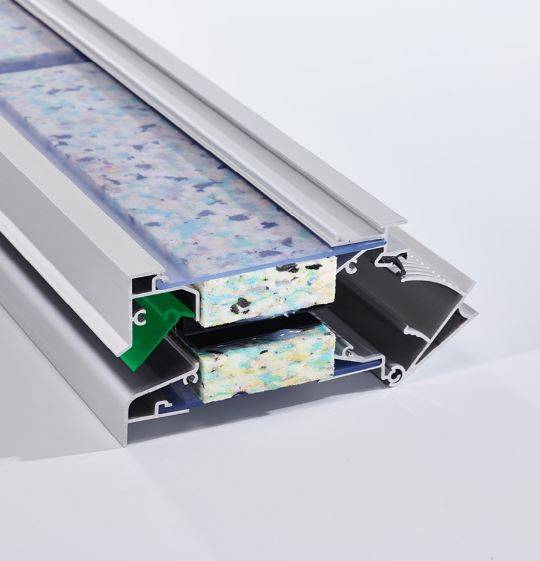

Window ventilator for any window section between 68 and 188 mm. The top is transparent and fitted with pre-drilled fibreglass-reinforced ties. The anchor channel at the top provides a rapid and secure fixing to the solid structure.


In the sound-absorbing configurations, the window ventilator can also be utilised in situations with light noise exposure.


Features and benefits:

  • Optimum aesthetics thanks to “concealed” punching.
  • Adjustable depth for fitting on any window section.
  • Just 60 mm window ventilator height.
  • Plastic thermal bridge top and bottom.
  • Available in an acoustic configuration.
  • The inner valve is easy to replace.
  • Variable depth.
  • Also available as a dummy, false window ventilator for an aesthetically pleasing solution.

General information

Color

Range of colours available in either anodized or RAL.

-

Finish

Anodized

Standard natural colour (clear anodizing).

Powder coated

Standard RAL colours with 70% gloss.

Material

Aluminium

Plastic

Plastic thermal bridge top and bottom.

WarrantyDescription

Ten years

Size

Insert requirement.

Uniclass

Pr_30_59_94_90 Trickle ventsPrimary

CAWS

L10/10 Wood windows

L10/15 Wood windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/260 Wood windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/410 Composite windows

Product range

Basic Ventilation

Specification data - Trickle vents

Operation

Manual.

Equivalent area (minimum)

17,179 mm²/m.

@ 1Pa.

Material

Aluminium.

Plastic thermal bridge top and bottom.


Colour

RAL.

  • DAR (Duco Anodic RAL) .
  • Polyester powder coated (60-80μm) in Duco300.
  • RAL - Specific RAL colour and/or texture on demand.
  • Dual colour available.

Execution

Fasteners for hardware.

Installation

Compact transom mounting.

Fitting over the glass.

Insert glazing thickness, suitable for 26, 30, 34 and 38 mm thicknesses.

On top of the window frame.

Transom mounting.

Insert size requirement, consult manufacturer's literature for information.

Free area

Geom. free area.

19500 mm²/m.

Wind load resistance

Class 3 (650 Pa).

In closed position.

Watertightness

Class E650 (650 Pa).

In closed position.

U-value

1.80 W/m²K.

Length

3500 mm.

Split flap from 2000 mm.

Height

Ventilator height.

60 mm.

Installation depth

68—88 mm.

Air flow

64.5 m³/h/m.

@ 2Pa.

Sound reduction

28 (0;-2) dB.
