DucoGrille Classic G 20V - Recessed Aluminium Wall/ Window Louvres

Verified by manufacturer 6 days ago

DucoGrille Classic G 20V

Duco Ventilation & Sun Control NV Variant:

Recessed aluminium wall/ window louvres.

Jump to:
+32 58 33 00 66 Website

Application

Louvres for wall/ window ventilation.

Description

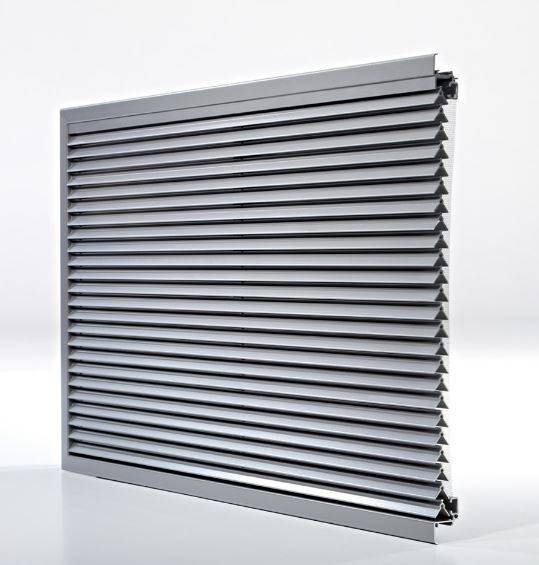

A recessed mounted wall louvre manufactured from extruded aluminium profiles. The Turn and Click system ensures quick and easy assembly.


Features and benefits:

  • Recessed wall or window louvres, manufactured from extruded aluminium profiles.
  • The Turn and Click system ensures quick and easy assembly.
  • Many louvre blade options are available.
  • The V-shaped blade ensures a tight design.
  • An insect screen is fitted as standard.

General information

Color

Range of colours available in either anodized or RAL.

-

Finish

Anodized

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder-coated

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Material

Aluminium

Shape

Rectangle

Width

200 mm

Height

200 mm

Warranty description

Ten year

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_94_06 Air transfer grillesPrimary
Ss_25_10_20/540 Custom-made louvres
Pr_30_59_48_02 Aluminium louvre blades

CAWS

H11/140 Louvres

H11/437 Louvres

L10/650 Metal louvres

Product range

Wall and Window Louvres

Specification data - Air transfer grilles

Size

W x H.

200 x 200 mm (minimum).

Material and finish

Anodized aluminium.

Standard aluminium anodized (15-20μm) according Qualanod.

Powder-coated aluminium.

Polyester powder coated (60-80μm) according Qualicoat Seaside type A.

Colour

Anodized.

RAL.

Standard RAL colours. Insert requirements.

Execution

Fasteners for hardware.

Flange

Equal leg outer frame.

19 mm.

Depth

Frame depth.

36 mm.

Thickness

Profile thickness.

1.5 mm.

Free area

Visual free area: 95%; Physical free area: 34%.

InputFlowrate

K-factor intake.

41.62.

ExhaustAirFlowrate

K-factor exhaust.

41.62.

Type

V-shaped.

Construction

Flanged frame.

Accessories

Not required.

Extra drip tray on the back of the frame.

Orientation

Horizontal.

Mesh

Without mesh.

Stainless steel mesh, 2.3 x 2.3 mm.

Standard, resistant to insects, vermin and birds.

Stainless steel mesh, 6 x 6 mm.

Resistant to vermin and birds.

Stainless steel mesh, 20 x 20 mm.

Resistant to birds.

Frame width

25 mm.

Louvre Blade Pitch

20 mm.

Water resistance

To BS EN 13030.

  • v = 0 m/s: A.
  • v = 0.5 m/s: B.
  • v = 1 m/s: C.
  • v = 1.5 m/s: D.
  • v = 2 m/s: D.
  • v = 2.5 m/s: D.
  • v = 3 m/s: D.
  • v = 3.5 m/s: D.
