Description

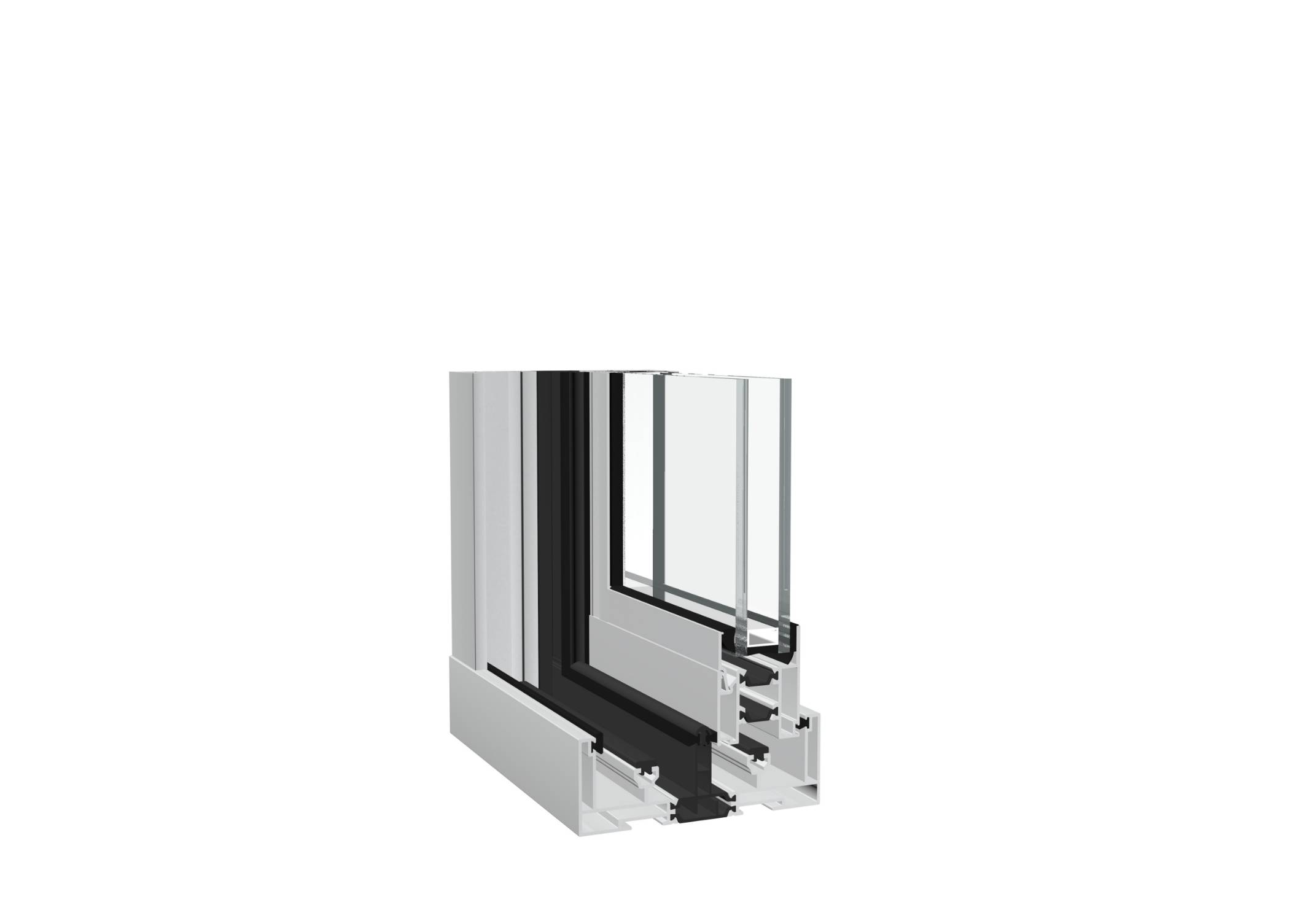

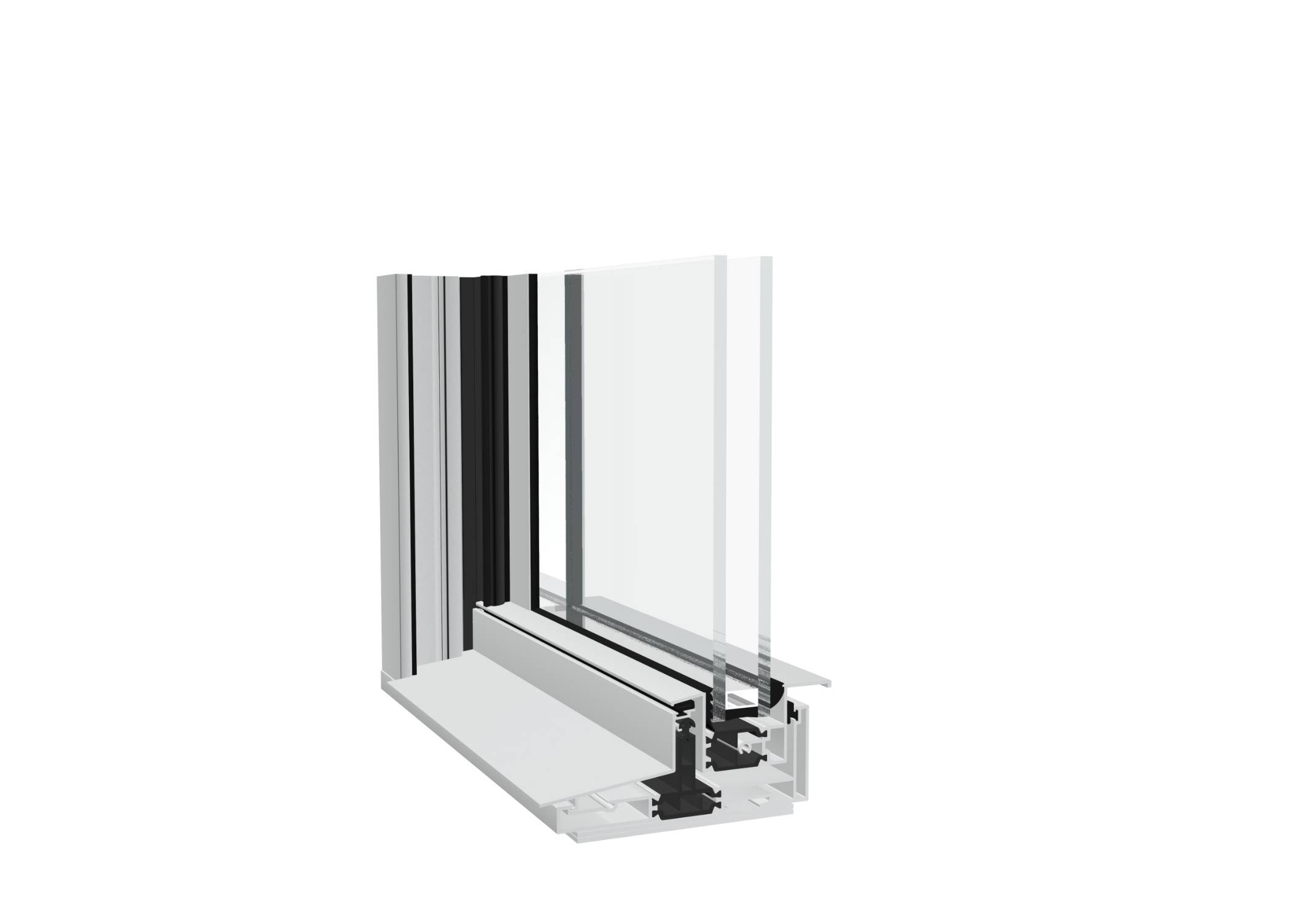

Aluminium horizontal or vertical sliding windows.

Features:

  • Dual colour available; differing finishes internally and externally possible.
  • Drained and ventilated glazing; nitrile rubber gaskets.
  • Polyamide thermal breaks.
  • Integral finger pulls extruded into the sash profiles.
  • Trickle ventilators available.

General information
Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Powder coated metallic, colour

To EN 12206-1: 2004, insert colour.

Features

Dual colour available; differing finishes internally and externally possible

Drained and ventilated glazing; nitrile rubber gaskets

Polyamide thermal breaks

Integral finger pulls extruded into the sash profiles

Trickle ventilators available

Uniclass 2015 Aluminium window units (Pr_30_59_98_02)
Specification data
Product Reference

Dualslide Horizontal Sliding Window

Dualslide Vertical Sliding Window

Dualslide Inward Tilting Vertical Sliding Window

Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Powder coated metallic, colour

To EN 12206-1: 2004, insert colour.

Glazing

24 mm

28 mm

32 mm

Accessories

None

Anti-ligature locking

Opening restrictor both sashes/leaves 100 mm

Opening restrictor lower sash 100 mm vertical slider and inward tilting vertical slider

Sash pull ring

Vertical sliding and inward tilting vertical sliding.

Trickle ventilator

Standard product features

Hardware:

  • Vertical Sliding: Torso pre tensioned spiral balances, lockable interlock catch, integrated pull handles within frame profiles.
  • Vertical sliding with inward tilt: Torso pre tensioned spiral balances, lockable interlock catch, integrated pull handles within frame profiles. Lockable tilt latches and tilt restrictor arms.
  • Horizontal sliding: Stainless steel rollers, concealed stainless steel hook lock.

Product Options

Size (w x h, maximum):

  • Horizontal sliding: 3100 x 1500 mm.
  • Vertical sliding: 1500 x 2700 mm.

Glazing:

24, 28 or 32 mm as standard. Insert details of glass and spacer dimensions, emissivity, safety and solar control.
