Application

Suitable for domestic, commercial, and institutional new build or refurbishment projects.

Description

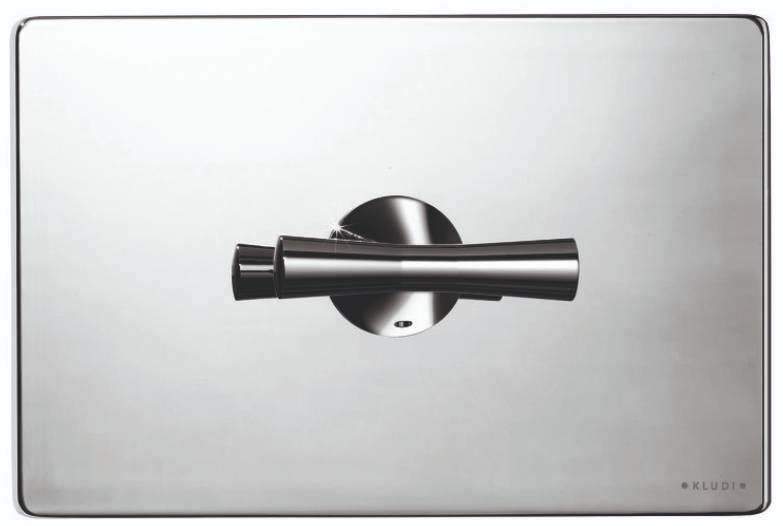

A range of unique controls to suit TECE’s Installation Frames for Wall Hung WC’s and also the concealed cisterns for back to wall floor standing WC pans. This wide range of handle controls can be fitted to all the TECE flushing cisterns, or Installation Frames. Supplied with fittings and instructions.


The Bathroom Engineering range of control handles is uniquely designed to work the TECE concealed cisterns and cistern frames used to operate WC’s in en-suites, cloakrooms and other bathrooms. A hidden mechanism within the décor plate converts push button control of TECE cisterns or frames to lever actuation, operating both the small or large flush.


Suitable for bathrooms where space is at a premium and ease of cleaning or sleek design is a priority.


Especially useful for users with limited movement or grip, these cistern control handles and levers offer control of the full range of flushing features by way of easy to grasp handles.


Suitable for TECE concealed cisterns and cistern frames only.


Features and benefits:

  • Rotary control handle and décor plate acts as a removable access cover, to ease service, maintenance and adjustment of internal workings.
  • Hidden mechanism within the décor plate converts the push button control to lever actuation.
  • “Turn to Flush” rotary control system, includes Dual Flush actuation.
  • Other design options suit a variety of bathroom styles incl.
  • TRAD Range ‘L’ shaped Control Handle Cistern lever: See separate Data Sheet.
  • TRAD Range ‘X’ shaped Control Handle Cistern Cross Head: See separate Data Sheet.
  • Décor plate & handle sit proud of the installation finish.
  • The handles & main décor plate are made from chrome plated brass, to give a high quality polished finish.
  • All flush control lever handles can be retro-fitted to existing TECE cisterns and cistern frames.
  • The metal parts of the handle, flange and décor panel allow another plated finish to be applied, in order to match other items within the bathroom.
  • Compatibility : TECE flushing cisterns and cistern frames only.
  • Size: Securing flange diameter 50 mm.
  • Cover plate material: Brass substrate, polished and plated.
  • Securing flange and handle material: Brass substrate, polished and plated.

General information

Color

Silver

Finish

Polished

Chrome

Material

Brass

Shape

Rectangle

Length

212 mm

Width

148 mm

Height

16 mm

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary
Pr_40_20_93_87 WC cistern fittings

CAWS

S90/690 Flush control devices

S90/690 Flush control devices

Specification data - Flush control devices

Materials

-

Body

Brass.

Finish and colour

Chrome-plated, polished.

Operation

Lever.

Controller

Surface-mounted.

Dimensions

148 x 212 x 16 mm.

Type

Traditional Lever.
