DSIX4 Decking Screw - Impreg®X4

Name: DSIX4 Decking Screw - Impreg®X4
Brand: Simpson Strong-Tie
SKU: ntf2ruxZPaMdJXkwTah2Km

Verified by manufacturer 7 months ago

Simpson Strong-Tie

Third party certifications:

DoP
Certificate type

A decking screw with Impreg®X4 coating, designed for treated timber and outdoor environments.

Jump to:

01827 255 600 Website

Application

Common applications:

Timber to timber
Fixing decking to timber
Outdoor use

Description

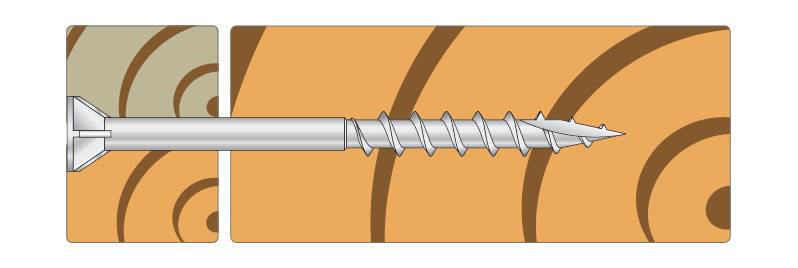

The DSIX4 decking screw is designed for treated timber and outdoor environments. It has a six lobe recess to ensure good grip which drives the screw efficiently. The type 17 point prevents the timber from splitting when it is inserted. It has a coarse thread and ribbed countersunk flat head which allows it to be countersunk in the timber and ensures a neat finish.

Features and benefits:

CE marked to EN 14592.
Six lobe drive.
Countersunk ribbed flat head.
Coarse thread.
Type 17 point.

General information

Color	Silver
Finish	Coated
Material	Carbon steel
Shape	Other
Length	55 mm 75 mm
Width	4.2 mm

Uniclass	Pr_20_29_76_98 Wood screwsPrimary
CAWS	Q50/25 Timber deck Q55/110 Deck

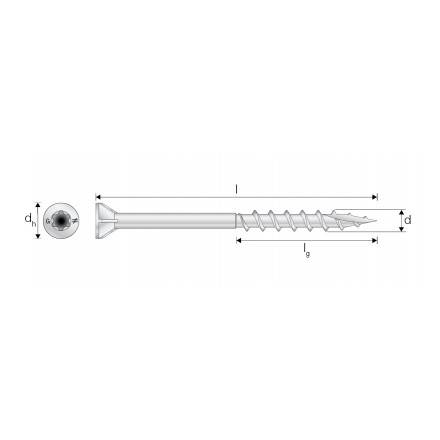

Specification data - Wood screws

Standard	To BS EN 14592.
Material	Carbon steel.
Finish	Coated.
Screw details	-
Head option	Countersunk ribbed flat head.
Screw pattern	Partially threaded shank.
Size	-
Diameter	4.2 mm.
Length	55 mm. Guidance for specification option: DSIX44.2X55T-20. 75 mm. Guidance for specification option: DSIX44.2X75T-20.
