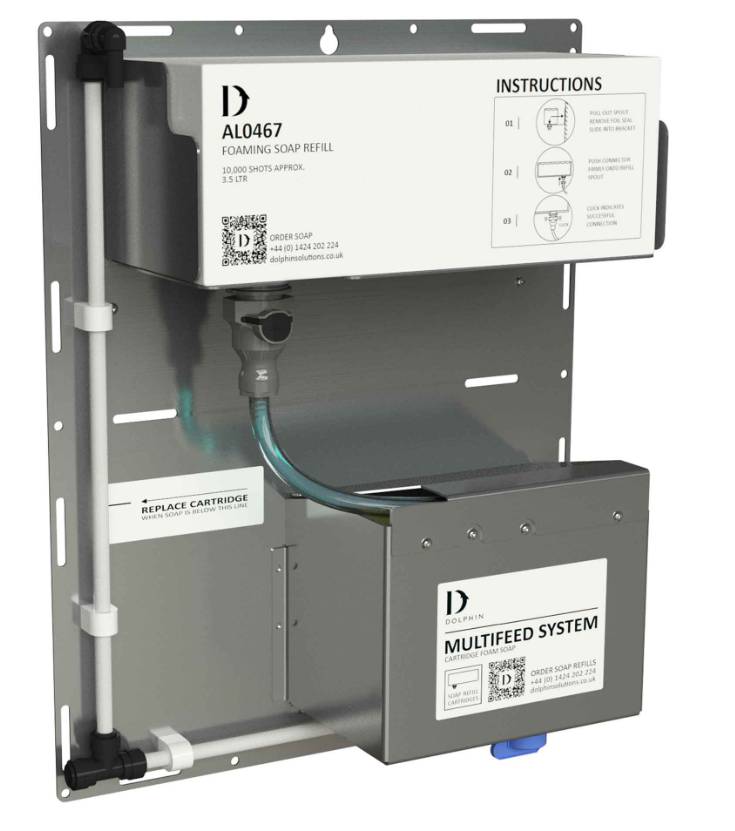

DS800 Dolphin Foam Soap Cartridge Multifeed System
Verified by manufacturer 3 months ago
Foam soap cartridge multifeed system for up to eight foam soap dispensers.
Application
Suitable for mounting in high and low traffic areas under counter, behind hinged mirrors, in service duct or within cleaner's cupboards.
Description
Foam soap cartridge multifeed system.
Features and benefits:
- Can supply up to eight foam soap dispensers.
- Gravity fed supply to each individual pump.
- Sealed cartridge reduces the risk of bacterial contamination.
- Maintains a high efficiency and function.
- Vent pipe level indicator provides visual alert to change the cartridge.
- Suitable for both high and low traffic areas and has been tried and tested in small offices, large commercial buildings and airports.
- A two litre reservoir means the washroom will remain operational after each cartridge is fully drained.
- Patented.
- Compliant with WELL v2 2018 by International WELL Building Institute. W08 Handwashing, Part 2A
General information
Color | Silver |
Finish | Powder-coated Brushed |
Material | Stainless steel |
Shape | Rectangle |
Width | 120 mm |
Height | 151 mm |
Uniclass | |
CAWS | N13/62 Soap dispensers N13/458 Soap dispensers |
Specification data - Soap dispensers
Form | Wall-mounted. |
Materials | |
Body | Stainless steel, grade 304. |
Height | 500 mm. |
Width | 400 mm. |
Projection | 139 mm. |
Clearance | 139 mm. Manufacturer guidanceClearance required to replace cartridge. |
Capacity | 3500 ml cartridges. Guidance for specification option: 1 x complimentary starter 3.5 litre refill cartridge included (bought in pack of 4 ongoing). |
Connector | Hand held shut-off connector. Guidance for specification option: Connects new cartridge. |
Accessories | Not required. BCL632F. Guidance for specification option: Panel mounted dispenser. BC633F. Guidance for specification option: Counter mounted dispenser. BCZ1596. Guidance for specification option: Behind mirror dispenser. Manufacturer guidanceCompatible dispensers (order separately). |
Dispenser | 1 soap dispenser. 2 soap dispensers. 3 soap dispensers. 4 soap dispensers. 5 soap dispensers. Manufacturer guidanceMulti-feed options. |
Pack includes | 1 x wall mounted multifeed system, 1 x 3.5 litre refill cartridge, 1 x vent pipe, pipework and fitting pack. Guidance for specification option: Pipework and fitting pack quantity is dependent on number of soap dispensers required (charged per dispenser) - DS800PIPEWORK. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
