NBS Source

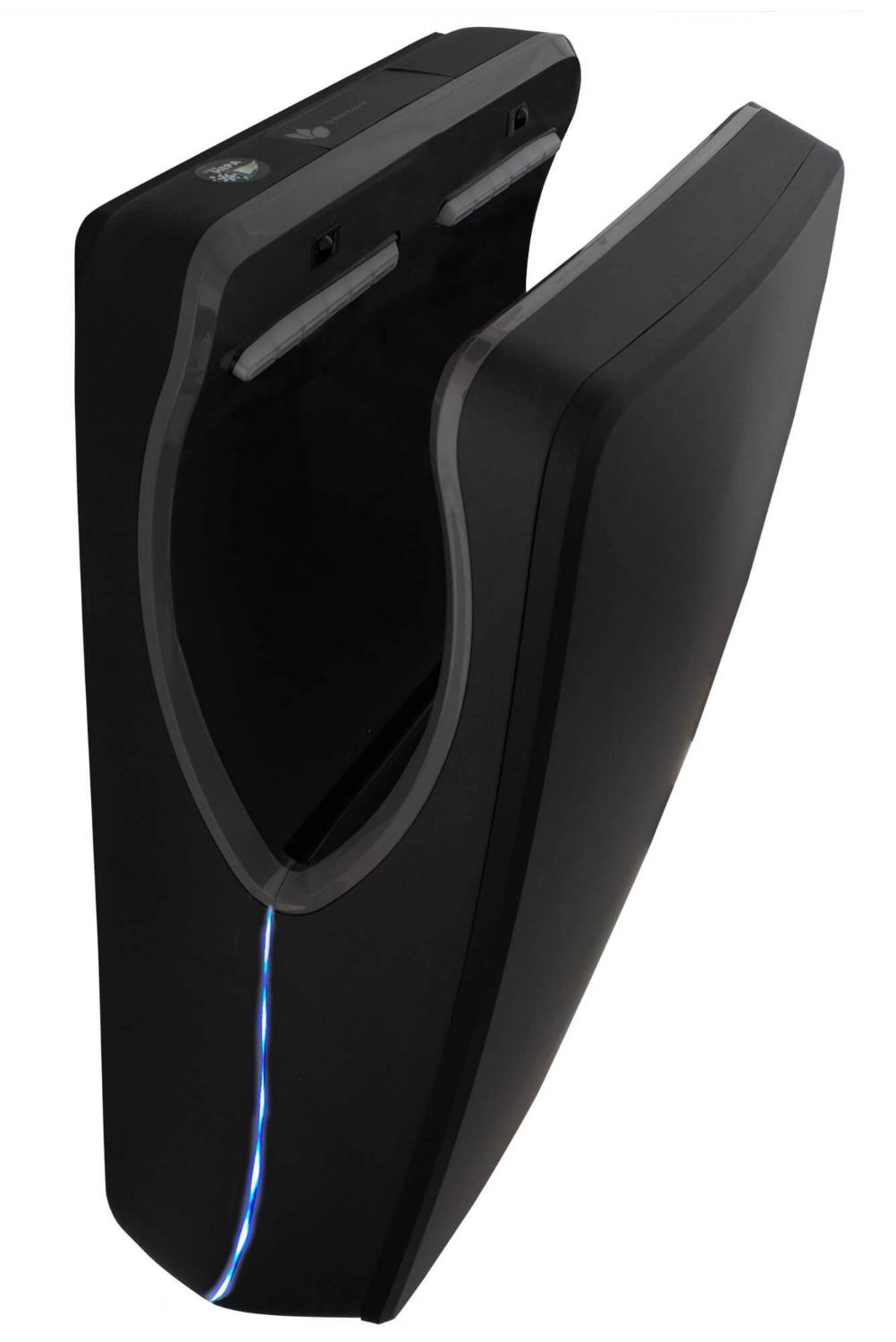

Dryflow® Vapordri HEPA Hand Dryer

Application

Suitable for high traffic areas (301–500 uses per day) in washrooms including airports, bars, cinemas/ theatres, colleges, factories, hotels, leisure centres, motorway services, offices, restaurants, retail outlets, supermarkets and universities.

Description

Compact, blade-style, water vaporising hand dryer.


Features and benefits:

  • Design incorporates a modern blue LED light down the side of the unit, which lights up when the dryer is in use.
  • Quick dry time of 10–15 seconds, suitable for use in high traffic public washrooms.
  • Water is directed straight into a water collection system. The unit has a 500 ml drainage tank which collects the excess water from hand drying, leaving floors and walls water free. The drainage tank is easily accessible from the bottom of the dryer for quick servicing.
  • High speed, low noise system.
  • Includes HEPA filter and advanced hygiene technology as standard, which removes 99.5% of microbes.
  • Easy maintenance diagnostic system.
  • Suitable for smaller washrooms due to low, 180 mm depth.
  • The heater element is only activated if the washroom temperature drops below 25°C, keeping energy usage low.
  • A luminous display system notifies of when the HEPA filter needs changing, when the water tray is full and when the brushes need changing.
  • CE marked.

General information

Color

Grey

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

540 mm

Width

320 mm

Height

180 mm

WarrantyDescription

Seven year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

Dryflow
Hand Dryer Features / Blade Hand Dryers
Hand Dryer Features / Quiet Hand Dryers
Hand Dryer Features / High Speed Hand Dryers

Specification data - Hand dryers

Form

High velocity air through HEPA filter.

Operation

Automatic.

Electrical supply

-

Power rating

1.00–1.50 kW.

Body

-

Material

ABS plastics.

Colour

Graphite.

Ingress protection (minimum)

IP21.

Dimensions

540 x 320 x 180 mm.

Accessories/ Other requirements

See manufacturer's literature for a full list of spare parts and accessories, and insert requirements.

Literature

Hand Dryer Spec Sheet - Dryflow Vapordri with HEPA Hand Dryer

Hand Dryer Spec Sheet - Dryflow Vapordri with HEPA Hand Dryer

Catalogue - Intelligent Hand Dryer Range and Availability

Catalogue - Intelligent Hand Dryer Range and Availability
