product no longer available -

Application

Suitable for mid-traffic areas up to 500 uses per day. For cinemas and theatres, colleges, public attractions, pubs, schools, sports stadiums, swimming pools, airports, factories, hotels, motorway services, offices, retail outlets and supermarkets.

CE marked.

Description

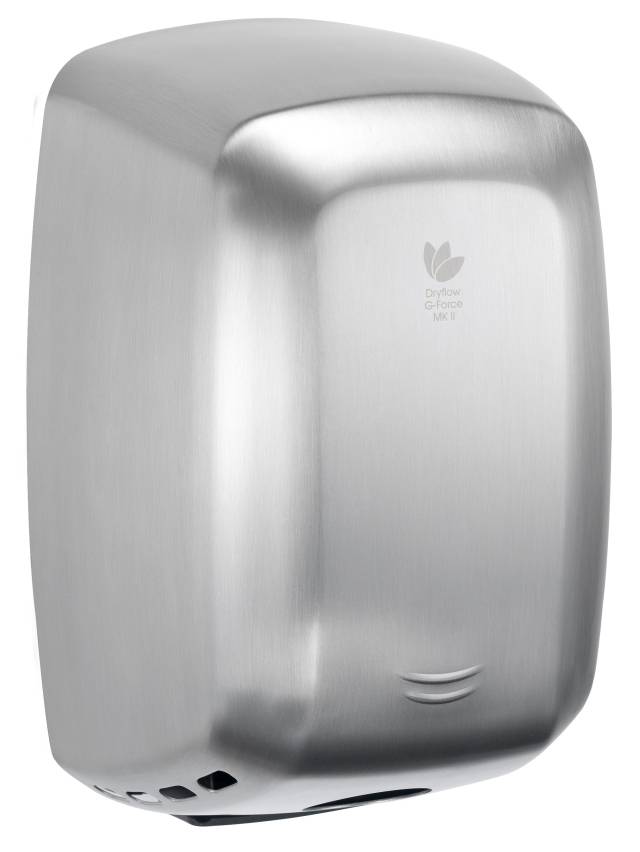

Plug in system hand dryer.

Features and benefits:

  • 12–23 seconds dry time.
  • Quiet performance and wide airflow.
  • Heater element adjustment is possible via an internal on/ off switch, to condition the unit to user requirements or to lower energy usage and costs.
  • Unit is detachable from the electrical supply, making maintenance quicker and cheaper.
  • Highly vandal resistant, with high mechanical strength and flame resistant properties.
  • Expected motor life of 3000 hours.
  • Three year guarantee.

Applications:

Suitable for mid-traffic areas up to 500 uses per day. For cinemas and theatres, colleges, public attractions, pubs, schools, sports stadiums, swimming pools, airports, factories, hotels, motorway services, offices, retail outlets and supermarkets.

CE marked.

General information
Material

Grade 1.4301 (304) stainless steel

Uniclass 2015 Hand dryers (Pr_40_70_62_37)
Specification data
Product Reference

GFM201

White.

GFM202

Brushed satin.

GFM203

Polished chrome.

GFM204

Matte black.

Accessories

Not required

Odour neutralizer

Leaves a pleasant fragrance.

Standard product features

Size (h x w x d):

330 x 213 x 170 mm.

Material:

Grade 1.4301 (304) stainless steel.

Technical characteristics:

  • Rated power (adjustable motor): 420–1500 W (0.42–1.5 kW).
  • Input voltage: 220–240 (50–60 Hz).
  • Energy per dry: 2.68 Wh (low speed, no heat), 3.67 Wh (high speed, no heat), 5 Wh (high speed, with heat), 5.24 Wh (low speed, with heat).
  • Motor: Universal brush motor.
  • Motor speed: 19 000–30 000 rpm.
  • Air speed (maximum): 202 mph (90 m/s).
  • Air volume: 71.22–111.83 cfm.
  • Operating sound level (at two metres): 67–74 dBA.
  • Operating temperature range: 45°C.
  • Heater element power: 400 W (optional use by switch).
  • Motor cut-off time: 60 seconds.
  • Ingress protection (IP) rating: IP23.
  • Sensor type: IR.
  • Weight: 5.1 kg.
