Dry Hip System
Verified by manufacturer 6 months ago
A mechanically fixed finish to the hip line of roof slopes of equal pitch.
Application
- Designed for use on roof slopes of equal pitch either side of hip.
- Suitable for use on roofs up to a maximum pitch of 55° (45° with dry ridges) and where the roof slopes intersect at 90° on plan.
Description
A mechanically fixed finish to the hip line that will accommodate roof slopes of varying pitch either side of the hip, up to a 5° difference. The hip tiles are secured to a PVC-U Hip Batten Section and utilises PVC-U Hip Unions to maintain compatibility with the Marley Dry Ridge System.
Product properties:
- 2 No. 3 m length of closed-cell rubber foam strips.
- 5 No. PVCu fixing/ expansion blocks.
- 12 No. head clips.
- 2 No. PVCu 'H' section clips.
- 18 No. tail clips.
- 7 No. 75 mm x 10 g s/s drive screws.
- 1 No. block end hip bracket and set screw with sealing washed.
Features and benefits:
- Weathertight and maintenance free.
- Fully compatible with ventilated dry ridge system.
- Available in a range of colours.
General information
Material | Plastic |
Length | 3000 mm |
Uniclass | |
CAWS | H65/505 Dry hips H65/55 Dry hips |
Specification data - Dry fixing hips
Classification data | |
Form | Hip slate dry fixing kits. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Plastic |
Similar products from Marley Ltd

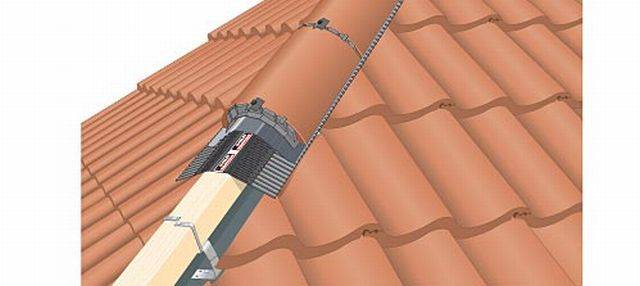

Universal HipFast System
