Drop Core Bollard - Demountable Heavy Duty Bollard
Verified by manufacturer 3 months ago
Enhance safety with demountable steel bollard cores for easy removal, various cover kit colours, and reflective bands. Choose from various heavy duty options for diverse warehouse safety applications.
Application
Suitable Drop Core Bollard applications:
- Enhance safety near external loading docks with reflective bollards for optimal visibility.
- Secure pedestrian walkways in high traffic warehouses, promoting employee safety.
- Safeguard building corners and columns, preserving their integrity from potential collisions.
- Mark fire escape routes using the Green/White bollard option for heightened commercial building safety.
- Ensure caution areas are unmistakable with the Black/Yellow or Yellow/Black bollard options, enhancing risk warning effectiveness.
Description
Drop Core Bollard - Enhance safety with demountable steel bollard cores for easy removal, various cover kit colours, and reflective bands. Choose from various heavy duty options for diverse warehouse safety applications.
Features and Benefits:
- Incorporates cast-in steel floor socket for superior bollard strength.
- Demountable steel bollard cores for simple removal and reinstallation.
- Eliminates the costly excavation and casting process of a potted bollard system.
- Various bollard cover kit colours, including a 50 mm reflective band for night visibility.
- Finished with Polymer Bollard Cover Kits, no ongoing paint maintenance required.
- Heavy Duty Bollard: 168 mm diameter steel bollard core, 210 mm overall, 1260 mm height.
- Super Duty Bollard: 219 mm diameter steel bollard core, 260 mm overall, 1560 mm height.
- Required Socket Depth 200mm x Diameter 200mm
Drop Core Bollards are available in a range of standard colours:
- Green/White (Fire Escape Rooms)
- Red/White (High Warning Areas)
- Black/Yellow (Caution Areas)
- Yellow/Black (Caution Areas)
- Yellow (Caution Areas)
General information
Color | Green White Red Yellow Black |
Finish | Reflective |
Material | Polymer Steel |
Shape | Other |
Length | 210 mm |
Width | 210 mm |
Height | 1260 mm |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Specification data - Carbon steel bollards
Duty | Heavy. |
Dimensions | |
Size and profile | 210 x 1260 mm.Guidance for specification option: Heavy Duty 260 x 1560 mm.Guidance for specification option: Super Duty |
Height | Manufacturer guidance≥1260 mm. Insert requirements. |
Length below ground | 200 mm. |
Post top | Rounded. |
Post base | Flat. |
Finishes | |
Colour | Red and white.Yellow and black.Green and white. |
Accessories | Retro-reflective tape. |
Installation | 200 mm diameter diamond core. Guidance for specification option: Heavy Duty 250 mm diamond core (200 mm deep). Guidance for specification option: Super Duty |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polymer Steel |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

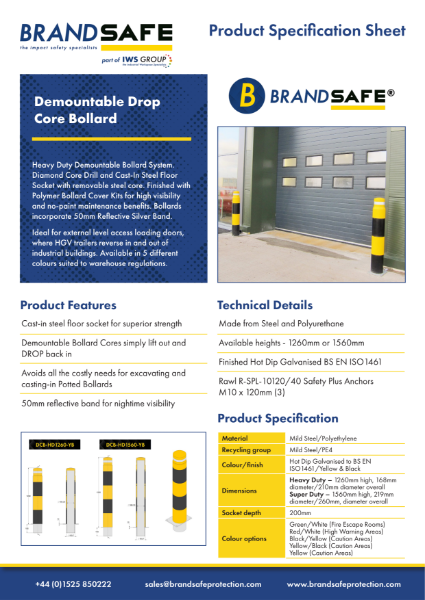

Demountable Drop Core Heavy Duty Bollard - Brandsafe Spec Sheet
