Description

Drywall thermal lining system that provides a simple and effective technique for drylining brick, block and concrete walls in both new-build and refurbishment work.

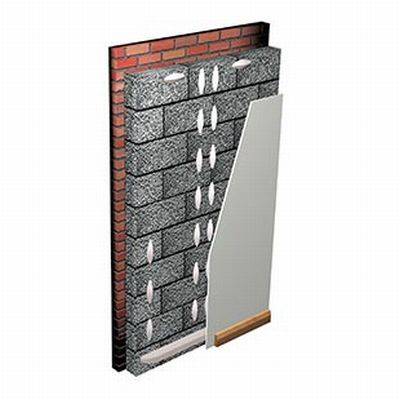

DriLyner TL uses gypsum adhesive dabs to bond thermal laminate boards directly to the wall.

Performance:

  • Sound insulation, Rw: 56–60 dB.
  • Thermal performance, U-value: 0.28–0.60 W/m²K.

General information
Specification data
Product Reference

DriLyner TL

Parge coat

Not required

Gyproc SoundCoat

Adhesive method

Dabs, as clause ___

Linings

1 x 22 mm Gyproc ThermaLine BASIC

1 x 30 mm Gyproc ThermaLine BASIC

1 x 40 mm Gyproc ThermaLine BASIC

1 x 38 mm Gyproc ThermaLine PIR

1 x 53 mm Gyproc ThermaLine PIR

1 x 63 mm Gyproc ThermaLine PIR

1 x 78 mm Gyproc ThermaLine PIR

1 x 93 mm Gyproc ThermaLine PIR

1 x 27 mm Gyproc ThermaLine PLUS

1 x 35 mm Gyproc ThermaLine PLUS

1 x 40 mm Gyproc ThermaLine PLUS

1 x 45 mm Gyproc ThermaLine PLUS

1 x 48 mm Gyproc ThermaLine PLUS

1 x 30 mm Gyproc ThermaLine SUPER

1 x 40 mm Gyproc ThermaLine SUPER

1 x 50 mm Gyproc ThermaLine SUPER

1 x 60 mm Gyproc ThermaLine SUPER

1 x 70 mm Gyproc ThermaLine SUPER

1 x 80 mm Gyproc ThermaLine SUPER

1 x 90 mm Gyproc ThermaLine SUPER

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not generally suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Primer

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Rigid beads/ stops

Gyproc nailable plugs

For secondary fixing.

Standard product features

Accessories:

Gyproc nailable plugs: Insert two Gyproc Nailable Plugs per board (after the dabs have set) as secondary mechanical fixings, located within the tapered edges so that they are concealed when the system is finished, at mid height. For Gyproc ThermaLine to receive wall tiling, fix nine Gyproc nailable plugs per board. Ensure plugs penetrate at least 25 mm into the background, excluding the thickness of any existing plaster finishes. Drive nail heads slightly below the paper surface; do not break paper or gypsum core.
