Description

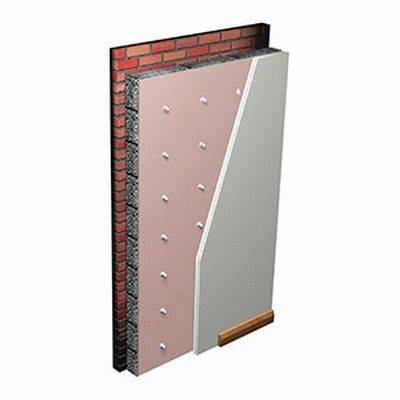

Drywall thermal lining system that provides a simple and effective technique for drylining brick, block and concrete walls in both new-build and refurbishment work.

DriLyner RF uses Gyproc Sealant to bond plasterboard or thermal laminate boards directly to the wall.

Performance:

  • Sound insulation, Rw: 56–60 dB.
  • Thermal performance, U-value: 0.28–0.60 W/m²K.

General information
Specification data - Gypsum board wall lining systems
Product Reference

DriLyner RF

Parge coat

Not required

Adhesive method -
Type

Gyproc sealant spots

Priming

Not required

Gyproc Sealant

For Gyproc Triline.

Linings

1 x 12.5 mm Gyproc WallBoard

1 x 12.5 mm Gyproc WallBoard TEN

1 x 15 mm Gyproc DuraLine

1 x 22 mm Gyproc ThermaLine BASIC

1 x 30 mm Gyproc ThermaLine BASIC

1 x 40 mm Gyproc ThermaLine BASIC

1 x 27 mm Gyproc ThermaLine PLUS

1 x 35 mm Gyproc ThermaLine PLUS

1 x 40 mm Gyproc ThermaLine PLUS

1 x 48 mm Gyproc ThermaLine PLUS

1 x 30 mm Gyproc ThermaLine SUPER

1 x 40 mm Gyproc ThermaLine SUPER

1 x 50 mm Gyproc ThermaLine SUPER

1 x 60 mm Gyproc ThermaLine SUPER

1 x 70 mm Gyproc ThermaLine SUPER

1 x 80 mm Gyproc ThermaLine SUPER

1 x 90 mm Gyproc ThermaLine SUPER

1 x 52 mm Gyproc TriLine

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Primer

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

Gyproc skirting plates

As a ground for fixing skirting.

Rigid beads/ stops

Gyproc nailable plugs

For secondary fixing of ThermaLine boards.

Product Options

Adhesive method – Priming:

When installing Gyproc TriLine, Gyproc Sealant is applied to the board rather than the wall, in two applications. The first application of sealant blobs is flattened using a taping knife to prime the surface. Further blobs are applied over each primed area.

Accessories:

Gyproc nailable plugs: Insert two Gyproc Nailable Plugs per board (after the dabs have set) as secondary mechanical fixings, located within the tapered edges so that they are concealed when the system is finished, at mid height for Gyproc ThermaLine or 200 mm from the top of the board for Gyproc TriLine. Ensure plugs penetrate at least 25 mm into the background excluding the thickness of any existing plaster finishes. Drive nail heads slightly below the paper surface; do not break paper or gypsum core.

  • For Gyproc ThermaLine to receive wall tiling, fix nine Gyproc nailable plugs per board.
  • For Gyproc TriLine to receive wall tiling, fix Gyproc nailable plugs at 600 mm centres, 15 mm in from each edge.
