DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel

 Fixfast Ltd

Stainless steel composite panel self-drilling fasteners for roofing and cladding (1.2–3 mm).

Jump to:
+44 (0)1732 882387 www.fixfast.com

Application

Suitable for the mechanical fixing of composite panel systems to light metal purlins and rails, and timber. For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with Fixfast GreenDrive (8 mm hexagon integral socket with retaining clip).

Fixfast products must be used as a complete system with tools and accessories as recommended – consult manufacturer for details.

Description

Stainless steel composite panel self-drilling fasteners for roofing and cladding (1.2–3 mm).

Features and benefits:

  • Grade 1.4301 (304), A2 stainless steel is used for optimum resistance to corrosion.
  • Bi-metal, manufactured for superior drilling performance.
  • Good pull-out and shear performance.
  • High thread provides optimal clamping force to the top sheet.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

Suitable for the mechanical fixing of composite panel systems to light metal purlins and rails, and timber. For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with Fixfast GreenDrive (8 mm hexagon integral socket with retaining clip).

Fixfast products must be used as a complete system with tools and accessories as recommended – consult manufacturer for details.

General information

Material

Grade 1.4301 (304) stainless steel, with carbon steel case and hardened, welded point

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Self-drilling screws

Product Reference

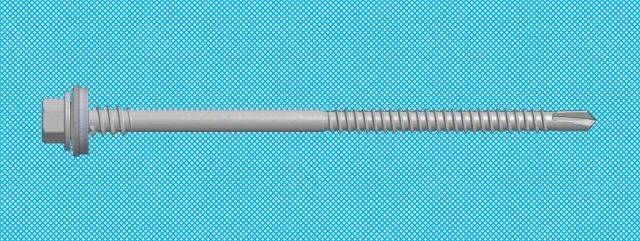

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 85

85 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 110

110 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 130

130 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 150

150 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 180

180 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 225

225 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 1.2–3.0 mm Steel, DF3-SS-HT-5.5 x 275

275 x 5.5 mm (l x diameter).

Washers

Required

Consult manufacturer for information.

Not required

Standard product features

Material:

Grade 1.4301 (304) stainless steel, with carbon steel case and hardened, welded point.

Coating:

Organic.

Head type:

Hexagon, 8 mm.

Drilling capacity:

1.2–3 mm (steel).

Minimum penetration:

  • Light steel purlins: 18 mm (through underside).
  • Softwood: 35 mm embedment.

Build up:

32–253 mm (dependent on washer used).

Durability class:

  • Interior environments: C1 (30).
  • Semi-interior: 25.
  • Urban: C2 (25).
  • Rural: C3 (25).
  • Industrial/ coastal: C4 (15).
  • Marine: C5.

Technical characteristics:

– Characteristic values:

  • Pull out values (axial load resistance, to BS 5427): 1.2 mm steel: 1.30 kN; 2 mm steel: 2.62 kN; 3 mm steel: 4.76 kN; Softwood 35 mm embedment: 3.57 kN.
  • Pull through values (axial load resistance, to BS 5427): Composite panel with A15 washer: 1 kN.
  • Shear values (lateral load resistance, with A15 washer): 1.2 mm steel: 0.98 kN.

– Design values:

  • Pull out values (axial load resistance, to BS 5427): 1.2 mm steel: 0.98 kN; 2 mm steel: 1.97 kN; 3 mm steel: 3.58 kN; Softwood 35 mm embedment: 2.68 kN.
  • Pull through values (axial load resistance, to BS 5427): Composite panel with A15 washer: 0.75 kN.
  • Shear values (lateral load resistance, with A15 washer): 1.2 mm steel: 0.74 kN.

Other figures and specific testing are available on request - consult manufacturer for information.
