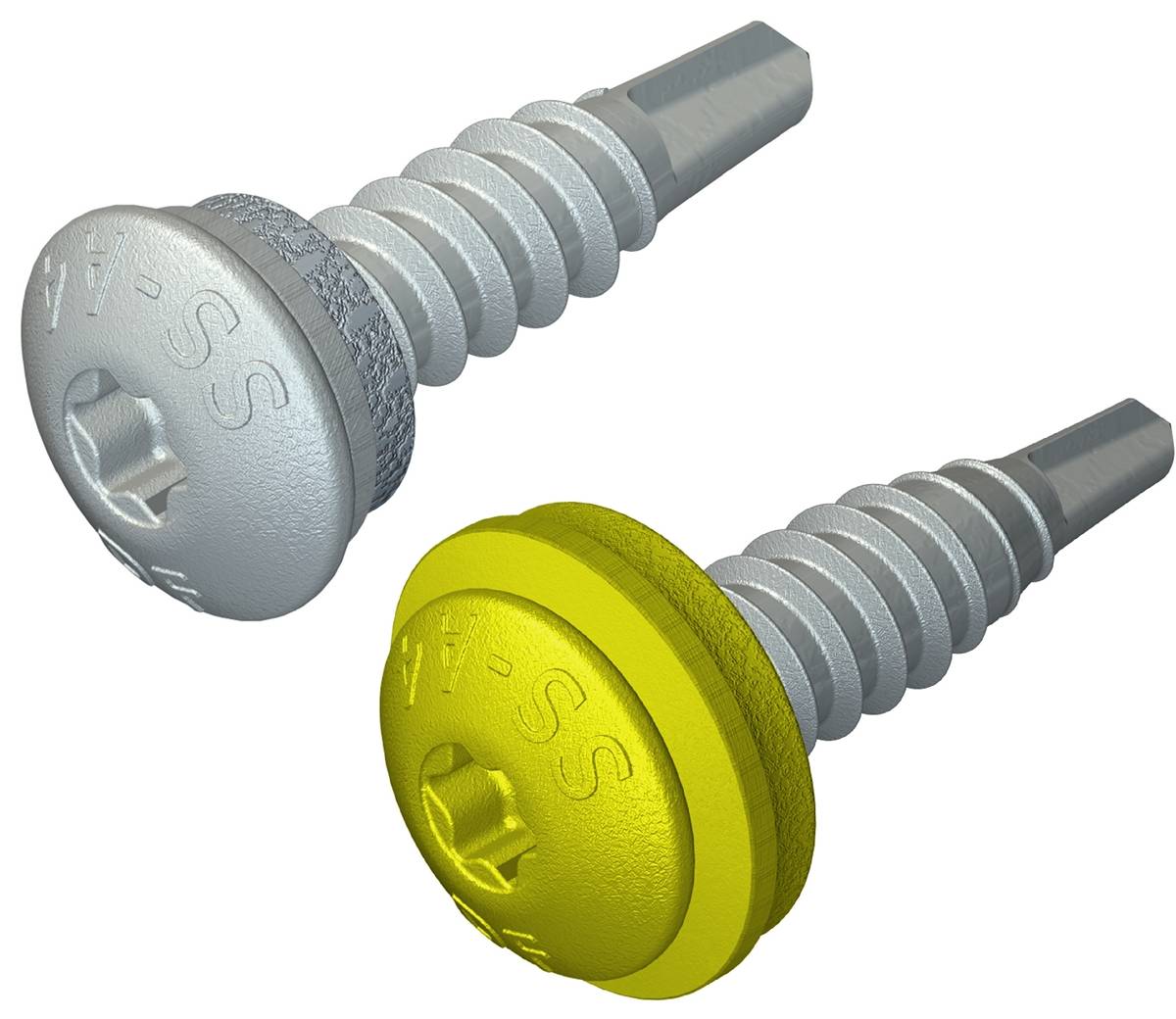

DrillFast® A4 DF2-SSA4-P(L) Low Profile Stitching Fasteners

Verified by manufacturer 3 days ago

DF2-SSA4-P(L)-S10-4.8 x 20

Fixfast Ltd Variant:
Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

Stainless steel self-drilling fasteners for stitching roofing and cladding sheets.

Jump to:
+44 (0)1732 882387 Website

Application

For mechanically fixing (stitching) two metal sheets up to 1 mm thick together.

Description

Stainless steel self-drilling fasteners for roofing and cladding.


Features and benefits:

  • Warranted fasteners with £20 million UK insurance cover
  • A4/ 316 stainless steel for optimum resistance to corrosion
  • Bi-metal manufactured for superior drilling performance
  • Low-profile head for discreet finish which may be powder coated for precise colour matching
  • Excellent pull-out and shear performance
  • Purpose designed and precision manufactured
  • Free-spin design helps prevent damage arising from over-driving the fastener
  • ETA Approved
  • CE marked

General information

Color

Silver

Beige

Black

Blue

Bronze

Show more

Finish

Coated

Powder-coated

Material

Stainless steel

Length

20 mm

25 mm

Width

4.8 mm

6.3 mm

Warranty description

40 year

Guidance for specification option:

Up to 40 years, consult manufacturer for details.

Uniclass

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H31/219 Fasteners

H31/120 Metal

H31/10 Metal

Product range

Fastener Systems

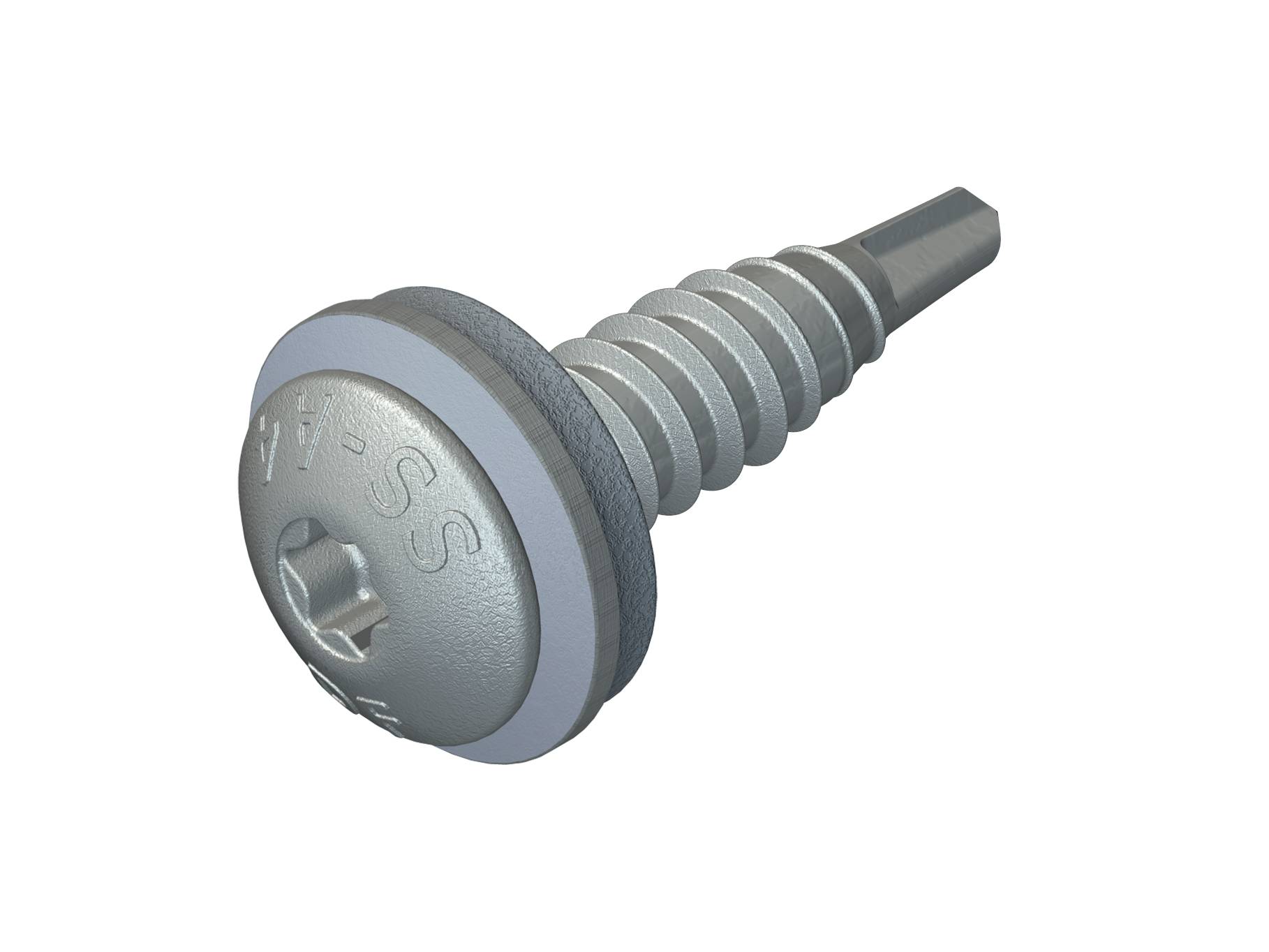

Specification data - Self-drilling screws

Material

1.4401 stainless steel (316M), with carbon steel case hardened welded point.

Finish

Organic coating.

Head type

Low profile pan, TX25 recess.

Size

-

Diameter

4.8 mm.

Length

20 mm.

Washers

Stainless steel/ EPDM.

Execution

-

Manufacturer guidance

See manufacturer's literature for full installation and handling details.

Drilling capacity

Two steel sheets, up to 1 mm-thick each.

Washer

10 mm-diameter washer.

Sustainability data

Material

Stainless steel

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA: Certificate 20/1178
