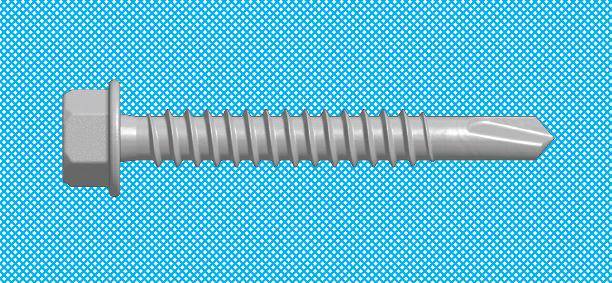

DrillFast® A2/304 Stainless Steel Fasteners for 1.2–3.0 mm Steel

Name: DrillFast® A2/304 Stainless Steel Fasteners for 1.2–3.0 mm Steel
Brand: bEvkDGiS1x2AKvY7QnWkL1
SKU: 7abHUZxGxoUU6gGsJfgB4o

Fixfast Ltd

Stainless steel self-drilling fasteners for roofing and cladding (1.2–3 mm).

Jump to:

+44 (0)1732 882387 www.fixfast.com

Application

Suitable for the mechanical fixing of the following:

Metal sheeting systems to light metal purlins and rails.

Components of steel, aluminium and metal framing systems.

For use in the following locations:

Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.

Buildings with an internal temperature range of -45°C to 50°C.

Coastal locations.

To be fixed with Fixfast GreenDrive (8 mm hexagon integral socket with retaining clip).

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

Stainless steel self-drilling fasteners for roofing and cladding (1.2–3 mm).

Features and benefits:

Grade 1.4301 (304), A2 stainless steel is used for optimum resistance to corrosion.

Bi-metal, manufactured for superior drilling performance.

Good pull-out and shear performance.

Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

Suitable for the mechanical fixing of the following:

Metal sheeting systems to light metal purlins and rails.

Components of steel, aluminium and metal framing systems.

For use in the following locations:

Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.

Buildings with an internal temperature range of -45°C to 50°C.

Coastal locations.

To be fixed with Fixfast GreenDrive (8 mm hexagon integral socket with retaining clip).

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Material

Grade 1.4301 (304) stainless steel with carbon steel case and hardened, welded point

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H92/120 Rainscreen cladding

Specification data - Self-drilling screws

Product Reference

DrillFast® A2/304 Stainless Steel Fasteners for 1.2–3.0 mm Steel, DF3-SS-4.8 x 25

25 x 4.8 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Fasteners for 1.2–3.0 mm Steel, DF3-SS-5.5 x 25

25 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Fasteners for 1.2–3.0 mm Steel, DF3-SS-5.5 x 35

35 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Fasteners for 1.2–3.0 mm Steel, DF3-SS-5.5 x 55

55 x 5.5 mm (l x diameter).

Washers

Required

Consult manufacturer for information.

Not required

Standard product features

Material:

Grade 1.4301 (304) stainless steel with carbon steel case and hardened, welded point.

Coating:

Organic.

Head type:

Hexagon, 8 mm.

Drilling capacity:

1.2–3 mm (steel).

Minimum penetration (light steel purlins):

19 mm (through underside).

Build up:

0–33 mm (dependent on washer used).

Durability class:

Interior environments: C1 (30).

Semi-interior: 25.

Urban: C2 (25).

Rural: C3 (25).

Industrial/ coastal: C4 (15).

Marine: C5.

Technical characteristics:

– Characteristic values:

Pull out values (axial load resistance, to BS 5427): On 1.2 mm steel: DF3-SS-4.8: 1.20 kN; DF3-SS-5.5: 1.30 kN; on 2 mm steel: DF3-SS-4.8: 2.19 kN; DF3-SS-5.5: 2.62 kN; on 3 mm steel: DF3-SS-4.8: 4.10 kN; DF3-SS-5.5: 4.76 kN.

Pull through values (axial load resistance): 0.5 mm steel sheet with A15 washer: 3.33 kN.

Shear values (lateral load resistance, with no washer): DF3-SS-4.8, 1.2 mm steel: 1.81 kN; DF3-SS-5.5, 1.2 mm steel: 1.95 kN.

– Design values:

Pull out values (axial load resistance, to BS 5427): On 1.2 mm steel: DF3-SS-4.8: 0.84 kN; DF3-SS-5.5: 0.98 kN; on 2 mm steel: DF3-SS-4.8: 1.65 kN; DF3-SS-5.5: 1.96 kN; on 3 mm steel: DF3-SS-4.8: 3.08 kN; DF3-SS-5.5: 3.58 kN.

Pull through values (axial load resistance): 0.5 mm steel sheet with A15 washer: 2.50 kN.

Shear values (lateral load resistance, with no washer): DF3-SS-4.8, 1.2 mm steel: 1.36 kN; DF3-SS-5.5, 1.2 mm steel: 1.47 kN.

Other figures and specific testing are available on request - consult manufacturer for information.
