Description

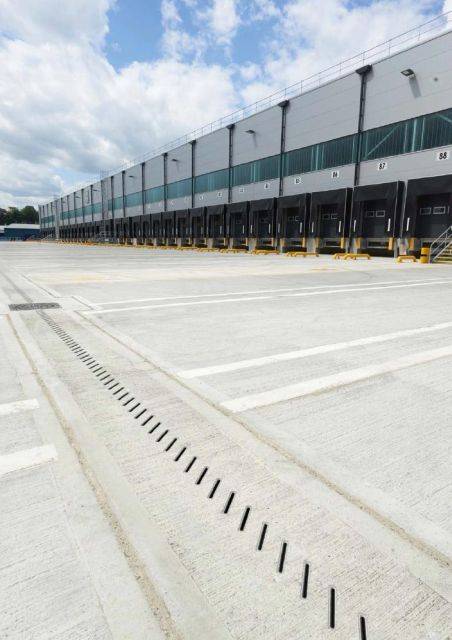

Drexus XL is a recycled polyethylene (PE) channel, ideally suited for high capacity, heavy duty projects covering any load class from busy service yards, rail ports, docking ports and airports with severe dynamic transport loading to motorways and commercial outlets.

The product is designed to offer attenuation and storage facilities but also to achieve sufficient flow velocities at a low gradient to ensure that the channels require minimal maintenance. The in-situ surface finish is designed to integrate seamlessly into concrete or black top surfaces.

All components are special order.

General information
Specification data - Linear slot drainage channels
Product Reference

Drexus XL

Constant depth channel

DR537010

325 channel. Width: 300 mm. Invert width: 188 mm. Depth: 585 mm. Invert depth: 505 mm. Weight: 13 kg.

DR537020

425 channel. Width: 483 mm. Invert width: 319 mm. Depth: 723 mm. Invert depth: 631 mm. Weight: 20 kg.

DR537030

525 channel. Width: 543 mm. Invert width: 379 mm. Depth: 813 mm. Invert depth: 721 mm. Weight: 23 kg.

DR537040

675 channel. Width: 644 mm. Invert width: 482 mm. Depth: 949 mm. Invert depth: 857 mm. Weight: 27 kg.

DR537050

825 channel. Width: 707 mm. Invert width: 586 mm. Depth: 1106 mm. Invert depth: 1014 mm. Weight: 32 kg.

Channel transition

DR538010

325-425 (Enlarger). Width: 300/ 489 mm. Invert width: 214/ 322 mm. Depth: 348/ 542 mm. Invert depth: 292/ 463 mm. Weight: 3.5 kg.

DR538020

425-525 (Enlarger). Width: 543/ 489 mm. Invert width: 322/ 379 mm. Depth: 542/ 592 mm. Invert depth: 463/ 527 mm. Weight: 4.6 kg.

DR538030

525-675 (Enlarger). Width: 543/ 644 mm. Invert width: 379/ 476 mm. Depth: 592/ 732 mm. Invert depth: 527/ 664 mm. Weight: 5.9 kg.

DR538040

675-825 (Enlarger). Width: 644/ 706 mm. Invert width: 476/ 582 mm. Depth: 732/ 890 mm. Invert depth: 664/ 821 mm. Weight: 7.6 kg.

DR538110

425-325 (Reducer). Width: 489/ 300 mm. Invert width: 322/ 214 mm. Depth: 542/ 348 mm. Invert depth: 463/ 292 mm. Weight: 3.25 kg.

DR538120

525-425 (Reducer). Width: 543/ 489 mm. Invert width: 379/ 322 mm. Depth: 592/ 542 mm. Invert depth: 527/ 463 mm. Weight: 4.5 kg.

DR538130

675-525 (Reducer). Width: 644/ 543 mm. Invert width: 476/ 379 mm. Depth: 732/ 592 mm. Invert depth: 664/ 527 mm. Weight: 5.8 kg.

DR538140

825-675 (Reducer). Width: 706/ 644 mm. Invert width: 582/ 476 mm. Depth: 890/ 732 mm. Invert depth: 821/ 664 mm. Weight: 7.5 kg.

End cap

DR537910

325 end cap. Weight: 1 kg.

DR537920

425 end cap. Weight: 2.5 kg.

DR537930

525 end cap. Weight: 3 kg.

DR537940

675 end cap. Weight: 4.5 kg.

DR537950

825 end cap. Weight: 5.5 kg.

Outfall accessories

DR538410

325 AC connector, right handed. Weight: 2.6 kg.

DR538420

425 AC connector, right handed. Weight: 3.9 kg.

DR538430

525 AC connector, right handed. Weight: 5 kg.

DR538440

675 AC connector, right handed. Weight: 7 kg.

DR538450

825 AC connector, right handed. Weight: 9 kg.

DR538510

325 AC connector, left handed. Weight: 2.5 kg.

DR538520

425 AC connector, left handed. Weight: 3.9 kg.

DR538530

525 AC connector, left handed. Weight: 4.9 kg.

DR538540

675 AC connector, left handed. Weight: 6.9 kg.

DR538550

825 AC connector, left handed. Weight: 9 kg.

DR538905

325-525 Access chamber and cover. Weight: 11.5 kg.

DR538910

325-525 AC and silt box. Weight: 26.5 kg.

DR538920

675-825 Access chamber and cover. Weight: 15 kg.

DR538925

675-825 AC and silt box. Weight: 41.5 kg.

Standard product features

Loading:

B125–F900.

Product Options

Constant depth channel:

Length: 2000 mm.

Channel transition:

Length: 478 mm.
