Drexus Slot Drain - Surface Water Drainage

Verified by manufacturer 3 months ago

DR5410150: 0/0 1000 No-rail Channel

Marshalls Civils & Drainage Variant:

Low-capacity linear drainage system.

Jump to:
+44 1179 814500 Website

Application

  • Suitable for all locations as described in BS EN 1433 : 2002 for load classification D400.
  • Suitable for use across a range of applications and public developments.

Description

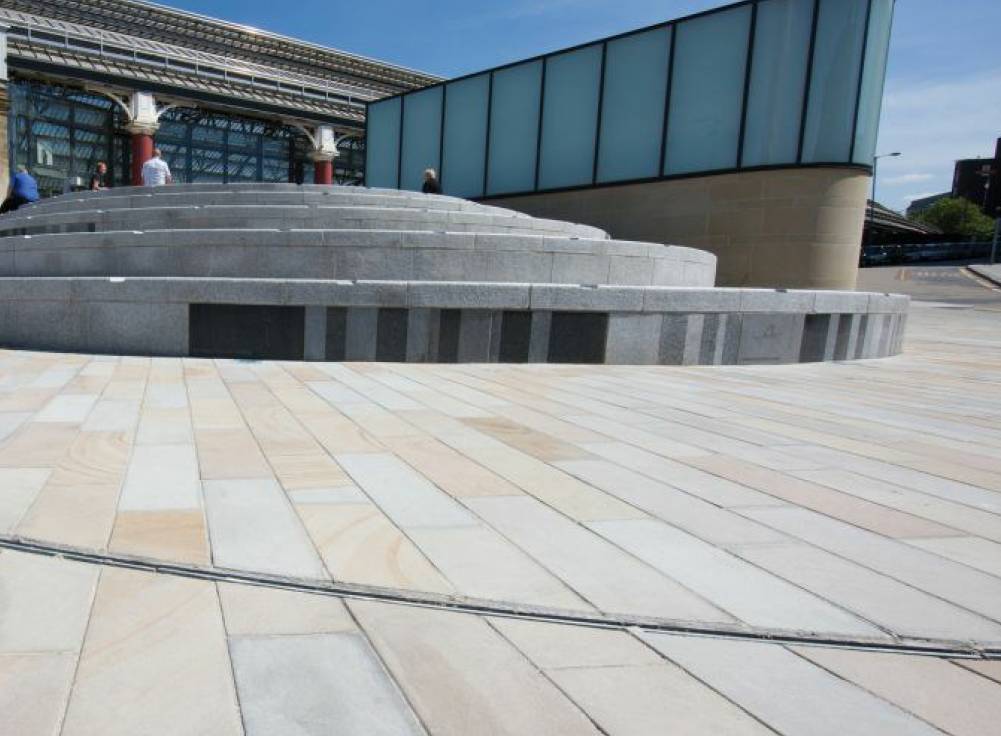

Marshalls Civils & Drainage Drexus Slot Drain is a solution for projects requiring an effective drainage solution that doesn't compromise on the aesthetics of the overall landscape.

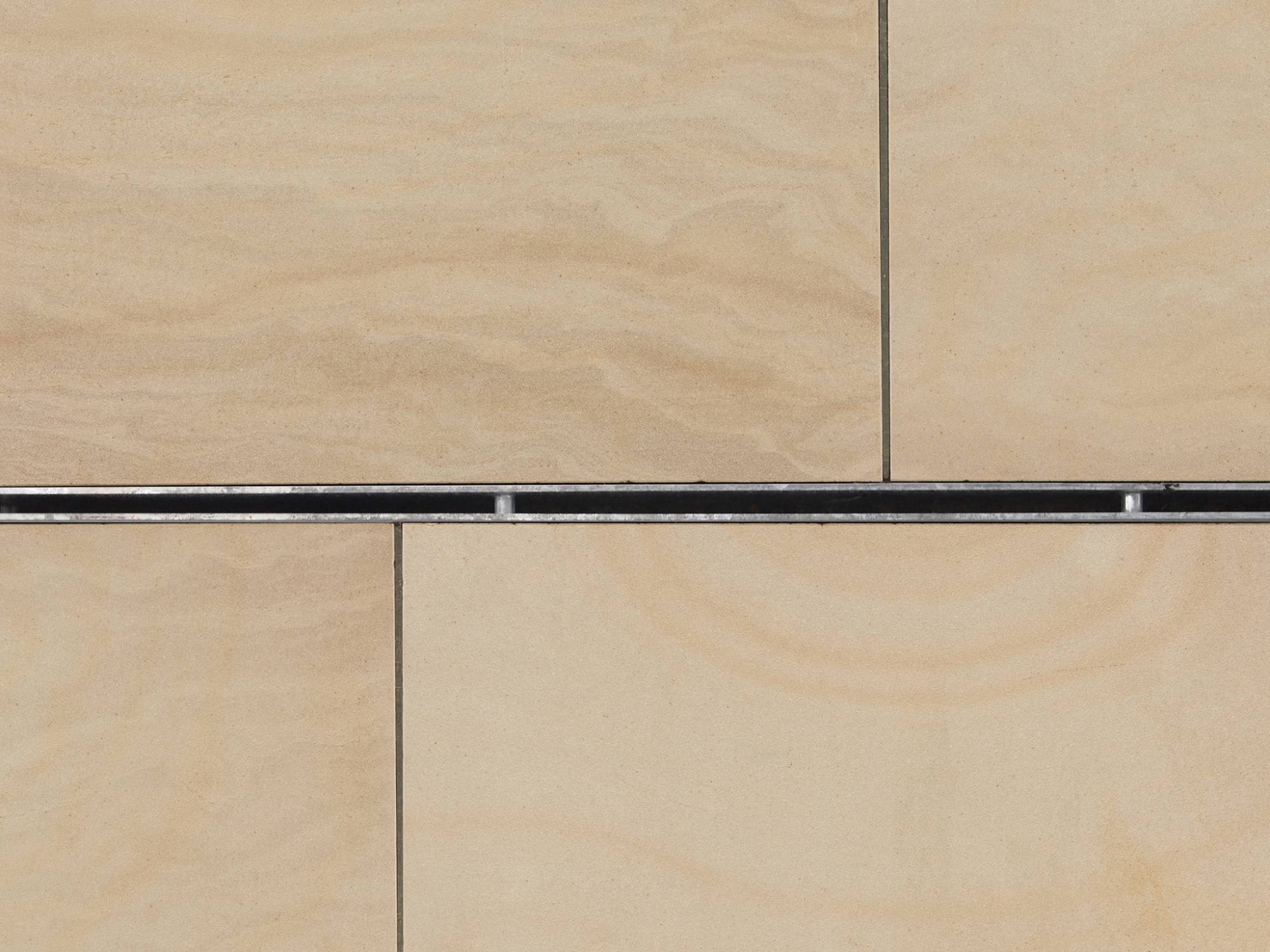

Particularly well suited to natural stone applications, the low-capacity Drexus Slot Drain hides the Drexus 100 channel beneath a galvanized steel slot, featuring slimline mono or duo linear aperture.


Suitable for use across a range of applications and public developments, Marshalls Civils & Drainage can also design and manufacture a bespoke Drexus Drain Slot to meet project requirements including true radius curved apertures and stainless steel finishes.


Features and benefits:

  • Suitable across a range of applications
  • Can integrate into Natural Stone product-based landscapes
  • Low capacity drainage
  • Bespoke options available

General information

Color

Grey

Material

Concrete

Steel

Shape

Rectangle

Length

500 mm

1000 mm

Width

160 mm

Height

154 mm

179 mm

204 mm

229 mm

254 mm

Uniclass

Pr_65_52_24_47 Linear slot drainage channelsPrimary

CAWS

Q10/170 Linear slot drainage channel systems

Q10/30 Linear slot drainage channel system

Specification data - Linear slot drainage channels

Standard

To BS EN 1433.

Certification

BSI Kitemark: ISO 14001; ISO 45001; ISO 9001.

Material

Concrete.

Slot body

-

Material

Steel.

Upstand height

105 mm.

Load class (minimum)

D400.

Channel unit dimensions

-

Width (nominal)

160 mm.

Overall depth

154 mm.

Length

1000 mm.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirement.

Height

170 mm.

Drain

Duo Slot Drain 1000 Top.

Guidance for specification option:

DR5445100

  • Length: 1000 mm.
  • Made to order.

Duo Slot Drain 500 Top.

Guidance for specification option:

DR5446100

  • Length: 500 mm.
  • Made to order.

Mono Slot Drain 1000 Top.

Guidance for specification option:

DR5445200

  • Length: 1000 mm.
  • Made to order.

Mono Slot Drain 500 Top.

Guidance for specification option:

DR5446200

  • Length: 500 mm.
  • Made to order.

Offset Duo Slot Drain 1000 Top.

Guidance for specification option:

DR5445300

  • Length: 1000 mm.
  • Made to order.

Show more

Apparent density

2280 kg/m³.

Water absorption

Grade 2.

Reaction to fire

Class A1.

DischargeCrossSection

7300—22300 mm².

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Concrete

Steel

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

9.8 kg CO₂ eq/kg

Self declared

Recyclability

100%
