Dreen®Elegance - Rooftop paving

Verified by manufacturer 4 months ago

Zoontjens

Complete lighter weight paving and pedestal system.

Jump to:
07435 963770 Website

Application

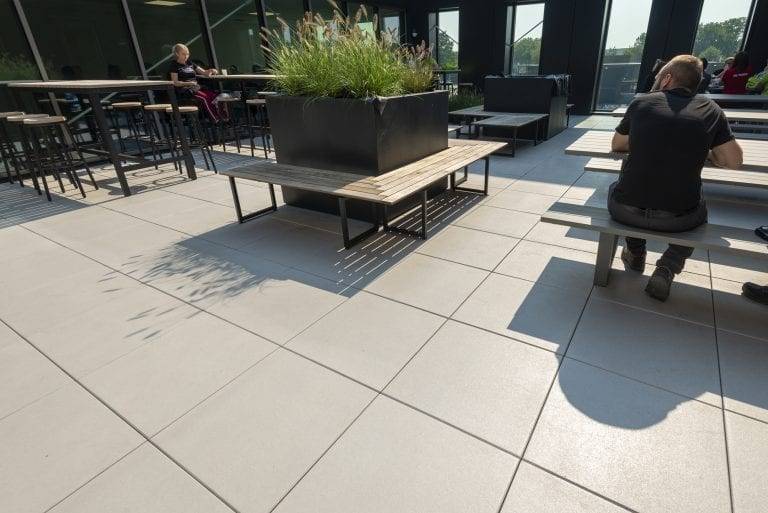

Suitable for rooftop areas and higher grounds requiring high aesthetics.

Description

Dreen®Elegance is a complete lighter weight coated paving and pedestal system designed for areas where high aesthetics are required. The support system combines aesthetic form and function, offering adjustable heights and a variety of colours and textures.


Features and benefits:

  • Stylish.
  • Complete system.
  • Stable solution.
  • Coated for easy maintenance.
  • Adjustable heights from 15 mm to 500 mm.
  • Light weight concrete paving.
  • High quality natural aggregate top layer surface.
  • Non-combustible metal and Broof(4) plastic pedestal solutions.
  • Can bonded to act monolithically and resist wind uplift.
  • Available in two colours from light to dark.

General information

Color

Black

Grey

Finish

Anti-slip

Anti-skid

Blasted

Manufacturer guidance

NPD textured surface.

Material

Concrete

Metal

Plastic

Shape

Square

Length

600 mm

Width

600 mm

Height

40 mm

Uniclass

Ss_30_14_90_34 Flag and slab pedestal-supported paving systemsPrimary

CAWS

Q25/127 Pedestal supported paving slab/ flag system

Q25/480 Support pedestals

J42/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J41/90 Precast concrete paving slabs

J21/465 Precast concrete paving slabs

J21/467 Support system for precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

Specification data - Flag and slab pedestal-supported paving systems

System performance

To BS EN 1339, ISO 09001 and ISO 14001.

Pedestals

Adjustable pedestals, non-combustible metal.

Guidance for specification option:

  • EPDM pad (97 x 97 x 1 mm) for application between fixplate and slab.
  • Adjustable base (35–50 mm), adjustable base (50–74 mm), height adjustable ring (48 mm), height adjustable ring (24 mm), height adjustable ring (13 mm) and fixplate.
  • Heights between 15 mm and 500 mm, insert requirements.

Adjustable pedestals, Broof(t4) plastic.

Guidance for specification option:

  • EPDM pad (97 x 97 x 1 mm) for application between fixplate and slab.
  • Adjustable base (35–50 mm), adjustable base (50–74 mm), height adjustable ring (48 mm), height adjustable ring (24 mm), height adjustable ring (13 mm) and fixplate.
  • Heights between 15 mm and 500 mm+, insert requirements.

Paving units

Concrete paving slabs.

Applied surface features

Slip/ skid-resistance, NPD.

Samples required

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Unit dimensions

600 x 600 x 40 mm.

Weight

32.4 kg (per slab); 90 kg/m².

Unit

2.78 /m².

Guidance for specification option:

19 per UK pack.

Manufacturer guidance

Number per m².

Reaction to fire

A1.

Breaking strength

>3.6 mpa.

CO2Content

8 kg/m².

Thickness tolerance

±0.5 mm.

Tolerances

±2 mm.

Manufacturer guidance

Length and width tolerance.

Load at fracture

7 kN.

Edge

3 x 3 mm.

Manufacturer guidance

Bevelled edge.

Colour

Greige.

Grigio.

Perla.

Carbono.

Sustainability data

Country of product manufacture

Belgium

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

CO2 content:

  • 8 kg/m2.
  • <70% CO2 over normal cement products.

Recyclability

May be crushed for aggregate or reused

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Manufacturer guidance

High recycled content.

Literature

Dreen Elegance

Dreen Elegance

Dreen Elegance colour chart

Dreen Elegance colour chart
