Drainjoint : Permeable Paving Solution - Permeable paving
Verified by manufacturer 2 months ago
Add permeability to almost every paving materials.
Application
- For residential and commercial applications.
- For use on standard permeable sub-base with sand joints as per Interpave and BS EN standards.
- Suitable for paved areas with pedestrian and vehicular traffic.
Description

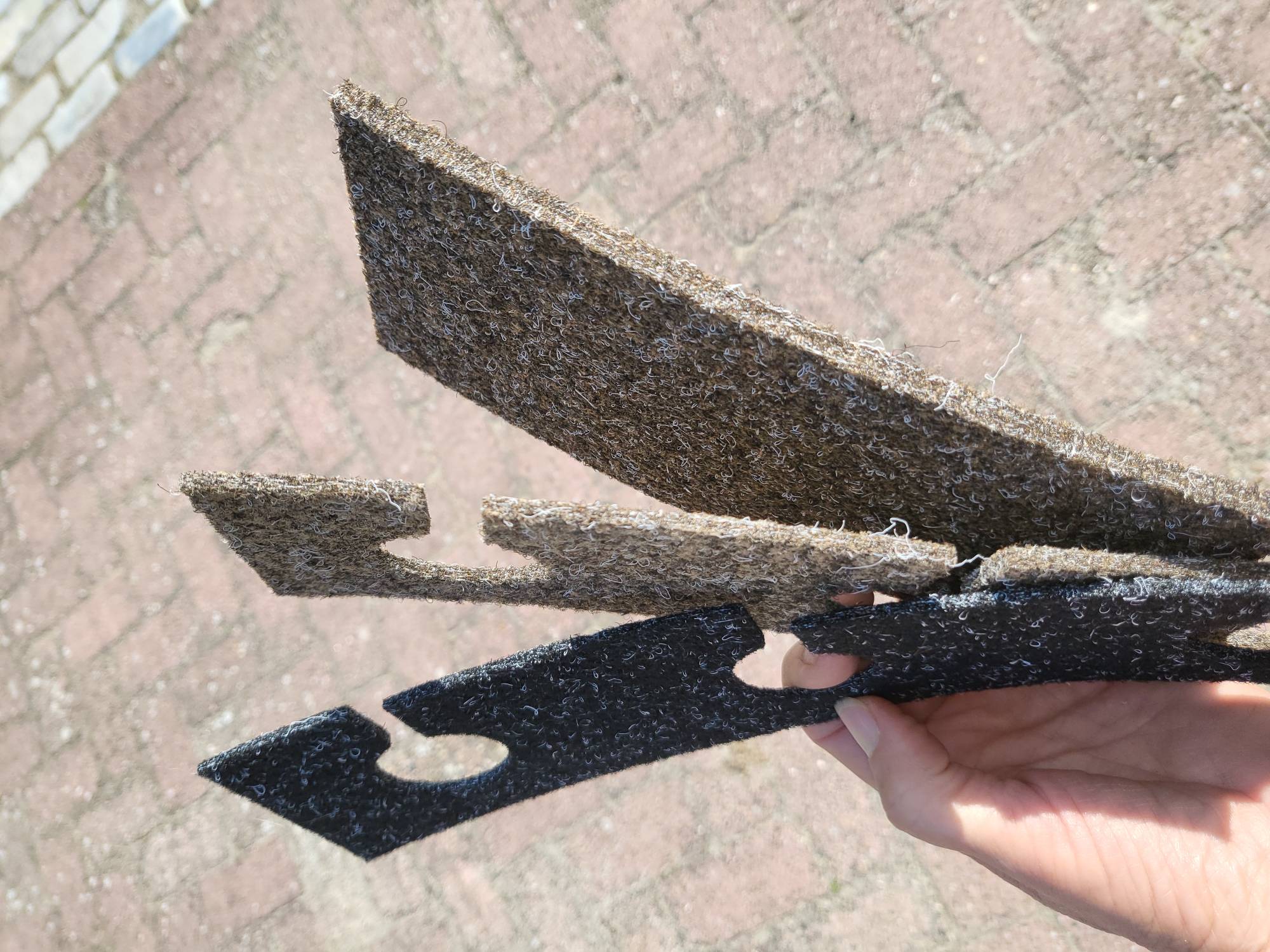

Drainjoint allows for any material to be laid as a permeable paving system, be it natural stone, clay or concrete, and it can accommodate any paving size (not just those designed for a 6 mm aggregate joint). No aggregate joints mean no continuous maintenance or rattling of blocks. No rattling reduces the potential for surface failure and eradicates the need for expensive re-jointing. Paving can be cleaned with a standard mechanical sweeper and, as Drainjoint is non-degradable and does not absorb water, there is no potential for freeze-thaw damage.
Features and benefits:
- Custom-made to suit the size of the blocks.
- Does not require additional surface drainage.
- DEFRA compliant design service.
- Paving can be laid to 'no falls'.
- Sustainable, cost-effective and easy to install.
General information
Color | Brown Black |
Material | Polypropylene Polyethylene |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q24/12 Permeable concrete block paving Q10/185 Filtration drainage channels Q24/115 Permeable concrete block paving – total infiltration Q24/124 Permeable clay paver paving – total infiltration |
Specification data - Permeable laying course aggregates
Material | Polypropylene (PP) and polyethylene (PE). |
Thickness | 4 mm. Guidance for specification option: Standard. 8 mm. Guidance for specification option: For areas that require extra permeability. |
Colour | Black. Brown. |
Form | With circular holes. Guidance for specification option: For areas subject to vehicular traffic. Without circular holes. Guidance for specification option: For pedestrian-only areas. |
Sustainability data
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Polypropylene Polyethylene |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceData available upon request. |
Recyclability | Manufacturer guidanceData available upon request. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceData available upon request. |
Literature
Drainjoint
Case studies
Chain Street, Bradford
Paul Street, Shoreditch
