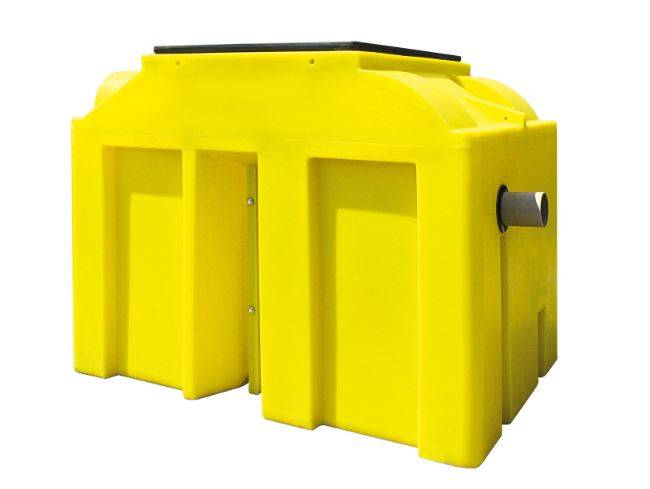

Drainage ST7 Grease Separator Without Desilter Chamber
Verified by manufacturer 5 months ago
An environmentally friendly, economical solution to separate the pollution content from wastewater.
Application
Applications include:
- Catering facilities/ food industry.
- Meat processing and meat-packing facilities.
- Butchers.
- Slaughterhouses.
- Restaurants, pubs and canteens.
- Fish and chip shops.
- Cake shops and bakeries.
- Industrial cooking facilities.
Description
An environmentally friendly, economical solution to separate the pollution content from wastewater. Designed for underground installation, the density difference between water and grease naturally separates the two as wastewater flows through the separator. Fat and oil particles float on the surface of the wastewater creating a layer of increasing thickness which should be regularly removed, while heavy substances fall to the bottom forming a sludge.
Features and benefits:
- Resistant to aggressive fatty acids.
- High durability.
- Designed for easy cleaning.
- Mitigates the risk of clogging pipework, drains and sewage pumping systems.
- Unit complete with cover (PKP 950) pedestrian rated.
- Can be equipped with an anti-foaming system to prevent the foaming that occurs in wastewater with potato starch content.
General information
Color | Yellow |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |

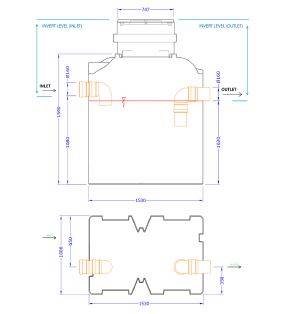

Length | 1530 mm |
Width | 1000 mm |
Height | 1590 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | R11/46 Grease traps and converters R11/380 Grease traps and converters |
Specification data - Below-ground grease separators and converters
Standards | To BS EN 1825. |
Material | Plastics.Guidance for specification option: HDPE. |
Size (nominal) | 2100 L/s. |
Connections | |
Inlet pipe diameter | DN 160. |
Outlet pipe diameter | DN 160. |
Integral accessories | Handles. |
NominalFlowrate | 7 L/s. |
Heights | 1080 mm (inflow height). |
Accessories | Not required. Extension risers for manhole cover. ‘Overflow’ and ‘fat layer thickness’ alarms. Round adapter for cast iron manhole covers. |
Sustainability data
Material | High density polyethylene (HDPE) |
Literature

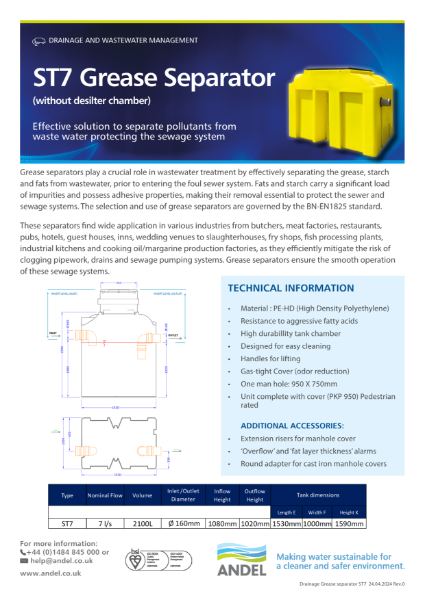

ST7 Grease Separator Data Sheet
