Drainage Rainwater Tank

Verified by manufacturer 3 days ago

ANDEL RAIN 2000

Andel Ltd Variant:

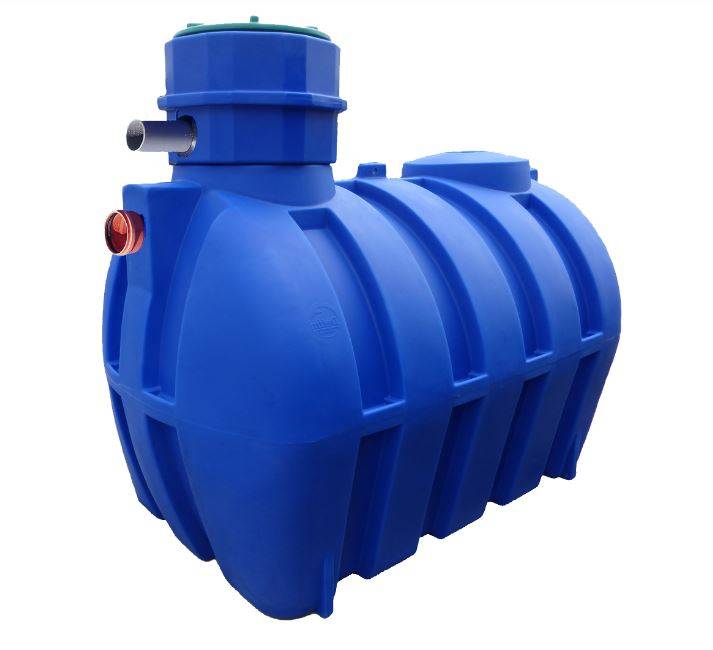

Rainwater Harvesting Tank

Jump to:
+44 (0)1484 845000 Website

Application

Installed underground and can be part of a garden irrigation system, a power supply for domestic sanitary installations and also groundwater recharge.

Description

Andel rainwater harvesting tanks are installed underground and can be used for a variety of purposes such as irrigation, domestic use and groundwater recharge. The tank is used for the collection and storing of rainwater from rooftops, gutters and other drainage areas for future use.


Built from monolithic high-density polyethylene (HDPE), known for its high strength and impact resistance. The tank is also reinforced with ribbing and contains no joints or welds, enabling for a quicker and easier installation.


Features and benefits:

  • Can reduce mains water consumption by up to 40%.
  • Reduces the strain on stormwater drainage systems.
  • Can be supplied with or without pumps.
  • Mitigates the risk of flooding from excessive rainfall.
  • Fitted with an overflow mechanism which means that once a tank is full, excess water is redirected into the stormwater drainage system.
  • Retains water close to source.
  • Reduces site runoff and flood peaks.
  • Provides freedom from imposed water use restrictions during droughts.
  • It is environmentally friendly and reduces stormwater run-off, mitigating the risk of flooding.
  • Harvesting can alleviate water scarcity, reduce the reliance on mains water and promote sustainable water management.

General information

Color

Blue

Material

High density polyethylene (HDPE)

Shape

Other

Length

2000 mm

2300 mm

2340 mm

2400 mm

Width

1260 mm

1400 mm

1700 mm

1800 mm

Height

1700 mm

1900 mm

2020 mm

2200 mm

Material

High density polyethylene (HDPE)

Uniclass

Pr_60_50_96_64 Polyethylene (PE) tanksPrimary

CAWS

R12/460 Storage tanks

Specification data - Polyethylene (PE) tanks

Arrangement

Underground.

Capacity (minimum)

2000 L.

Accessories

Not required.

Rain filter.

Two way valve.

Pumps.

Weight

114 kg.

Dimensions

2000 x 1700 x 1260 mm.

Guidance for specification option:

L x H x W.

Heights

1350 mm (inflow height).
1320 mm (outflow height).

Sustainability data

Material

High density polyethylene (HDPE)

Literature

Rainwater Harvesting Tank Data Sheet

Rainwater Harvesting Tank Data Sheet
