product no longer available -

Description

Screwjack pedestal system for support of external raised paving, decking or internal raised floors.

  • Enables drainage without visible grilles.
  • Allows access throughout to concealed services.
  • Load (maximum each pedestal): 1000 kg. Specific recommended maximum load varies with pedestal height, pitch of substrate, symmetry of loading and internal or external application.
  • Pedestal height: 17–1070 mm.
  • Slope corrector fitted to top of pedestal, adjustable in half-degree increments. Suitable for pitched substrates (maximum): 5 %.
  • Choice of pedestal material. Resistant to weather, UV, chemical products. Electrically non-conductive. Not susceptible to galvanic corrosion.
  • Choice of spacer tabs suitable for joint width of topping material.

Usage:

  • In conjunction with platform materials including concrete, metal grid, natural stone, terrazzo, fibreglass grating, temporary platforms, garden buildings or wood. Platform can be gravity laid or fixed to pedestal head. Also available in clear polypropylene (please request information)
  • As support of the visible bottom surface of water features over service voids.
  • Industrial floors. Not suitable for support of vibrating machinery.
  • Temporary installations.

Compliance:

Conforms to French standard DTU.43.1 for water resistance of flat roofs and inclined roofs with a masonry structural member in a lowland climate.

General information
Material

Copolymer polypropylene

Shape

Circular

Size

200 x 155 mm

Uniclass 2015 Decking and paving pedestals (Pr_20_85_47_22)
Specification data
Product Reference

DPH Pedestal System

Pedestal -
Type

DPH0

Fixed height 17 mm.

DPH0 with PH5 slope corrector

Fixed height (nominal) 26 mm; adjustable angle.

DPH1

Fixed height 28 mm.

DPH1 with PH5 slope corrector

Fixed height (nominal) 37 mm; adjustable angle.

DPH02

Adjustable height (nominal) 25–36 mm.

DPH02 with PH5 slope corrector

Adjustable height (nominal) 34–45mm; adjustable angle.

DPH2

Adjustable height 35–53 mm.

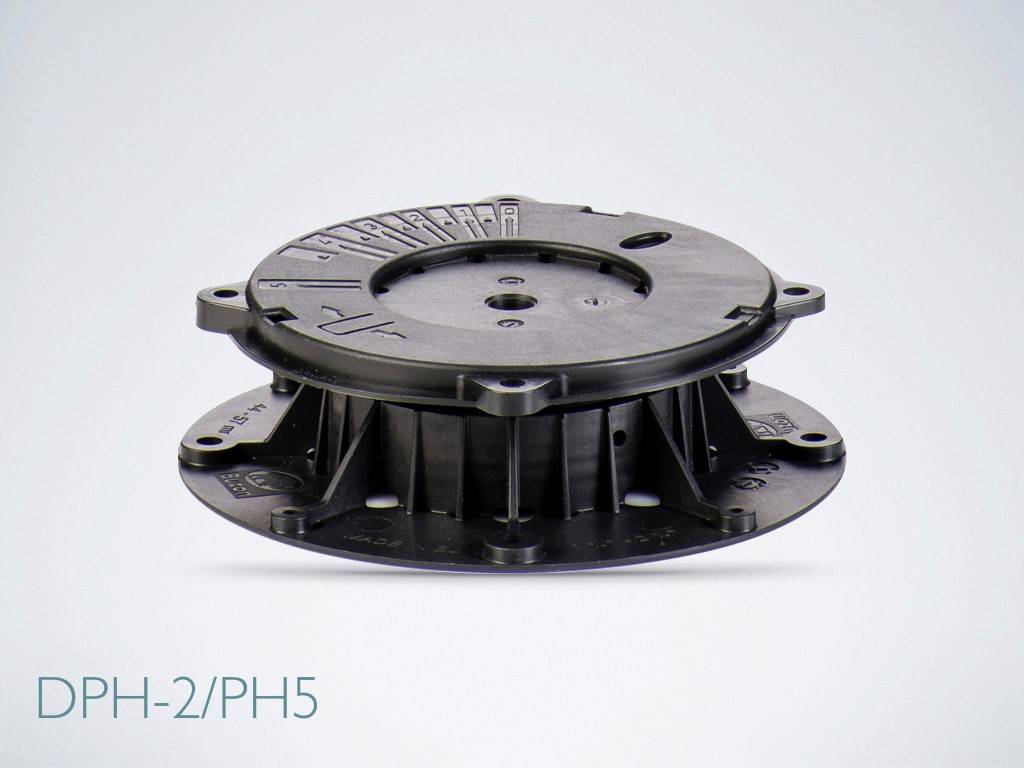

DPH2 with PH5 slope corrector

Adjustable height (nominal) 44–57 mm; adjustable angle.

DPH3

Adjustable height 50–78 mm.

DPH3 with PH5 slope corrector

Adjustable height (nominal) 55–79 mm; adjustable angle.

DPH4

With integrated PH5 slope corrector, adjustable height (nominal) 78–108 mm; adjustable angle.

DPH5

With integrated PH5 slope corrector, adjustable height (nominal) 100–175 mm; adjustable angle.

DPH6

With integrated PH5 slope corrector and C2 coupler (x1), adjustable height (nominal) 175–285 mm; adjustable angle.

DPH7

With integrated PH5 slope corrector and C5 coupler (x1), adjustable height (nominal) 285–400 mm; adjustable angle.

DPH8

With integrated PH5 slope corrector and C2 coupler (x1) and C5 coupler (x1), adjustable height (nominal) 355–515 mm; adjustable angle.

DPH9

With integrated PH5 slope corrector and C5 couplers (x2), adjustable height (nominal) 465–625 mm; adjustable angle.

DPH10

With integrated PH5 slope corrector and C2 coupler (x1) and C5 couplers (x2), adjustable height (nominal) 545–750 mm; adjustable angle.

DPH11

With integrated PH5 slope corrector and C5 couplers (x3), adjustable height (nominal) 645–850 mm; adjustable angle.

DPH12

With integrated PH5 slope corrector and C2 coupler (x1) and C5 couplers (x3), adjustable height (nominal) 720–960 mm; adjustable angle.

DPH13

With integrated PH5 slope corrector and C5 couplers (x4), adjustable height (nominal) 830–1070 mm; adjustable angle.

To suit levels as drawing

Material

Glass fibre reinforced polyester

Self extinguishing. 20% talc loaded.

Polycarbonate, transparent

Nonstandard option.

Polypropylene copolymer

20% talc loaded.

Spacer tabs

Not required

NB All tabs are 25 mm unless otherwise stated.

2 mm

Nonstandard option. Requires level topping installed to fine tolerances.

3 mm (17 mm high)

4.5 mm

4.5 mm (17 mm high)

6 mm

8 mm

10 mm

As drawing

Attachment

Gravity lay

Large pedestal base allows direct placement on waterproof membrane.

Mechanical fix

Platform attaching

Gravity laid panels

Joist support plate with plug and pin clip

Timber decking.

Mechanical fix, using Buzon plugs, pin clips and flat head pins

Standard product features

Adjustment:

- Height:

Base, couplers and head are threaded for assembly and height adjustment. Secured by safety clips. Releasable by insertion of pointed object. May be supplemented by 1 or 2 mm rubber shims.

- Pitch:

By rotation of slope corrector. Secured by insertion of pin.

Components:

- Base unit:

Diameter 200 mm. Includes external flange with four 4 mm holes and four 8 mm holes for fixings to substrate. Female with internal threading.

- Intermediate coupler:

Lower part male with external trading. Upper part female with internal threading.

- Head:

Diameter 155 mm. Includes hole for insertion of spacer tabs.

Product Options

Spacer tabs:

Clip into hole in Head. Spacer size determines joint width in decking. Special spacers available - consult Buzon.

Platform:

- Timber decking:

Decking planks screw fixed to joists. Joists located by joist support plates and secured by screw fixing through side flanges. Joist support plates located by proprietary plugs and pin clips.
