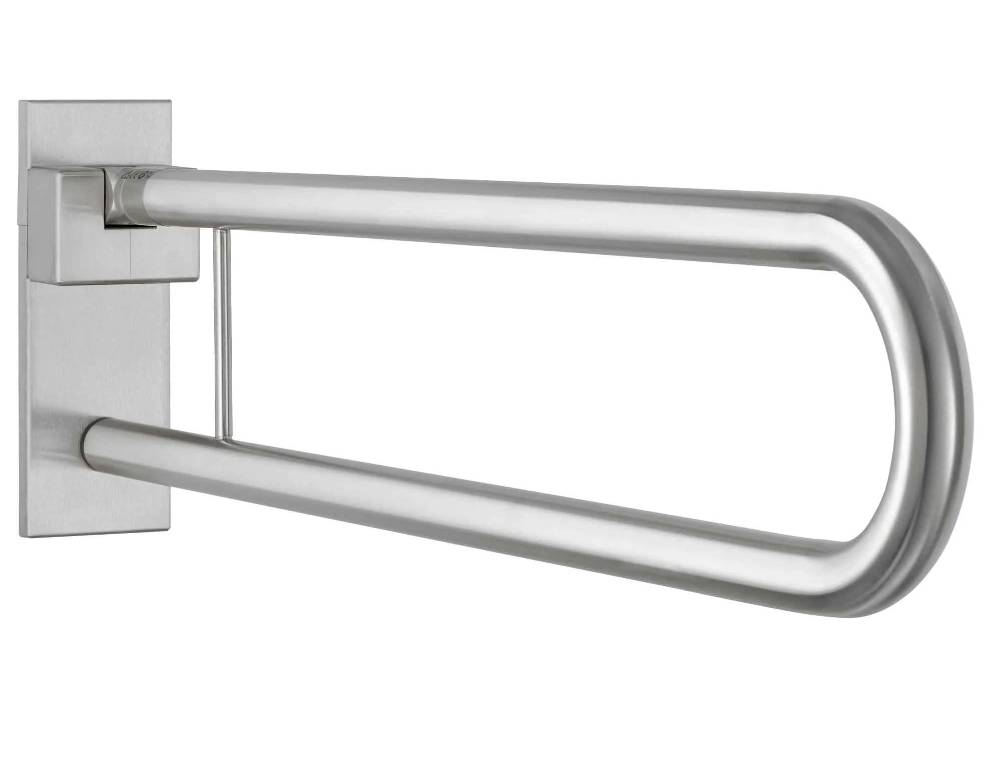

DP670100 / DP670200 / DP670300 Dolphin Prestige Support Rail - Hinged

Verified by manufacturer 3 months ago

DP670100 - Satin, 600 mm

Dolphin Solutions Variant:

Stainless steel hinged support rail.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for wall mounting.

Description

Hinged support rail.


Features and benefits:

  • Manufactured from stainless steel and available in a brushed satin or textured finish.
  • Three projections available: 600, 700 and 850 mm.
  • Easy to clean.
  • Can support weight up to 125 kg.
  • TUV certified in accordance with DIN EN 12182.
  • CE marked in accordance with 93/42 EEC.

General information

Color

Silver

Finish

Satin

Textured

Material

Stainless steel

Shape

Other

Height

250 mm

Uniclass

Pr_40_20_76_84 Support railsPrimary

CAWS

N13/69 Support rails and grab bars

N13/436 Handrails and grab bars

Specification data - Support rails

Form

Hinged.

Diameter

32 mm.

Guidance for specification option:

For an ergonomic grip.

Manufacturer guidance

Outer diameter of tubes.

Materials

-

Body

Stainless steel.

Finish and colour

Satin.

Width

90 mm.

Height

250 mm.

Projection

600 mm.

BendRadius

75 mm.

Clearance

106 mm.

Manufacturer guidance

Clearance from wall.

Mounting

4 mm thick 6-point mounting plate.

Manufacturer guidance

Wall mounting.

Fixings

Anti-theft, with silicone sealing ring at tube joint.

Guidance for specification option:

75 mm in diameter.

Manufacturer guidance

Concealed fixings.

MaximumSupportedWeight

170 kg.

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1
