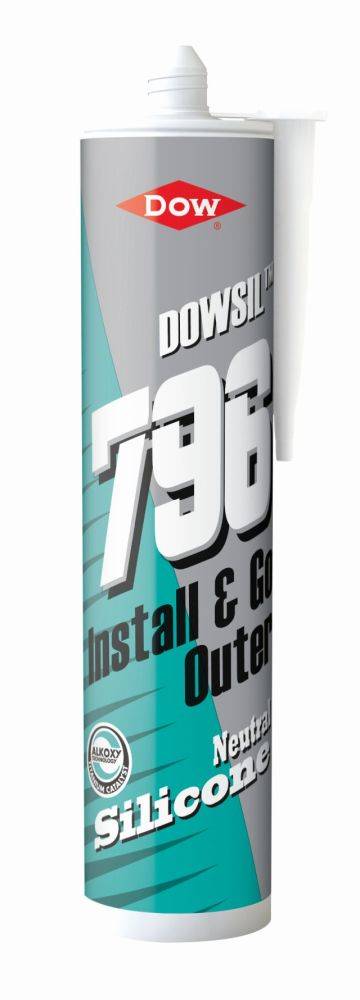

DOWSIL™ 796 PVC-U, Aluminium and Wood Silicone
Description

DOWSIL™ 796 PVC-U, Aluminium and Wood Silicone Sealant is a one-part, low modulus, neutral curing silicone sealant specifically developed for the sealing of PVC-U, glass, glazed surfaces and brickwork. It is very popular for perimeter sealing applications of windows and doors.

Features:

  • Good unprimed adhesion to a variety of substrates.
  • Low modulus, high elasticity.
  • 100% silicone polymer.
  • Neutral cure.
  • Low odour.
  • Conforms to ISO 11600-F&G-25LM.
  • Resistant to ozone, ultra-violet radiation and temperature extremes.

General information

Features

Good unprimed adhesion to a variety of substrates

Low modulus, high elasticity

100% silicone polymer

Neutral cure

Low odour

Conforms to ISO 11600-F&G-25LM

Resistant to ozone, ultra-violet radiation and temperature extremes

Uniclass 2015

Pr_30_31_76_78 Silicone glazing compounds and sealantsPrimary

CAWS

H11/772 Curtain walling joint assembly sealants

H11/777 Weathersealing for structural sealant/ bonded glazing

H30/160 Profiled plastic sheet rooflights or wall lights

H30/20 Profiled plastic rooflight

H30/234 Gutters

H31/10 Metal

H31/110 Metal

H31/120 Metal

H31/150 Profiled plastic sheet rooflights or wall lights

H31/160 Profiled plastic sheet rooflights and wall lights

H31/234 Gutters

H31/30 Profiled plastic sheet rooflights

H32/110 GRP

H32/111 PVC-U

H32/115 Polycarbonate

H32/120 Plastics

H41/655 Sealant jointing proprietary system

H43/150 Profiled plastic sheet rooflights or wall lights (FAIRs)

H43/160 Profiled plastic sheet rooflights or wall lights (FAIRs)

H43/234 Gutters

H43/30 Profiled plastic sheet rooflights and wall lights (FAIRs)

H51/610 Sealant jointing

H51/630 Sealant movement/ Other joints

H71/770 Wedge fixing into joints/ Chases

H71/780 Wedge fixing into damp-proof course joints

H71/790 Screw fixing into joints/ Chases

H71/83 Wedge fixing into joints/ Chases

H71/85 Wedge fixing into damp-proof course joints

H72/65 Wedge fixing into joints/ chases

H72/770 Wedge fixing into joints/ chases

H72/780 Wedge fixing into damp-proof course joints

H72/790 Screw fixing into joints/ chases

H73/73 Wedge fixing into joints/ Chases

H73/770 Wedge fixing into joints/ Chases

H73/780 Wedge fixing into damp proof course joints

H73/790 Screw fixing into joints/ Chases

H74/65 Wedge fixing into joints/ chases

H74/770 Wedge fixing into joints/ chases

H74/780 Wedge fixing into damp proof course joints

H74/790 Screw fixing into joints/ Chases

H75/65 Wedge fixing into joints/ Chases

H75/770 Wedge fixing into joints/ Chases

H75/780 Wedge fixing into damp proof course joints

H75/790 Screw fixing into joints/ Chases

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/245 Ceiling lining on timber

K10/50 Suspended ceiling on metal framing

L10/75 Sealant joints

L10/810 Sealant joints

L20/80 Sealant joints

L20/820 Sealant joints

L40/230 Bead fixed single glazing

L40/250 Bead fixed single glazing

L40/310 Bead fixed single glazing

L40/330 Bead fixed single glazing

L40/350 Bead fixed single glazing

L40/372 Bead fixed insulating glass units

L40/380 Bead fixed insulating glass units

L40/381 Bead fixed insulating glass units

L40/495 U-profiled single glazing

L40/496 U-profiled double glazing

L40/57 Bead fixed insulating glass units

L40/58 Bead fixed insulating glass units

M20/653 Sealant movement joints with stop bead edgings

M40/75 Sealant movement joints

M40/815 Sealant movement joints

Specification data - Silicone glazing compounds and sealants

Product Reference

DOWSIL™ 796 PVC-U, Aluminium and Wood Silicone

Colour

Anthracite

Black

Bronze

Brown

Cream

Dark brown

Golden oak

Green

Grey

Oak

Pine

White

Standard product features

Properties:

- At 23°C (73°F) and 50% RH:

  • Application temperature: 5–40°C.
  • Specific gravity: 1.52.
  • Extrusion rate: 210 g/minute.
  • Skin-over time: 15 minutes.
  • Tack-free time: 35 minutes.
  • Cure rate (1 day/ 3 days): 2.0/ 3.5 mm.

Product Options

Colour:

A range of standard colours. Custom colours also available.
