Application

  • For the gastight and watertight connection on both sides of system seals for cables and cable ducts, providing maximum flexibility for subsequent use.
  • Waterproof concrete stress class 1 and class 2 applications.

Description

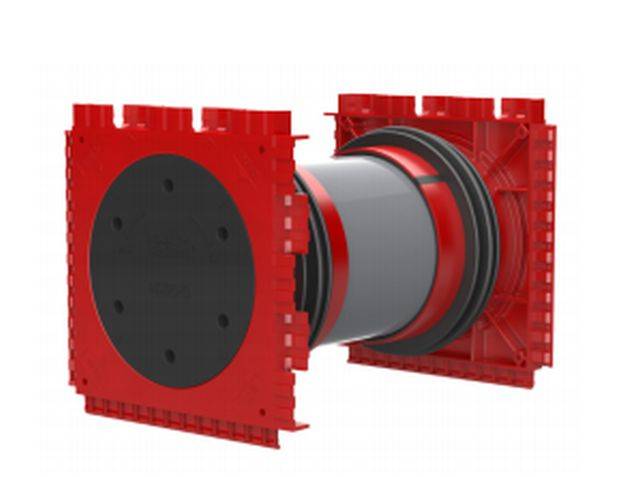

Double cable wall insert for setting in concrete.

Features and benefits:

  • The three-ribbed seal is sprayed on to create a pressure-tight seal with the concrete.
  • System seal can be connected on both sides (e.g. cable duct connection and cable seal).
  • Packages can be created with frame connection system, delivery ex works.
  • Can be used in all types of wall including element constructions.

Applications:

  • For the gastight and watertight connection on both sides of system seals for cables and cable ducts, providing maximum flexibility for subsequent use.
  • Waterproof concrete stress class 1 and class 2 applications.

General information
Material

Wall insert: Acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers (TPE) three-ribbed seal

Adapter pipe: Polyvinyl chloride (PVC)

Closing cover: Acrylonitrile butadiene styrene (ABS) with ethylene propylene diene monomer (EPDM) seal

Size

Frame: 145 x 145 mm

Centre distance: 135 mm

Uniclass 2015
Pr_65_52_61_63 Pipe sleevesPrimary
Specification data - Pipe sleeves
Product Reference

HSI90 1x1 K2/100

Standard product features

Material:

  • Wall insert: Acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers (TPE) three-ribbed seal.
  • Adapter pipe: Polyvinyl chloride (PVC).
  • Closing cover: Acrylonitrile butadiene styrene (ABS) with ethylene propylene diene monomer (EPDM) seal.

Size:

  • Frame: 145 x 145 mm.
  • Centre distance: 135 mm.

Minimum wall thickness:

100 mm.

Tightness:

Gastight and watertight to 2.0 bar.
