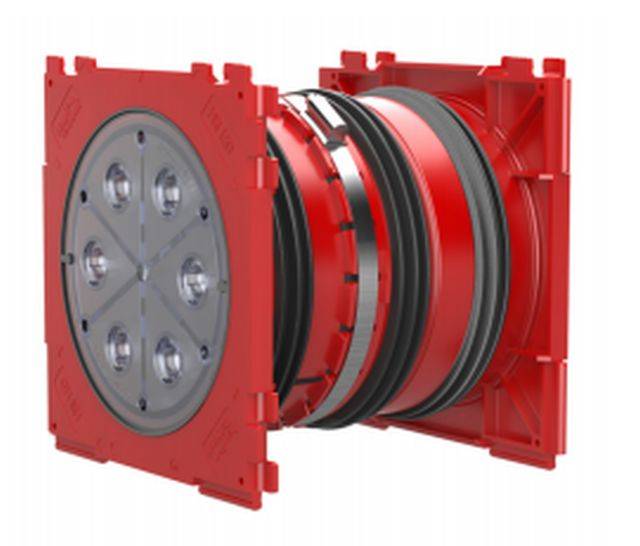

Double Wall Insert - HSI150 1x1 K2 Varia 200-260
Application

  • For the gastight and watertight connection on both sides of system seals for cables and cable ducts, providing maximum flexibility for subsequent use.
  • Waterproof concrete stress class 1 and class 2 applications.

Description

Double cable wall insert with adjustable length, for setting in concrete.

Features and benefits:

  • Stepless adjustment to the required wall thickness on site.
  • Three spray applications of the three-ribbed seal are applied to create a pressure-tight seal with the concrete.
  • Quality mark on both sides: sealed ex works. Option to check for accidental or unauthorized opening of the closing cover.
  • System seal can be connected on both sides (e.g. cable duct connection and cable seal).
  • Packages can be created with frame connection system on site.
  • Can be used in all types of wall including element constructions.

Applications:

  • For the gastight and watertight connection on both sides of system seals for cables and cable ducts, providing maximum flexibility for subsequent use.
  • Waterproof concrete stress class 1 and class 2 applications.

General information
Material

Wall insert: Acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers (TPE) three-ribbed seal

Adapter pipe: Polyvinyl chloride (PVC)

Clamping strap: W1

Closing cover: Acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers (TPE) seal

Size

Frame: 220 x 220 mm

Centre distance: 210 mm

Uniclass 2015
Pr_65_52_61_63 Pipe sleevesPrimary
Specification data - Pipe sleeves
Product Reference

HSI150 1x1 K2 Varia 200-260

Standard product features

Material:

  • Wall insert: Acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers (TPE) three-ribbed seal.
  • Adapter pipe: Polyvinyl chloride (PVC).
  • Clamping strap: W1.
  • Closing cover: Acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers (TPE) seal.

Size:

  • Frame: 220 x 220 mm.
  • Centre distance: 210 mm.

Suitable wall thickness:

Adjustable 200–260 mm.

Tightness:

Gastight and watertight to 2.5 bar.
