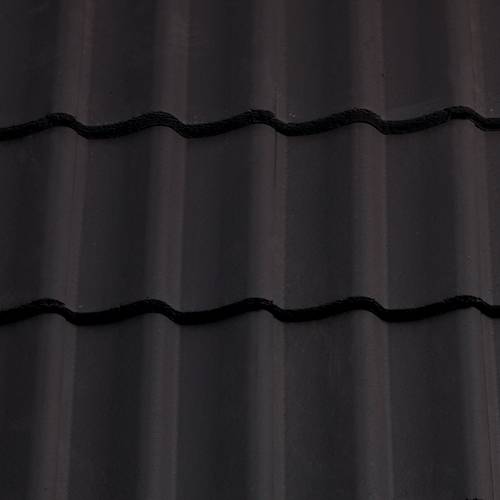

Double Roman Concrete Roof Tile
Verified by manufacturer 10 days ago
Concrete interlocking roof tile with roman design.
Application
Suitable for external use in both new build and refurbishment.
Description
Concrete interlocking roof tile with roman design suitable for a minimum pitch of 17.5 degrees depending of head lap.
Features and benefits:
- Roman design.
- Smooth and sanded finish available.
- For new build and refurbishment.
General information
Color | Brown Guidance for specification option: Antique 2, Brown. Grey Guidance for specification option: Dark and Cornish grey. Other Guidance for specification option: Rustic, Heather. Red Guidance for specification option: Terracotta, Mottled red. |
Finish | Sanded Smooth |
Material | Concrete |
Shape | Rectangle |
Length | 420 mm |
Width | 334 mm |
Uniclass | |
CAWS | H65/115 Concrete roof tiling H65/5 Roof tiling |
Specification data - Concrete interlocking tiles
Standard | To BS EN 490. |
Tile type | Concrete interlocking tile. |
Fire performance | |
External fire performance | A1. |
Reaction to fire | A1. |
Profile | Roman. |
Colour | BrownGuidance for specification option: Antique 2, Brown. GreyGuidance for specification option: Dark and Cornish grey. OtherGuidance for specification option: Rustic, Heather. RedGuidance for specification option: Terracotta, Mottled red. |
Surface finish | Sanded.Smooth. |
Size | 420 x 334 mm.Guidance for specification option: (l x w) Hanging length: 398 mm. |
Thickness | 50 mm. |
Gauge | 300—345 mm. Guidance for specification option: Batten spacing at maximum gauge 345 mm Batten spacing at minimum gauge 300 mm. |
Head-lap | 75—120 mm. |
Pitch | 17.5°. Guidance for specification option: 17.5° smoothfaced at 100mm headlap. |
CoverWidth | 300 mm. |
Roof covering | 10.5 tiles/m². Guidance for specification option: At 100 mm headlap 9.7 tiles/m². Guidance for specification option: At 75 mm headlap. |
Weight | 4.19 kg. Guidance for specification option: Per tile. Manufacturer guidanceWeight per pallet (including pallet & packaging): 0.994 tonnes. Quantity per pallet: 216. |
Battens | 38 x 25 mm. Guidance for specification option: Batten size - up to 450 mm rafter centres. 50 x 25 mm. Guidance for specification option: Batten size - up to 600 mm rafter centres. Manufacturer guidanceBattens per m2.
|
Fixing | 65 x 3.75 mm aluminium ring shank clout head. Guidance for specification option: Aluminium ring shank clout head. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete |
Literature
Double Roman Technical Data Sheet
