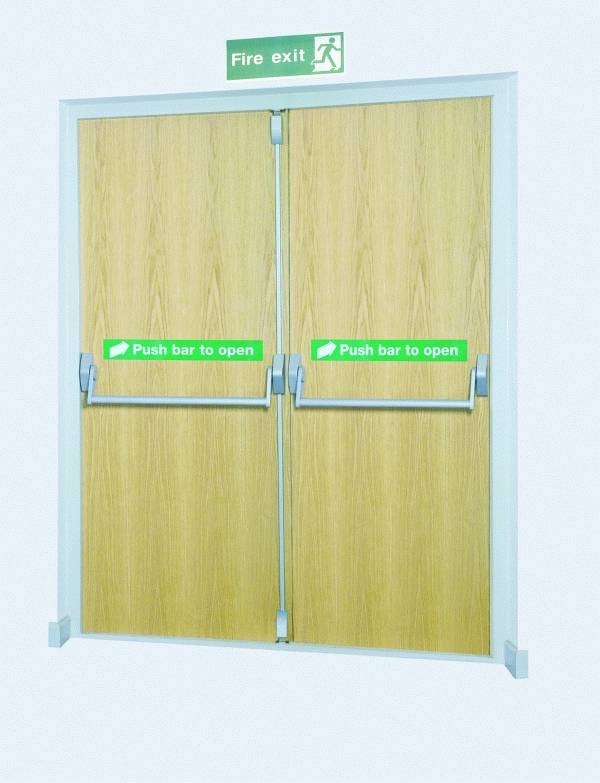

Double Rebated Door Set 883T
Application

  • For double rebated doors in buildings accessed by the public.
  • Suitable for push face of outward opening doors.
  • Fixings to suit timber doors. Fixings for metal doors also available.
  • Non-handed for maximum flexibility.
  • Low projection touch bar.
  • Compatible with UNION 885 Outside Access Device.

Description

Contemporary styling combined with the technology and convenience of Pullman latches.

Application:

  • For double rebated doors in buildings accessed by the public.
  • Suitable for push face of outward opening doors.
  • Fixings to suit timber doors. Fixings for metal doors also available.
  • Non-handed for maximum flexibility.
  • Low projection touch bar.
  • Compatible with UNION 885 Outside Access Device.

Operation:

Pressure at any point on the touch bar(s) withdraws the latch(es) ensuring immediate release of the door(s).

Features:

  • Easy action Pullman latches.
  • Rods and touch bars can be cut to size.
  • Three point locking.
  • Rods with integrated cover.
  • Light touch operation.
  • Anti-thrust steel deadlatch.
  • Adjustable steel strikes.
  • Included in fire tests to BS EN 1634-1 on timber and metal doors.
  • Complete with signage (BS EN 1125) and fixing instructions.
  • 10 year guarantee.

Additional information for this product is available from - http://www.uniononline.co.uk/en/site/Union-Online/Products/Exit-Devices/Exit-Hardware-with-Pullman-Latches/-Touch-bar-Panci-Lartch1/

General information

Features

Easy action Pullman latches

Rods and touch bars can be cut to size

Three point locking

Rods with integrated cover

Light touch operation

Show more

Uniclass 2015

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Specification data - Panic exit devices

Product Reference

883T

For maximum door width of 900 mm.

883T-W

For maximum door width of 1200 mm.

Colour/ Finish

GRN

Green touch bar and silver trim.

SIL

Silver touch bar and silver trim.

WTE

White touch bar and white trim.

Cylinder operated dogging device

Not required

Required
