Application

Plant room door, server room door, store room door, commercial, industrial, warehouse, personnel door.

Description

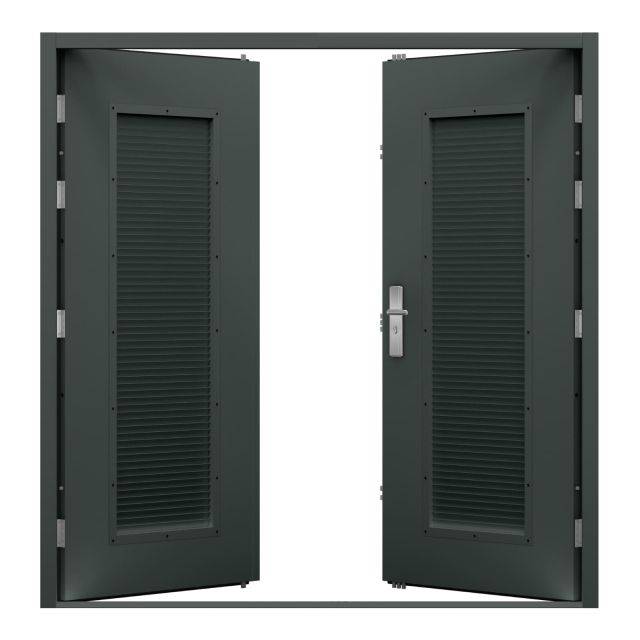

Double leaf, heavy-duty louvred steel security door suitable for external or internal use. It features 21-point locking and is available from 1295–2195 mm wide (external frame size). Leaf and a half sizes are available. It is suitable for applications needing a combination of airflow, ventilation and security.

Features and benefits:

  • Heavy-duty white polyester powder coated finish as standard.
  • Fully welded construction for optimum strength.
  • Eight stainless steel heavy-duty ball bearing hinges and eight dog bolts (fixed locking points) on hinge side of door.
  • Multi-point locking shoot bolt mechanism.
  • Chrome plated steel handles included as standard. Heavy-duty stainless steel handles upgrade (level 2 and 3) available to increase security and level 3 security sashlock is also available.
  • Weather and draught proof seals supplied as standard. It is fully weather proof and can be used externally.
  • DDA compliant threshold.
  • Anti-jemmy bar lip all around the door leaf, including the hinge side.
  • Internal frame welded casework to protect shoot bolts from falling debris.
  • UAP tradelock supplied as standard with anti-drill and anti-pick features. A 1* kite marked cylinder upgrade is available, which has in addition, anti-bump, anti-snap, and anti-pull features (included in level 1, 2 and 3 security upgrades). Thumb turn and keyed alike options are also available.
  • CE marked.

Applications:

Plant room door, server room door, store room door, commercial, industrial, warehouse, personnel door.

General information
Finish

Polyester powder coated

Material

Door frame: 1.8 mm thick galvanized steel

Door leaf: Double skinned 1 mm thick galvanized steel with a Rockwool insulation core

Uniclass 2015 High-security doorsets (Pr_30_59_24_37)
Specification data
Product Reference

Double Louvred Steel Door (Security)

External frame size -
Width

1295 mm

Leaf and a half.

1395 mm

Leaf and a half.

1595 mm

1695 mm

1795 mm

1895 mm

1995 mm

2095 mm

2195 mm

Height

1990 mm

2000 mm

2010 mm

2020 mm

Standard.

Configuration

Open in, left handed

Open in, right handed

Open out, left handed

Open out, right handed

Security upgrades

Not required

Drop bar kit

For additional door security.

Level 1

Security cylinder.

Level 2

Level 1 plus stainless steel handles.

Level 3

Level 2 plus security sashlock.

Security trim kit, external

For additional external door security.

Security trim kit, external and internal

For additional external door security.

Colour

Latham's Stock White

Standard.

Special order

Insert requirement, many BS and RAL colours are available, contact manufacturer for information.

Louvre panels -
Type

327 x 327 mm panel

479 x 1546 mm panel

610 x 610 mm panel

Four 327 x 327 mm panels

Four 610 x 610 mm panels

Two 327 x 327 mm panels

Two 479 x 1546 mm panels

Two 610 x 610 mm panels

Location -
Leaf

Active only

Active and passive

Passive only

Horizontal position

Hinge side

Centre

Lock side

Vertical position

Top

Middle

Bottom

Over/ side panels

Not required

25 mm over panel

5–40 mm expandable side frames

Supplied as a pair.

50 mm over panel

50–85 mm expandable side frames

Supplied as a pair.

80 mm over panel

Ironmongery

Door knob

External blanking plate

External blanking plate with key access

PVC-U style handles

Security code lock

Standard handle

Cylinder

Keyed alike

No cylinder access

Standard

Thumbturn cylinder

Accessories

None

Door sill

Extra keys

Friction stay

For outward opening doors.

Heavy duty door closer

Satin chrome finish.

Kick plates

Masonry fixing kit

Metal fixing kit

Push plates

Wood fixing kit

Standard product features

Material:

  • Door frame: 1.8 mm thick galvanized steel.
  • Door leaf: Double skinned 1 mm thick galvanized steel with a Rockwool insulation core.

Finish:

Polyester powder coated.

Design:

Plain door with flush panel.

Frame depth:

90 mm.

Door leaf depth:

50 mm.

Security type:

Medium.

Locking:

  • Active door leaf: Includes three shoot bolts into the top of the frame, four shoot bolts into the passive leaf and three shoot bolts through bottom threshold into structure below. Including the four dog bolts and latch, 15 points secure the door leaf in the frame.
  • Passive door leaf: Concealed flush bolt top and bottom.
