Dortek Hygienic Windows - Stainless Steel

Verified by manufacturer 5 months ago

Dortek Ltd

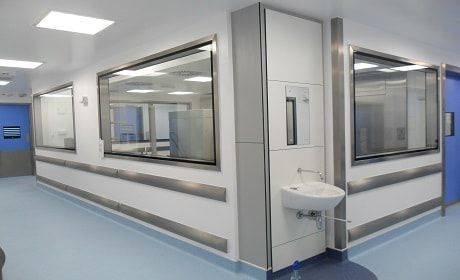

Hygienic internal window with stainless steel frames.

Jump to:
BOS
+44 (0)1482 226848 Website

Application

Suitable for the following applications:

  • Healthcare.
  • Pharmaceutical.
  • Food.
  • cleanrooms

Description

Hygienic internal window with stainless steel frames.


Features and benefits:

  • Dortek hygienic windows are constructed with two outer panes of 6 mm thick glass which is flush fitted to both sides of the frame. Frames are constructed from polished stainless steel, with no fixings or screws in order to maximize hygiene and cleanability.
  • Easy to clean, low maintenance, smooth, flush surface. Available with smartglass technology, blinds and laser protection.
  • Fully flush, ultra-clean hygienic construction.
  • Comprehensive fire, laser and radiation protection.
  • Available with integral blinds and smartglass.
  • Solid 316 or 304 grade stainless steel frames.

General information

Color

Clear

Finish

Glazed

Material

Glass

Stainless steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_98_83 Steel window unitsPrimary

CAWS

L10/33 Proprietary windows

L10/390 Proprietary windows

Product range

Windows

Specification data - Steel window units

Dimensions and configurations

-

Manufacturer guidance

Insert requirements.

Frame

-

Profile

Two piece with factory joints mitred and polished.

Glazing or infill

-

Requirements

Guidance for specification option:

Single or double glazed with 6 mm thick clear toughened glass flush to both sides of wall.

Fixing features

Concealed fixing arrangement.

Frame

Stainless steel, grade 304.

Stainless steel, grade 316.

Accessories

None.

Integral blinds.

Lead lining.

Smartglass.

FrameThickness

25 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Ireland

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

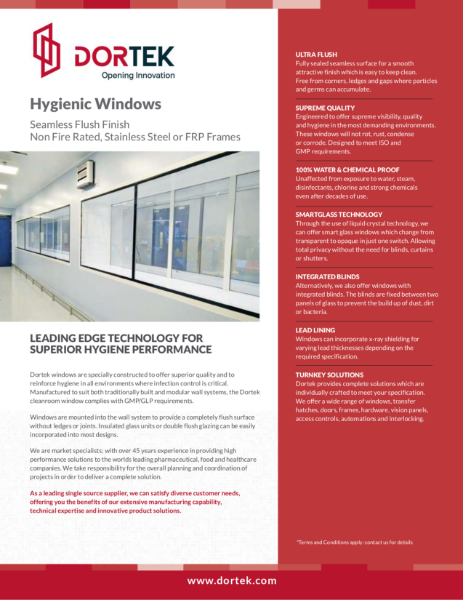

9.9.2. Dortek Hygienic Windows Data Sheet

9.9.2. Dortek Hygienic Windows Data Sheet
