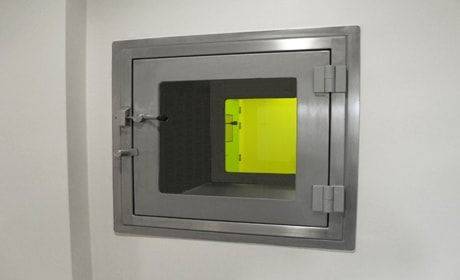

Dortek Fire Resistant Transfer Hatch
Application

  • Pharmaceutical.
  • Research Laboratories.
  • Life sciences.
  • Healthcare.

Description

Stainless steel fire resistant transfer hatch designed to provide a safe and easy way to transfer products or materials between clean rooms and adjacent non-sterile areas. The hatch has mechanically interlocked doors to prevent depressurization and minimize the risk of contamination.

The doors are deliberately not sealed in order to allow a small volume of air from the clean side (which is normally at a higher pressure) to continuously flush the interior of the hatch. This volume is so small by comparison with room air flows, that it will have no perceptible effect on room pressures.

Features:

  • Stainless steel construction.
  • Stainless steel framed Pyran S or Pyrobelite glass doors.
  • Mechanically interlocked doors.
  • Fitted with intumescent sealants around the door.
  • Easy clean surfaces.
  • Fire resistant up to 60 minutes.

Applications:

  • Pharmaceutical.
  • Research Laboratories.
  • Life sciences.
  • Healthcare.

General information

Features

Stainless steel construction

Stainless steel framed Pyran S or Pyrobelite glass doors

Mechanically interlocked doors

Fitted with intumescent sealants around the door

Easy clean surfaces

Fire resistant up to 60 minutes

Finish

240 grit

Size

[Size, Special size orders available, consult manufacturer]

-

Uniclass 2015

Pr_30_59_36_96 Wall hatchesPrimary

CAWS

L20/630 Hatches

Specification data - Wall hatches

Product Reference

Dortek Fire Resistant Transfer Hatch

Size (w x h x d - Internal)

300 x 300 x 300 mm

450 x 450 x 450 mm

600 x 600 x 600 mm

Hatch panels and architraves finish

Stainless steel, grade 304

Stainless steel, grade 316

Vision panel

Clamped Pyran S glass F60

Pyrobelite glass F30

Standard product features

Finish:

240 grit.

Panels and architraves:

  • Inner panels and outer body: 1.5 mm thick stainless steel.
  • Fixed flange: 2 mm thick stainless steel.

Door frame:

1.5 mm thick stainless steel.

Handles:

One stainless steel clamp handle per door.

Hinges:

Stainless steel surface mounted hinges.

Wall seal:

Mastic bead from the architrave to the wall finish on both sides of the vision panel.

Door seal:

Silicone seal with vulcanized corners, mechanically fixed to the hatch body. Fitted with intumescent seal to perimeter at door frame.

Product Options

Size:

Special size orders available, consult manufacturer.

Vision panels:

Hatches are manufactured using certified fireproof materials but have not been officially tested.
