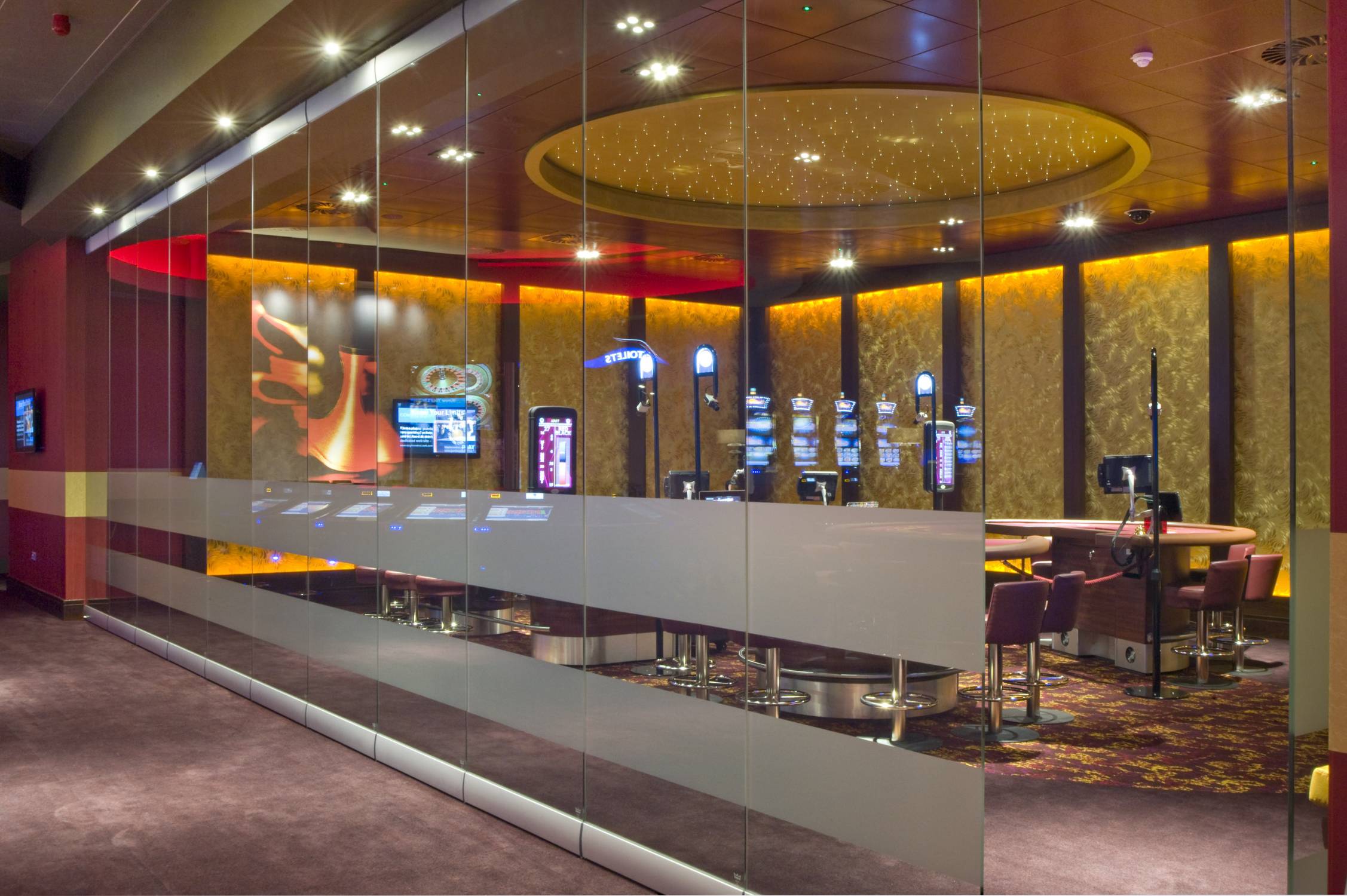

Dorma Varitrans HSW Moveable Glass Wall - Single Glazed glass wall system
Verified by manufacturer 1 month ago
Sliding, folding, non-acoustic, moveable glass wall and partition.
Application
The glass panels provide an unimpeded view of the entire space and create an ideal functional entrance and closure in buildings. It is suitable for shop fronts, restaurants, church halls, airports, showrooms, offices or anywhere where space division is required without the need for acoustics. Single and double pass doors can be incorporated, allowing pedestrian access routes and manifestations can be applied to the panels.
Can be used for:
- Banking
- Security of doors
- Bandit glass
Description

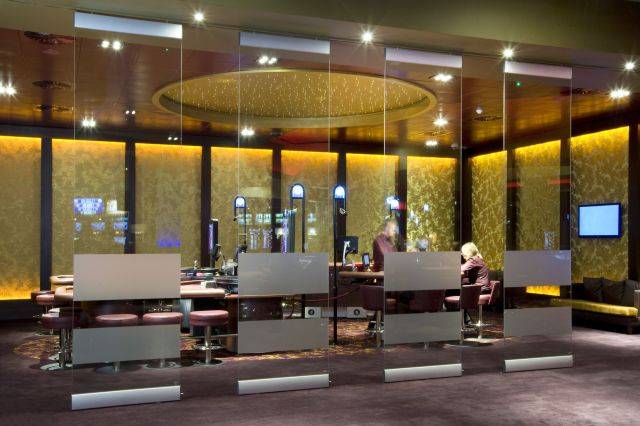

Manually operated moveable wall consisting of glass panels which are slid into position and locked down with a floor bolt.
Features and benefits:
- Individual elements provide an unimpeded view of the entire space.
- Single and double pass doors can be incorporated in any location within the system.
- Complies with BS EN ISO 14025 for environmental labels and declarations.
- Polyester powder coated to RAL 9010 track finish as standard, any RAL colour available on request.
- Powered option available.
General information
Finish | Anodized Powder-coated Glazed Lacquered Manufacturer guidanceFrames: SAA as standard PPC option. Track: Polyester powder coated to RAL 9010 as standard, or as per client requirements. |
Material | Glass Aluminium Manufacturer guidanceGlass panels complete with horizontal top and bottom aluminium clamping profiles secured in position by means of interlocking profiles and manually operated floor securing bolts. |
Shape | Manufacturer guidanceTo suit project requirements. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: Extended to three years with service agreement. |
Uniclass | |
CAWS | L20/545 Sliding stacking panel partitions |
Specification data - Sliding stacking panel partitions
Third party accreditation | Institut Bauen und Umwelt E.V |
Performance | Wind pressure to EN 12210 and load impact tested to DIN EN 1527, 1191 class 3, 13049 class 5. |
Operation | Manually operated.Guidance for specification option: Consisting of glass panels which slide into position and locked down with a floor bolt. Interlocking profiles fix the panels together. Panels self park in track solution. |
Dimensions (nominal) | |
Structural opening size | Guidance for specification option: Insert requirements. |
Panel (average) | |
Width | Manufacturer guidanceInsert requirements. |
Height | Manufacturer guidanceInsert requirements, available up to 4000 mm. |
Thickness | 10 mm toughened safety glass (TSG).12 mm toughened safety glass (TSG).12.8 mm laminated safety glass (LSG).Special order.Guidance for specification option: Insert requirement, up to 19 mm available, contact manufacturer for information. |
Average panel weight | |
Standard panel | 30 kg/m² (dependent on glass thickness). |
Parking loads | Project specific. |
Track system | |
Head track | Type G.Guidance for specification option: Aluminium modular track system configured with single track rail sections, combined with switch and curve angled junctions offering smooth self guiding panel movement. Suitable for weights up to 150 kg per element. |
Floor track | No floor track required. Locator floor bolts as needed. |
Ceiling flange finish | Polyester powder coated to RAL 9010.Guidance for specification option: As standard. Polyester powder coated to clients choice.Guidance for specification option: Available on request, insert RAL requirements. |
Park position | Two-point panel suspension system. Standard stacking arrangements 90° angle to the travel direction.Bespoke stacking arrangement.Guidance for specification option: Available on request, insert requirements. |
Panels | |
Construction | 10–19 mm laminated or toughened glass panel clamped into 105 mm aluminium extrusion top and bottom, housing suitable locking and safety mechanisms. |
Finish as delivered | RAL.Guidance for specification option: Insert requirement. Satin anodized aluminium (SAA).Guidance for specification option: Standard. |
Pass doors | Double panel.Fixed pivoting.Single full height.Single panel.Sliding. |
Hardware | Guidance for specification option: Range available including stainless steel pull handles or client choice ironmongery (subject to suitability), concealed overhead door closers and floor springs available for pass doors. Insert requirements. |
Junctions and corners | Support rollers in the junctions guarantee simple operation when sliding elements across intersection. |
Glass manifestation | Guidance for specification option: To suit project requirements either supplied to agreed design or applied after installation completed and in accordance with Building regulations document M. |
Accessories | None.Sliding door panel status indicator. |
Edge treatment | Powder coated profiles to any RAL. Guidance for specification option: Insert requirement. Anodized profiles. Stainless steel profiles. |
Standards | Complies with BS EN ISO 14025 for environmental labels and declarations. Wind load (frame bending) to EN 12210. Endurance strength to DIN EN 1527 and EN 1191 Class 3. Side impact to DIN EN 13049 Class 5. Corrosion to DIN EN1670 Class 4. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceEnvironmental product declaration (EPD) Certified. |
Literature
Dorma Hüppe Variflex Moveable Wall Systems
Case studies

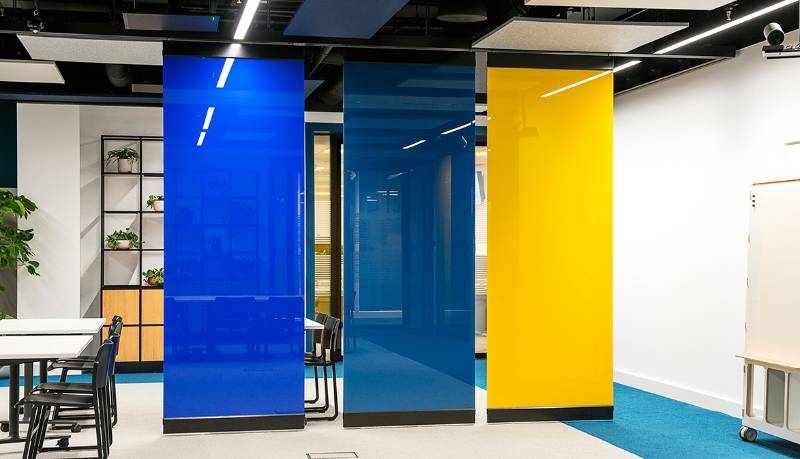

Dorma Varitrans HSW single glazed moveable Writable Dividing Walls for Global Bank’s UK Offices

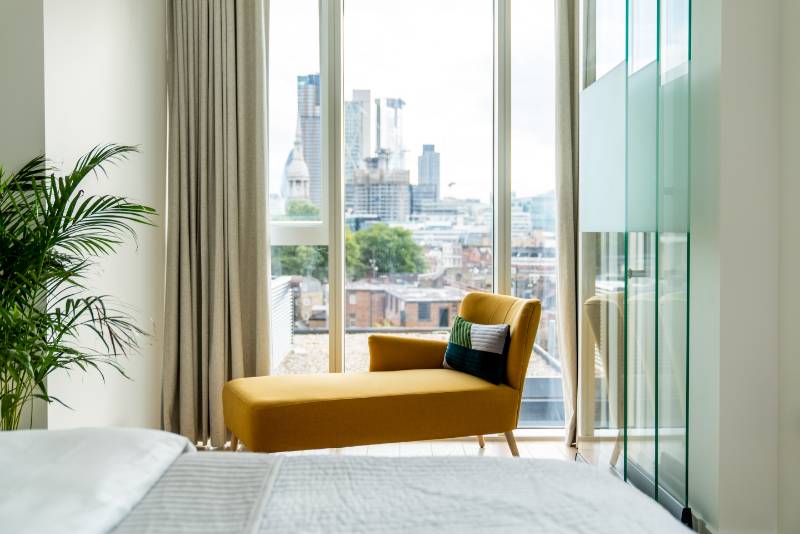

Dorma Varitrans HSW single glazed moveable wall, Winter Gardens Utilise Style’s Partitioning Solution
Dorma Varitrans HSW single glazed moveable wall with Critall effect glazing bars installed by Style

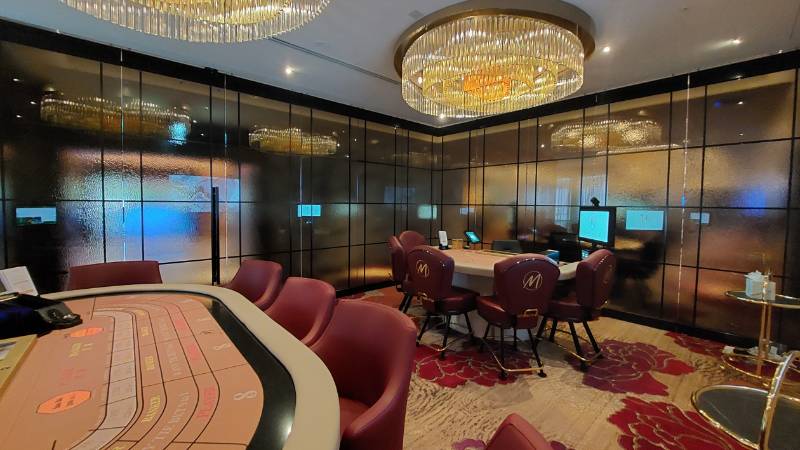

Dorma Varitrans HSW single glazed acoustic moveable wall- Metropolitan Gaming, London
