Door Protection Goalpost - Loading Bay and Dock Door Protection
Verified by manufacturer 3 months ago
Door protection goalpost: Highly configurable goalpost for door protection and mezzanine safety. Guards against impact damage. MHE clearance control. Modular components. Traffic and personnel safety.
Application
- Safeguarding mezzanines and rapid rise/roller doors against impact harm.
- Efficiently managing the clearance height for MHE vehicles.
- Enhancing workplace safety by preventing collisions with mezzanines and doors.
- Ensuring damage prevention for mezzanines and rapid rise/roller doors.
Description

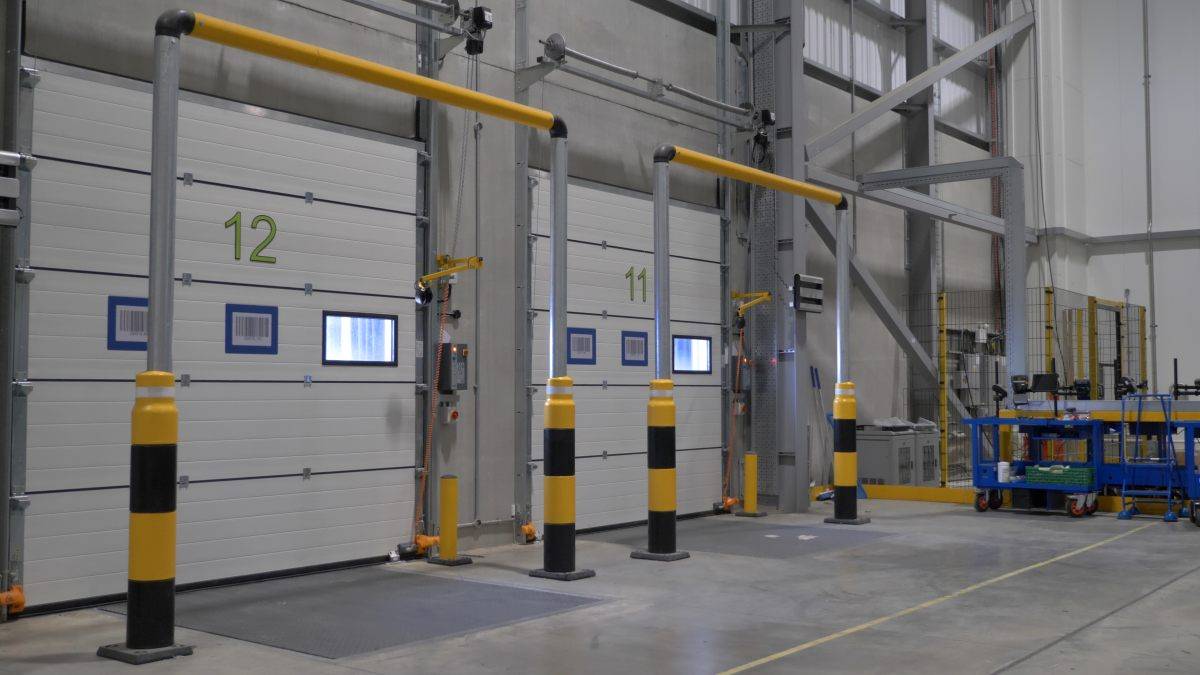

Door protection modular goalpost designed to safeguard mezzanines and rapid rise/roller doors from impact damage.
Features and Benefits:
- Configurable for heights and widths up to 7 m.
- Also used to manage the height of MHE vehicles passing under mezzanine floors.
- Potted option available – diamond core-drill slab, 200 mm diameter x 300 mm deep.
- All steelwork features a hot-dip galvanised finish to BS EN ISO 1461.
- 210 mm diameter black and yellow cover kits, moulded in the UK from food-safe grade polymer.
- Optional side-connected barriers and customisable configurations.
Modular components:
- Steel bollard bases, 10mm thick, featuring chemical resin floor anchors.
- Slide-over polymer covers in yellow and black.
- Bolt-fix uprights for secure installation.
- Spigot-joined cross-bars for added stability.
General information
Color | Yellow Black |
Finish | Reflective |
Material | Polymer Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q41/230 Height restrictors |
Specification data - Height restrictors
Clearance dimensions | |
Height | Manufacturer guidanceBespoke. Consult the manufacturer for details and insert requirements. |
Span | Manufacturer guidanceBespoke. Consult the manufacturer for details and insert requirements. |
Material | |
Posts | Polymer and steel. |
Overhead beams | Steel. |
Finish as delivered | |
Applied finish | Galvanized to BS EN ISO 1461. |
Colour | Yellow and black. |
Accessories | Height restriction clatter bar. |
Fixing: | Bolt-fixed upright. |
Base | 10 mm thick with chemical resin floor anchors. |
Product Reference | Door Protection Goalpost Door Protection Goalpost Potted Guidance for specification option: Diamond core-drill slab 200 mm diameter x 300 mm deep. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polymer Steel |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Door Protection Goalpost System - Brandsafe Spec Sheet
