Dome AOV Roof Top Smoke Ventilator
Verified by manufacturer 3 months ago
1050 x 1050 mm
1050 x 1050 mm

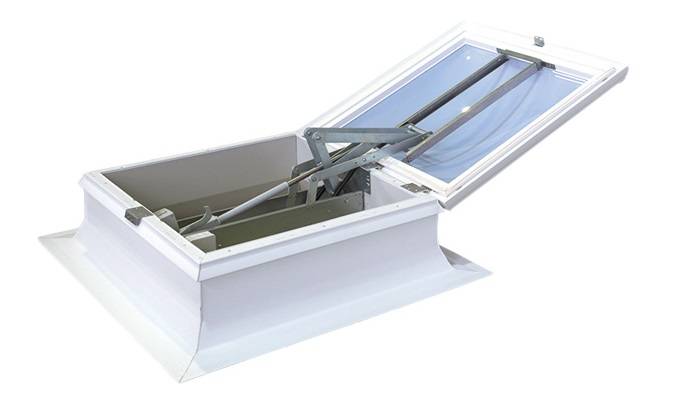

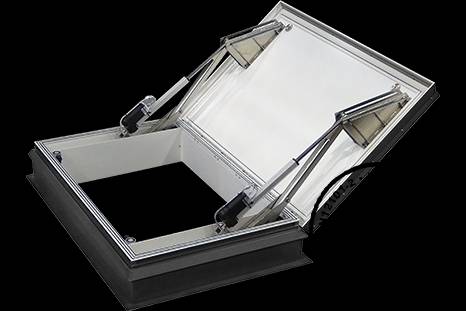

Dome shaped automatic opening roof top smoke ventilator.
Application
Roofing.
Description
Thermally broken aluminium smoke ventilator and roof hatch designed to BS EN 12101-2. The AOV also offers push-button comfort ventilation. The lid and upstand feature a 50-mm thermally broken section, which is fully insulated with 50 mm-thick CFC- and HCFC-free polyisocyanurate or non-combustible mineral wool insulation.
Features and benefits:
- 72 hour emergency power supply and aluminium wind deflectors for improved airflow.
Performance (to BS EN 12101-2):
- Free aerodynamic area: 1.0 m².
- Reliability: RE 1000 (10 000 comfort ventilation).
- Snow load: SL 500.
- Low ambient temp: T (-15°).
- Wind load: WL 1500.
- Resistance to heat: B300.
General information
Shape | Rectangular |
Color | White |
Material | PVC Steel Aluminium |
Warranty description | Five year |
Uniclass | |
CAWS | L10/490 Roof ventilators L20/630 Hatches |
Product range |
Specification data - Framed rooflights
Size | 1050 x 1050 mm.Guidance for specification option: 0.69 m² aerodynamic area. Special order.Guidance for specification option: Insert requirements, available 900–1260 x 900–1260 mm. |
Frame | |
Material | Aluminium with 50-mm thermal break. |
Product Reference | SRHP/AOV 140° |
Type | Polycarbonate dome lid. Solid aluminium lid. |
Insulation | 50 mm-thick polyisocyanurate insulation. Guidance for specification option: 0.43 W/m²K. 50 mm-thick non-combustible mineral wool insulation. Guidance for specification option: 0.63 W/m²K. |
Operation | 24 V DC actuator. 24 V DC control panel with 72-hour battery backup. 48 V DC actuator. 48 V DC control panel with 72-hour battery backup. |
Controls | 24 V control centre. Fireman’s switch. Key switch. Push button. Smoke detector. |
Cover | 50 mm-thick fully insulated kerb and lid, corner-welded and reinforced. Aluminium wind deflectors. |
Curb | 300 mm in height with external curb-liner, 50-mm thermal break and 50 mm-thick insulation. |
Seal | Double unbroken bubble and blade seal to lid. |
Hinge | Heavy-duty continuous hidden hinge. |
