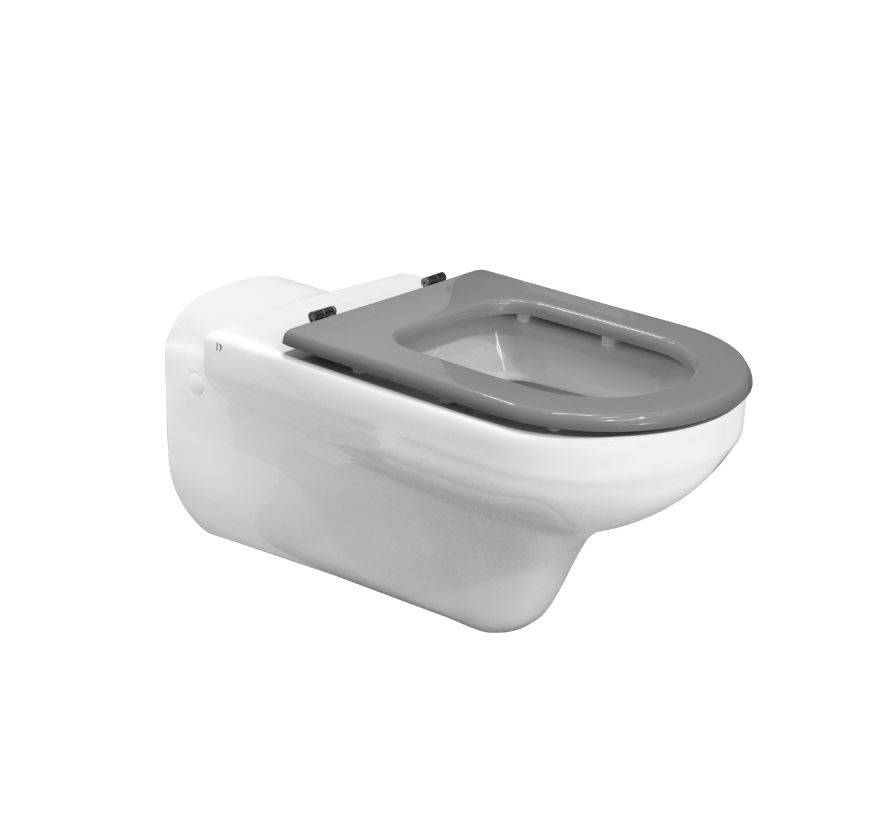

Dolphin Wall Hung Doc M WC Pan and Seat

Verified by manufacturer 3 months ago

Dolphin Solutions

Dolphin wall hung Doc M WC pan and slimline soft-close seat.

Jump to:
+44 (0)1424 202224 Website

Application

Designed for use in Doc M compliant washrooms.

Description

Dolphin wall hung Doc M WC pan and slimline soft-close seat.


Features and benefits:

  • WC pan - Doc M wall hung.
  • Flush volume: 4.5/3.
  • Dimensions (projection x width x height): 750 x 360 x 370 mm (383 mm with seat).
  • Designed for Doc M washroom.
  • Rimless pan for easy cleaning.
  • Constructed from vitreous china - clean white gloss finish with minimalist design.
  • Comes with slimline soft-close seat as pictured.
  • Weight tested to 400 kg.



Cistern compatibility:

  • DB5521.P and DB5521.M cisterns.
  • Compatible with the DB5511.P / DB5511.M / DB5511.E cisterns when fitted with Dolphin extra strengthening brackets, code 25741.

General information

Color

White

Finish

Gloss

Material

Vitreous china

Shape

Other

Length

750 mm

Width

360 mm

Height

370 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary
Pr_40_20_93_95 WC seats and covers

CAWS

N13/300 WCs and cisterns

N13/10 WC pans and flushing arrangements

Specification data - WC pans

Standard

To BS EN 997, Class 2.

Form

Wall-mounted, siphonic.

Pan height

370 mm.

Materials

-

Body

Vitreous china.

Finish and colour

White.

Water supply, outlet and seat holes

-

Seat holes

Standard pattern.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

  • Compatible with the DB5521.P / DB5521.M Cisterns.
  • Compatible with the DB5511.P / DB5511.M / DB5511.E cisterns when fitted with Dolphin extra strengthening brackets, code 25741.

Projection

750 mm.

Width

360 mm.

Flush volume

4.5/3.

BIM objects

Platform Compatible Version
Revit
-

1

Similar products from Dolphin Solutions

DC2005 Dolphin Wall Mounted WC Pan and Seat

DC2005 Dolphin Wall Mounted WC Pan and Seat

Dolphin Doc M Floor Mounted WC Pan

Dolphin Doc M Floor Mounted WC Pan

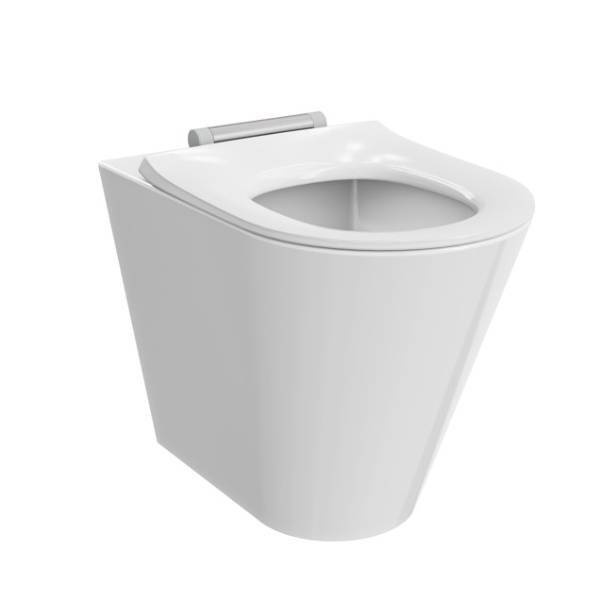

Dolphin Floor Mounted WC Pan and Seat
