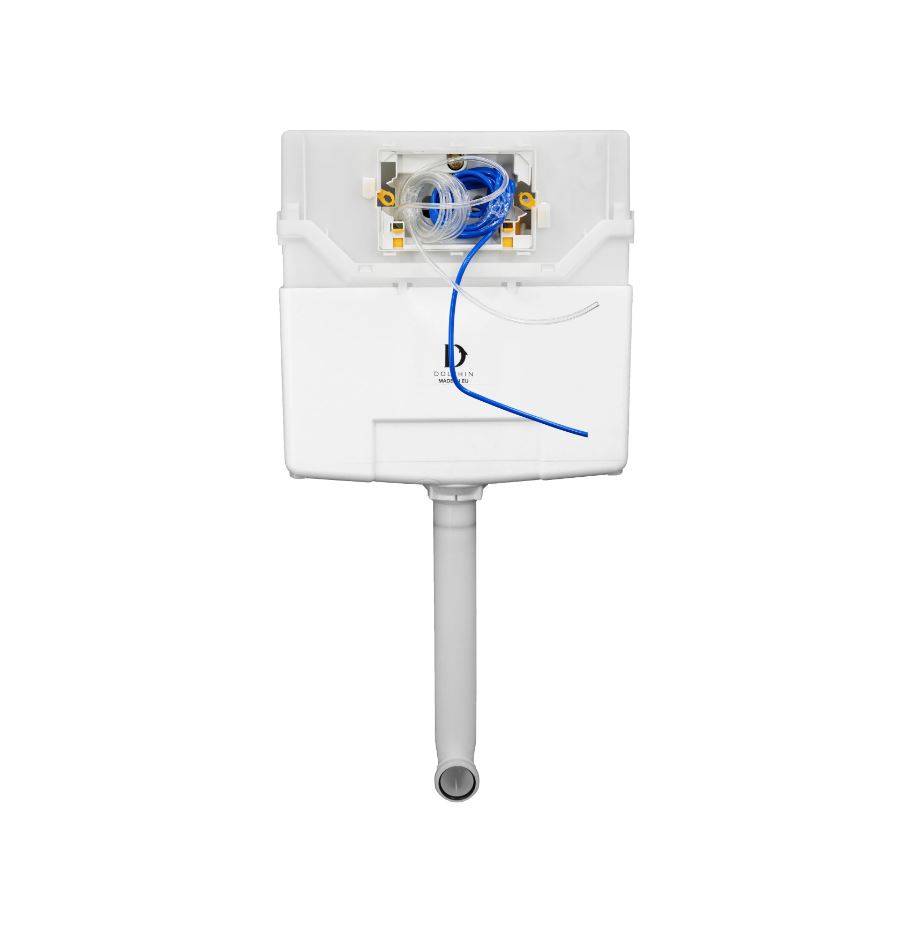

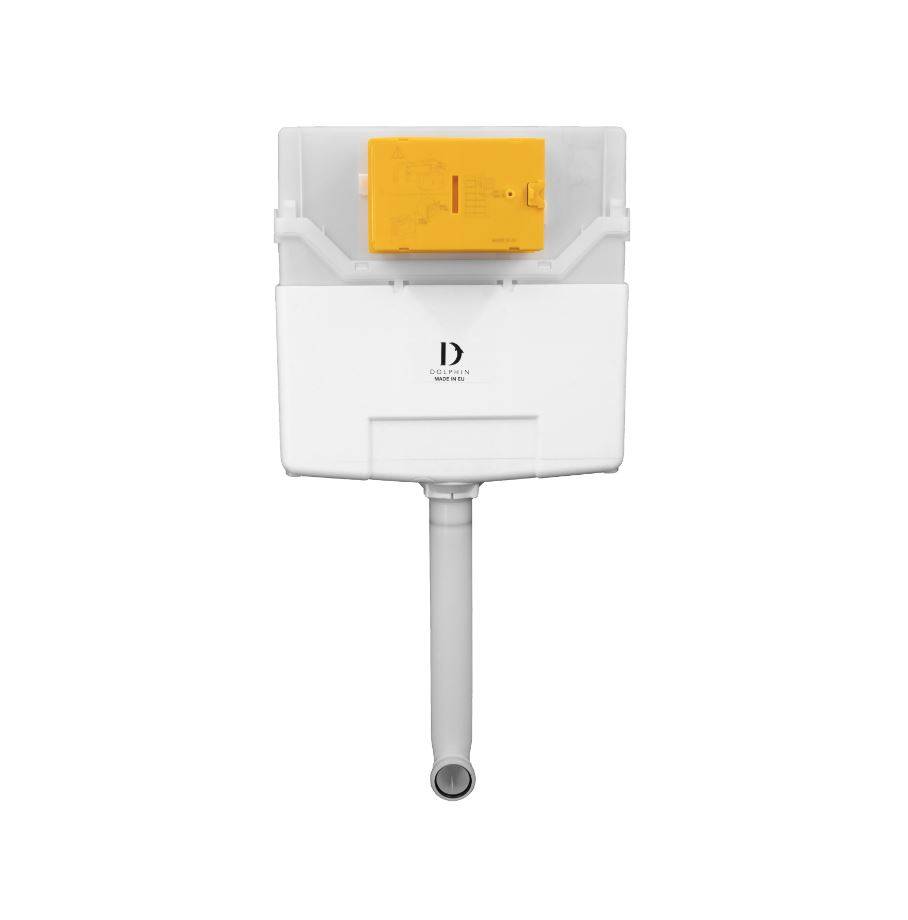

Dolphin Blue 126 mm Pneumatic Cistern - No Frame

Verified by manufacturer 1 month ago

Dolphin Solutions

126 mm thick cistern, no frame - for use with pneumatic flush plates.

Jump to:
+44 (0)1424 202224 Website

Application

Flush cistern to be installed inside the wall and used in combination with floor standing sanitary applications.

Description

126 mm thick cistern, no frame - for use with pneumatic flush plates.


Features and benefits:

  • Concealed WC cistern without frame.
  • Working pressure: 0.1 to 16 bar.
  • WRAS approved inlet valve.
  • AUK1 Backflow arrangement.
  • Flush cistern to be installed inside the wall and used in combination with floor standing WC pan.
  • EN 14055 Class two compliant.
  • Designed for use with our DB5550.P pneumatic flush plate (not included).
  • Compliant with DEFRA Interim agreement when used with our DB590 toilet pan.
  • Dual flush in-wall cistern compatible with dual flush actuators 6/3 litres (adjustable to 4.5/3).
  • 126 mm thickness.
  • Pneumatic actuation.
  • Fitted with delayed refilling inlet valve, (saves up to 9 litres of water per day).
  • Inlet valve compliant with BS 1212-4:2016.
  • Resistance to atmospheric humidity (Hr <90%).
  • Polypropylene (PP) cistern highly resistant and inalterable to thermal stress.
  • EN 14055 marking CL2.
  • Supplied with anti-condensation lining.
  • Net for easier mortar adhesion.

General information

Color

White

Yellow

Material

Polypropylene

Shape

Other

Width

488 mm

Height

530 mm

Guidance for specification option:

Minimum.

745 mm

Guidance for specification option:

Maximum.

Uniclass

Pr_40_20_93_89 WC cisternsPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC cisterns

Standard

To BS EN 997, Class 2 and BS EN 14055, Class 2.

Approvals

Water Regulations Approval Scheme (WRAS)-approved.

Form

Concealed.

Operation

Push-button.

Guidance for specification option:

Designed for use with  DB5550.P pneumatic flush plate (not included).

Materials

-

Body

Plastics.

Guidance for specification option:

Polypropylene (PP) cistern highly resistant and inalterable to thermal stress.

Finish and colour

White and yellow.

Capacity

6/3 L dual flush.

Guidance for specification option:

Adjustable to 4.5/3.

Water supply, overflow and outlet holes

-

Outlet

Bottom outlet.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Height

530—745 mm.

Width

488 mm.

Depth

126 mm.

Manufacturer guidance

Recess depth.

WorkingPressure

0.1—16 bar.

Constant humidity resistance

<90%.

Manufacturer guidance

Resistance to atmospheric humidity.
