DOFF Skid Mount
Verified by manufacturer 6 months ago
ISO 9001 Quality Management
Certificate type
High temperature steam-based cleaning system with nozzle temperature up to 150°C.
Application
Suitable for use in removing paint, biological matter and general dirt and grime without causing harm or thermal shock to the substrate. The product can be used in building restoration, industry, food production, hygiene control, hospitals, factories, transport and vehicle depots, and workshops.
Can be used on the following surface types/ areas:
- Brick.
- Stone.
- Concrete.
- Tiles (glazed and encaustic).
- Wood.
- Faience.
- Terracotta.
- Can be used as a sterilization tool for kitchens, toilets, swimming pools, hospitals and factories.
Suitable for removing:
- Paint coatings (most oil and plastic types).
- Certain types of graffiti.
- Bird or vermin fouling.
- Algae, moss, and fungi.
- Wax coatings.
- Chewing gum.
- Bitumen, oil or grease.
Description

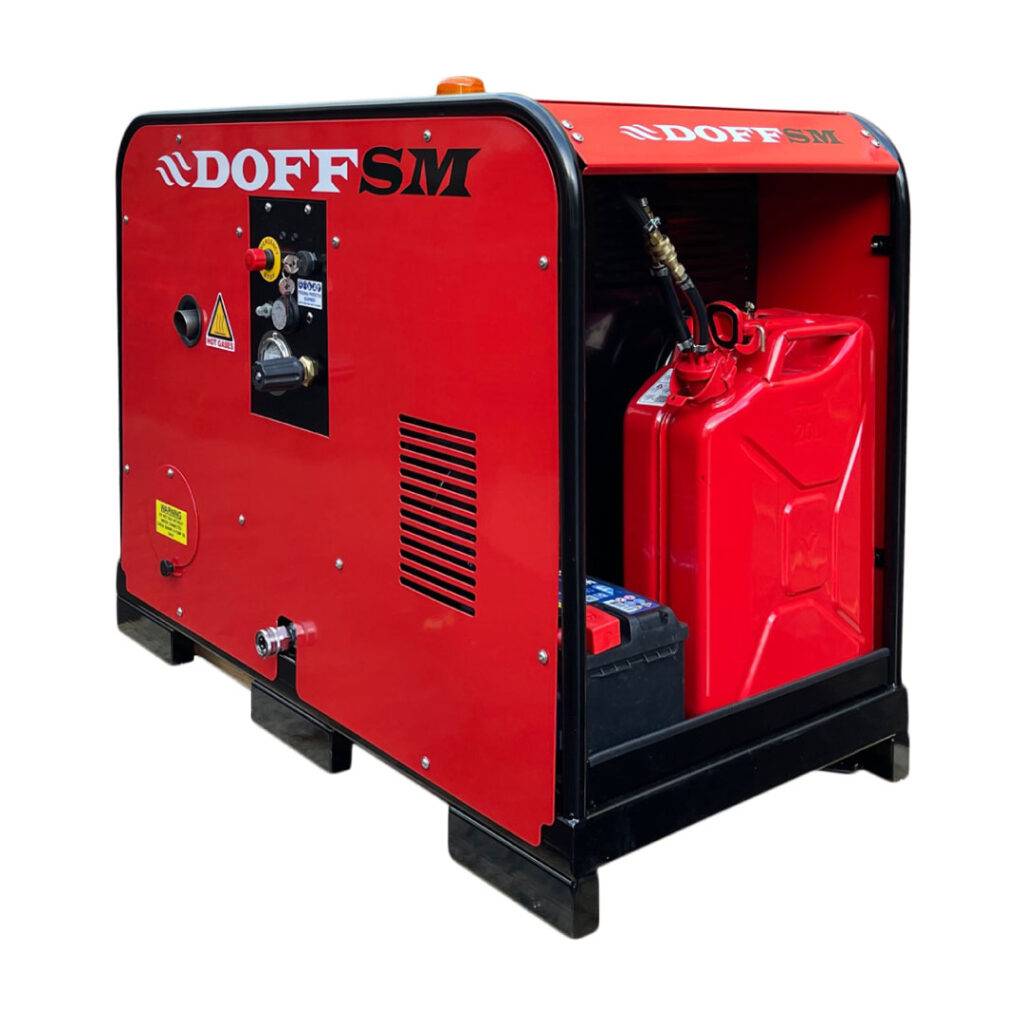

The DOFF Skid Mount is a combination of the DOFF Integra and the DOGG Power Unit (DPU) combined together in a single high strength tubular frame. It has been designed with van and trailer mounting in mind, and is suitable for removing paint, biological matter and general dirt and grime without causing harm or thermal shock to the substrate.
Features and benefits:
- Compact and reliable system.
- Uses minimal water and pressure.
- High-temperature steam.
- Minimum set-up time.
- Diesel powered.
- Mass weight of 210 kg.
- No harmful chemicals used.
- Low emission zone compliant.
General information
Color | Red |
Finish | Gloss |
Material | Metal |
Shape | Other |
Length | 1100 mm |
Width | 600 mm |
Height | 900 mm |
Warranty description | One year |
Uniclass | |
CAWS | C40/352 Steam cleaning equipment C40/352 Steam cleaning equipment |
Specification data - Masonry cleaning systems
Cleaning operations | |
Cleaning | Steam.Guidance for specification option: High-temperature steam. |
Weight | 210 kg. Manufacturer guidanceMass weight. |
Dimensions | 1100 x 600 x 900 mm. Manufacturer guidanceLength x width x height. |
Flow rate | 7–11 L/min. |
Maximum temperature | 150℃. |
Pressure | 20–150 bar. Manufacturer guidancePump pressure. |
Noise | 95.4 dB (maximum). |
Ingress protection (IP) rating | 23. |
Power output | 74 kW. |
Fuel | Diesel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/m² Self declared |
Recyclability | Can be broken down into parts, recycled individually or sold on. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Literature
DOFF Skid Mount Info Sheet
