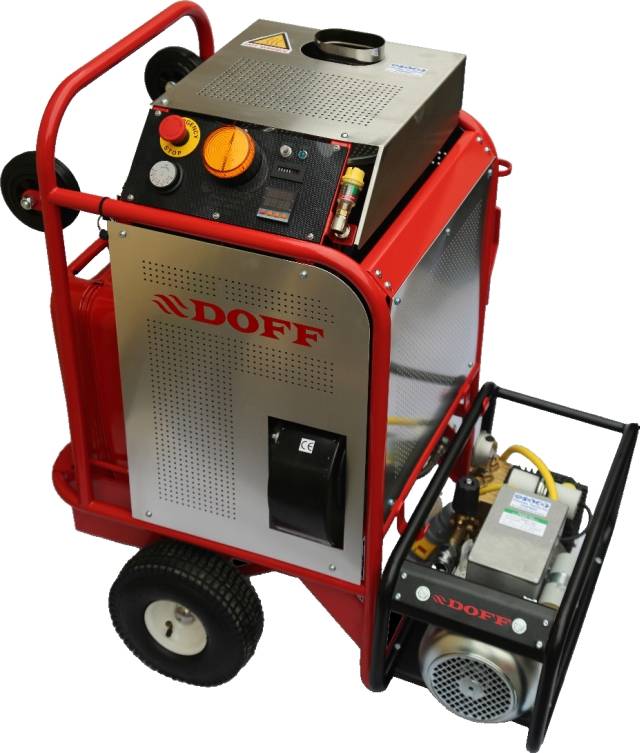

DOFF Super Heated Steam Cleaning System

Verified by manufacturer 6 months ago

Stonehealth Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

High temperature steam-based cleaning system with nozzle temperature up to 150°C.

Jump to:
+44 (0)1453 540600 Website

Application

Can be used on the following surface types/ areas:

  • Brick;
  • Stone;
  • Concrete;
  • Tiles (glazed and encaustic);
  • Wood;
  • Faience;
  • Terracotta;
  • Can be used as a sterilization tool for kitchens, toilets, swimming pools, hospitals and factories.


Suitable for removing:

  • Paint coatings (most oil and plastic types);
  • Certain types of graffiti;
  • Bird or vermin fouling;
  • Algae, moss, and fungi;
  • Wax coatings;
  • Chewing gum;
  • Bitumen, oil or grease.

Description

High temperature steam cleaning system with nozzle temperature reaching over 150°C. Doff ancillary products such as the Doff Recovery System (DRS) extracts vapour and collects the debris and used water, separately. The Carbon Fibre Doff Extension Pole is adjustable up to 5.3 metres (18 ft) long so enabling work to be completed off the floor with many facades, negating the need for scaffold or platform equipment. The Doff Power Unit (DPU) combines the pump with a generator to run off-grid.


Suitable for use in removing paint, biological matter and general dirt and grime without causing harm or thermal shock to the substrate. The product can be used in building restoration, industry, food production, hygiene control, hospitals, factories, transport and vehicle depots, and workshops.


Features and benefits:

  • Superheated water system.
  • Nozzle temperatures up to 150°C (heated through a hot-box).
  • Surface pressure and volume of water used are low, so the surface is not saturated and will dry within minutes, preventing any long-term damage as a result of moisture.
  • Temperature and pressure can be varied to facilitate removal of many different types of paint and biological matter.
  • Ease of operation, including improved manoeuvrability, quick release of modular components, digital displays and easy loading.
  • Does not damage or disfigure the substrate.
  • A range of different lances and nozzles are available - consult manufacturer for details.
  • No chemical biocide required during or after the removal process.
  • Pump size: 500 x 282 x 310 mm.
  • Box size: 680 x 630 x 1030 mm.

General information

Color

Red

Silver

Guidance for specification option:

Gunmetal silver.

Finish

Gloss

Material

Metal

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

On major parts; six months on the machine.

Uniclass

Pr_60_60_84_14 Clean steam generatorsPrimary

CAWS

C40/352 Steam cleaning equipment

Specification data - Clean steam generators

Input water temperature

30°C.

Manufacturer guidance

Maximum.

Power supply

110 V, 50 Hz, 30 amp.

110 V, 50 Hz, 6.5 kVA (generator).

115 V, 60 Hz, 30 amp.

115 V, 60 Hz, 6.5 kVA (generator).

230 V, 50 Hz, 13 amp.

Show more

WaterConsumption

3—5 L/minute.

Guidance for specification option:

Clean cold water supply only.

Operating pressure (maximum)

100 bar (1450 psi).

TemperatureRange

30°C–150°C.

Dry weight

123.5 kg.

Guidance for specification option:

When loaded. (Hotbox: 89 kg; pump: 34.5 kg).

Pump

500 x 282 x 310 mm.

Guidance for specification option:

 500 (when loaded: 960) x 282 x 310 mm.

Manufacturer guidance

Pump L x W x T.

Box size

680 x 630 x 1030 mm.

Manufacturer guidance

Hot box.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/m²

Self declared

Recyclability

Can be broken down into parts, recycled individually or sold on.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

%

Guidance for specification option:

All metals recycled.

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015
