NBS Source
Doc.M  Close Coupled Value Plus Pack
Compare variants

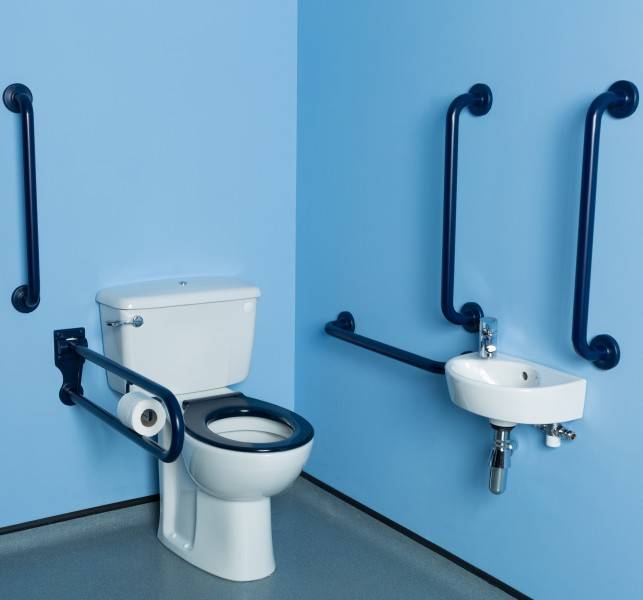

Doc.M Close Coupled Value Plus Pack

PK8255BE: DOC M Close Coupled Value Plus Pack, Left Hand, Concealed Fixings, Blue

Twyford Bathrooms Variant:

Document M pack thermostatically protected via external blending valve.

Jump to:
+44 (0) 1926 516 800 www.twyfordbathrooms.com

Application

Offices, shops, factories, educational buildings or any premises to which the public is admitted.

Description

A left hand package of fittings and support rails for use in disabled toilet accommodation designed to comply with Building Regulations Approved Document M.


Features and benefits:

  • Grab rails and seats available in three colours.
  • Left and right hand transfer available.


Components:

  • Avalon HO pan.
  • Doc.M Value cistern, fittings and standard lever.
  • Avalon seat ring, stainless steel bar hinge, top fix and stability buffers.
  • Alcona 360 hand rinse basin, one tap hole.
  • Sequential lever action mixer tap with flexi tails.
  • Mixing valve - Thermostatic TMV3 (SF1037XX).
  • Four 600 mm grab rails with concealed fixings.
  • One 450 mm grab rail with concealed fixings.
  • One hinged support rail and toilet roll holder with concealed fixings.
  • Pan fixings, cistern cover clip.
  • Grid waste.

General information

Color

Blue

White

Grey

Material

Aluminium

Vitreous china

Steel

Uniclass

Pr_40_20_60_02 Accessible WC equipment packagesPrimary

CAWS

N13/12 Unisex accessible WC equipment packages (Document M)

N13/311 Unisex accessible WC equipment packages (Document M)

Specification data - Accessible WC equipment packages Enhanced data

Standards

In accordance with Approved Document M.

Type approval certificate

WRAS Approved, TMV3 Approved.

Form

Complete accessible WC Doc M package and fittings.

Arrangement

Close coupled pack.

Transfer handing

Left hand.

Material and colour

-

WC pans

Avalon HO pan, vitreous china, white.

WC cisterns

Doc.M value cistern, fittings and standard lever - 6 L flush.

WC seats

Avalon seat ring, stainless steel bar hinge, top fix and stability buffers, blue (RAL 5011).

Wash basins

-

Material

Alcona 360 Handrinse basin, one tap hole, vitreous china, white.

Handrails

Four 600 mm grab rails with concealed fixings, one 450 mm grab rail with concealed fixings, one hinged support rail and toilet roll holder with concealed fixings, blue powder-coated aluminium (RAL 5011).

Water supply fittings

Sequential lever action mixer tap with flexi tails.

Thermostatic mixing valve

SF1037XX, 15 mm thermostatic mixing valve.
