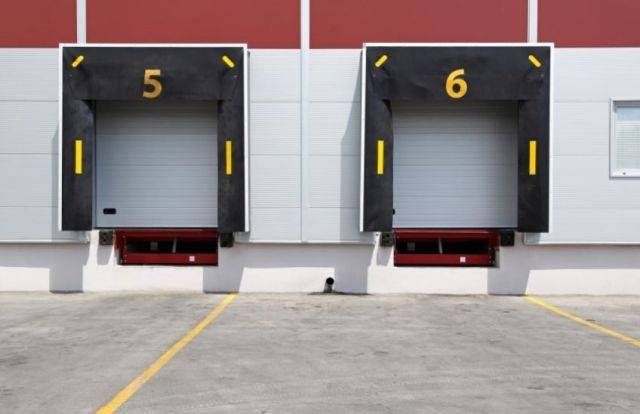

Dock Leveller Dock Plus HDT 8000 Telescopic Dock Leveller

Verified by manufacturer 7 days ago

HAG Ltd. - The Door Specialists Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • AkzoNobel

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Telescopic dock leveller. Compliant with European regulations BS EN 1398.

Jump to:
0800 072 3444 Website

Application

Suitable for safe loading and unloading distribution centres, industrial units, hospitals, retail units. Suitable for high usage.

Description

Telescopic dock leveller, which is hydraulically powered. The leveller rises up to the height of the vehicle and then extends its safety lip horizontally out up to 1000 mm, bridging the gap between loading bay and vehicle.


Features and benefits:

  • Designed for high traffic areas.
  • Includes integral safety prop, integral toe guards and hazard markings to the side edges (a variance of 100 mm is allowed for uneven trailer centres).
  • A hydraulic hose break cartridge is used for smooth operation.
  • Compliant with BS EN 1398.

General information

Color

Silver

Other

Guidance for specification option:

Available in 500 RAL and BS colours.

Finish

Galvanized

Guidance for specification option:

Standard.

Powder-coated

Guidance for specification option:

Polyester powder-coated (PPC), available on request.

Material

Carbon steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_65_80_23_39 Hydraulic telescopic-lip dock levellersPrimary

CAWS

L20/617 Loading bay door and docking system

Product range

Dock Levellers

Specification data - Hydraulic telescopic-lip dock levellers

Standard

To BS EN 1398.

Platform size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Gradient length

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Single axle load capacity

6000–9000 kg.

Guidance for specification option:

Dependent on size specified.

Finish

Galvanized.

Guidance for specification option:

Standard.

Polyester powder-coated (PPC), colour.

Guidance for specification option:

500 RAL and BS colours, available on request.

Buffers

Integral safety prop, integral toe guards.

Operation

415 V, three-phase, earthed motor unit; IP55 control unit.

Guidance for specification option:

  • Dependent on size, the motor unit rating will be between 0.75–1.1 kW, and will require 415 V, three-phase and earth.
  • The IP55 control unit is wall mounted with a transformer at 24 V.

Format

Free-standing.

Suspended frame.

Concrete encased.

Manufacturer guidance

Construction:

  • Deck: 8–10 mm chequer plate (dependent on overall size of the dock leveller).
  • Safety lip: 12.5 mm durbar plate, with a 250 mm leading edge. Steel supports are welded to the underside for reinforcement.
  • Base frame: Carbon steel sections.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

50

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

10 %
