DOC M Packs 5, 7 & 8
Verified by manufacturer 5 months ago
Standard Close-Coupled Doc M Pack – TMV3 (pack 5)
Standard Close-Coupled Doc M Pack – TMV3 (pack 5)
A range of Doc M washroom equipment packages.
Application
For accessible washroom applications.
Description
A range of Doc M washroom equipment packages.

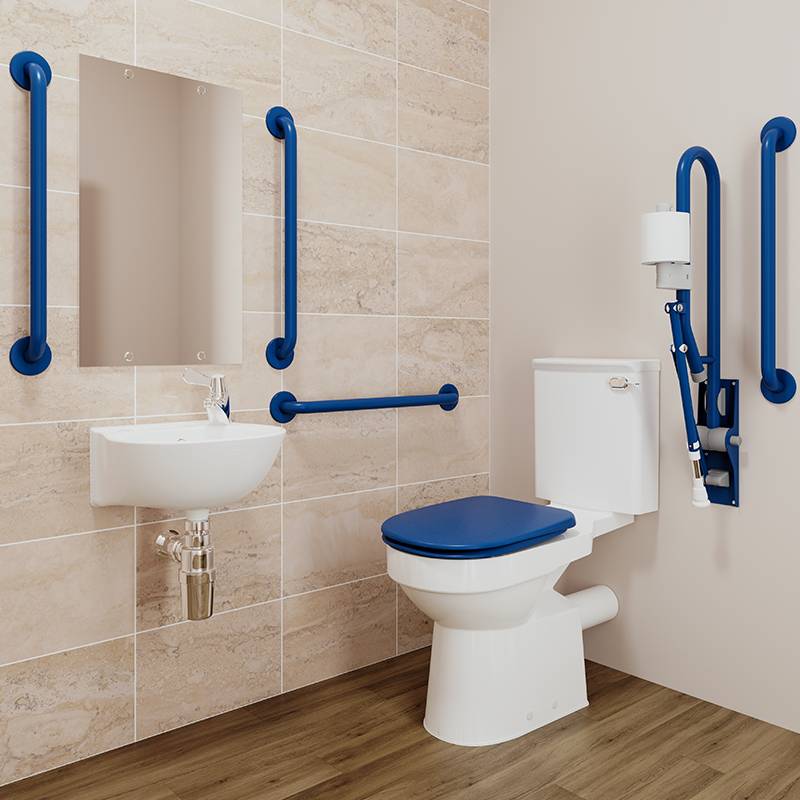

The Standard Close-Coupled Doc M Pack – TMV3 (pack 5) is comprised of a close-coupled WC with lever flush and 750 mm projection, a finger rinse wash basin with thermostatic mixer tap, and a selection of coated/ fluted grab rails.

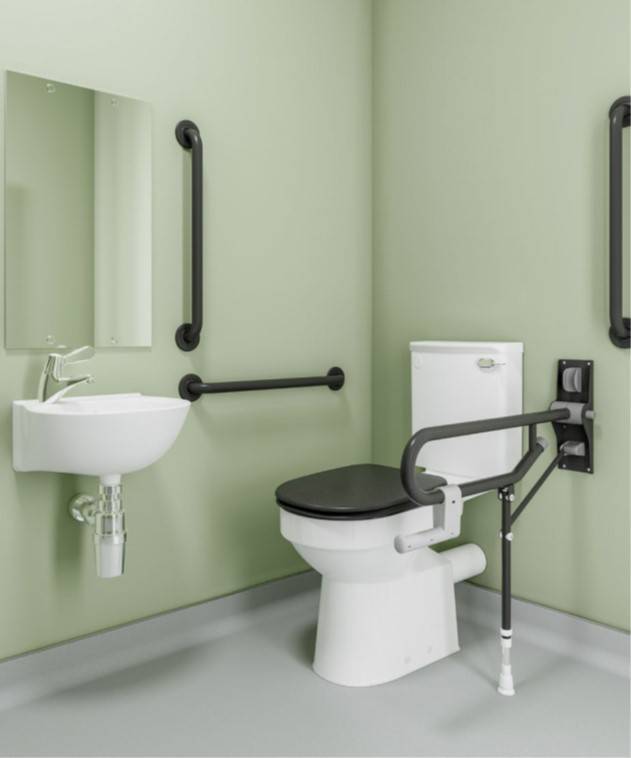

The Contemporary Close-Coupled Doc M Pack (pack 7) includes a close-coupled WC with lever flush, finger rinse wash basin with monobloc mixer tap, and a selection of
stainless steel grab rails.
The Contemporary Low-Level Doc M Pack (pack 8) includes a low-level WC with lever flush, finger rinse wash basin with monobloc mixer tap, and a selection of stainless steel grab rails.
Features and benefits:
- WRAS-approved cistern fittings.
- Lifetime guarantee for sanitaryware (ceramic), toilet seats, brassware and grab rails.
- Ten-year warranty for flush fittings and fold-up rails.
- Grab rails able to support up to 30 st (200 kg).
General information
Color | Blue White Grey |
Finish | Coated |
Material | Plastic Vitreous china Stainless steel PVC-U |
Shape | Other |
Warranty description | Ten year Guidance for specification option: Flush fittings and fold-up rails. Lifetime Guidance for specification option: Sanitaryware (ceramic), toilet seats, brassware and grab rails. |
Uniclass | |
CAWS | N13/12 Unisex accessible WC equipment packages (Document M) N13/311 Unisex accessible WC equipment packages (Document M) |
SKU Code | 28314FBU, 28314FWH, 28314FDB, 28314FMG, 28314SWH, 28314SDB, 28314SMG |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Form | Complete accessible WC Doc M package and fittings. |
Arrangement | Close-coupled pack. Guidance for specification option: Navlin Doc M raised-height, rimless toilet pan with 750 mm projection and water-saving, close-coupled cistern with spatula lever flush and screw-down lid. |
Transfer handing | Left-hand. Right-hand. |
Material and colour | |
WC seats | Plastics, blue. Plastics, white. Plastics, dark blue. Plastics, mid grey. Manufacturer guidanceErgonomic toilet seat with lid, soft-close hinges and seat lugs. |
Handrails | Blue PVC-U, fluted. White PVC-U, fluted. Dark blue PVC-U, fluted. Mid grey PVC-U, fluted. White coated stainless steel. Dark blue coated stainless steel. Mid-grey coated stainless steel. Manufacturer guidance4 no. 600 mm straight grab rails, 1 no. 450 mm straight grab rail, and 1 no. fold-up rail with adjustable leg and optional toilet roll holder. |
Water supply fittings | Lever-operated thermostatic mixer tap. |
Sustainability data
Material | Plastic Vitreous china Stainless steel PVC-U |
