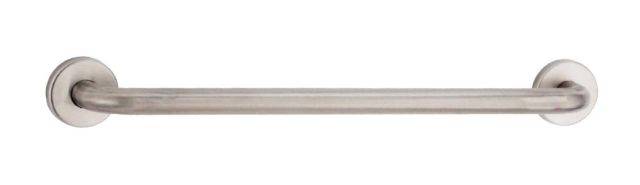

Stainless steel grab bar with snap flange.
32 mm (1¼") diameter, grade 1.4301 (304) stainless steel grab bar with snap flange covers.
Grab bar: Grade 1.4301 (304), 18-gauge (1.2 mm-thick) stainless steel tubing with re-applied finish. Ends are heliarc-welded to concealed mounting flanges. Clearance between the grab bar and wall should be 57 mm
Concealed mounting flanges: Grade 1.4301 (304), 11-gauge (3 mm-thick) stainless steel plate; end flanges 80 mm diameter with six holes for wall attachment
Snap flange covers: Grade 1.4301 (304), 22-gauge (0.8 mm-thick) drawn stainless steel with a satin finish. 83 mm diameter x 16 mm deep. Covers snap over mounting flanges to conceal screws
N13/311 Unisex accessible WC equipment packages (Document M)
N13/436 Handrails and grab bars
Doc M Grab Bar, 600 mm, 819441.UK
Anchor device, 2583
For 19–25 mm (3/4–1") panel. One anchor is required for each flange.
Anchor device, 2586
For 13 mm (1/2–1") panel. One anchor is required for each flange.
Grab bar fastener, 251-4
Consists of 10–32 x 5/16'' round-head, Phillips 18/8 stainless steel screws and one WingIt grab bar fastener.
Mounting kit, 252-30
Consists of three 14 x 2½'' grade 1.4301 (304) stainless steel, Phillips round-head, sheet-metal screws.
Standard product features
˃ 113 kg.
